DJI O4 Ground Station

DJI O4 Ground Station Australia — Buy from an Official DJI Authorised Retailer

The DJI O4 Ground Station is DJI's wide-area O4 Enterprise transmission hub for Dock 3, Matrice and FlyCart fleets — Gateway Mode into FlightHub 2 plus Relay Mode for offline reach. D1 Store is Australia's first and only DJI Authorised Retail Store, so every unit sold here is genuine DJI stock with local support and Price Match.

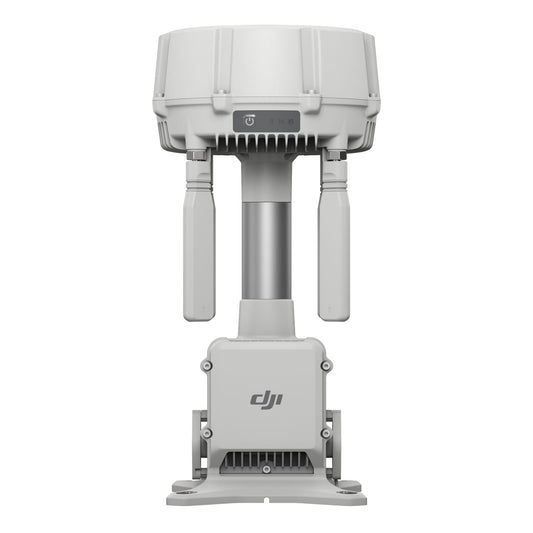

What is the DJI O4 Ground Station?

O4 Ground Station uses a 12-antenna array with automatic multi-band selection to push reliable control and video across urban clutter, valleys and remote corridors. Mount it permanently with PoE, pair it with Dock 3 for unattended coverage, and optionally add cellular via DJI Cellular Dongle 2. Always confirm Australian RF approvals for your site before install.

DJI O4 Ground Station key specs at a glance

Spec Detail Transmission system DJI O4 Enterprise Enhanced Antenna array 12 antennas (4 external + 8 internal directional); Sub-2 GHz / 2.4 / 5.2 / 5.8 GHz class bands Modes Gateway Mode (FlightHub 2); Relay Mode (offline RF) Max range (lab, IC) Up to 40 km Matrice 400; up to 30 km other supported aircraft (unobstructed) Dock 3 Gateway coverage Up to ~30 km class extension when networked to FlightHub 2 (conditions apply) GNSS Multi-constellation receiver with network RTK calibration support Protection IP67; IK07; Ethernet surge protection to EN/IEC 61643-21 Category C Power PoE (Type 2–4); typical Gateway ~17.1 W; low-power ~7 W; max with heating 65 W Backup battery 3250 mAh / 23.4 Wh — ~45 min Gateway / ~30 min Relay after PoE loss Size / weight 170 × 170 × 352 mm; 2.68 kg Operating temperature −40° to 55°C with suitable PoE++ supply

DJI O4 Ground Station price in Australia

D1 Store stocks the official O4 Ground Station Main Item (current D1 pricing):

Configuration Role Price (AUD) DJI O4 Ground Station Wide-area Gateway / Relay hub $3,570.00

Found it cheaper elsewhere in Australia? D1 Store offers Price Match on genuine local stock.

Which O4 Ground Station deployment should you choose?

• Gateway + FlightHub 2 — Ethernet or cellular backhaul into cloud or on-prem FlightHub for Virtual Cockpit and multi-site video.
• Relay + Dock 3 / Matrice — elevate the station for valleys, clutter and RF-shadowed corridors when the aircraft must stay linked offline.

Combine with DJI Dock 3, D-RTK 3 and FlightHub 2 for a full unattended stack.

Why buy the DJI O4 Ground Station from D1 Store?

• Australia's first and only DJI Authorised Retail Store — genuine DJI stock, not grey import
• Local Melbourne-based support team and phone line: (03) 9288 7882
• Same-day DJI Care Refresh / Care Enterprise support where eligible, with local replacement pathways
• Price Match on local competitor pricing
• Physical stores across Australia plus fast nationwide delivery, free over $199

Frequently Asked Questions

How much does the DJI O4 Ground Station cost in Australia?

At D1 Store, the DJI O4 Ground Station is $3,570.00. Price includes GST and may change with DJI promotions. Confirm live stock and Australian frequency compliance before deployment.

What is Gateway Mode vs Relay Mode?

Gateway Mode links the ground station to FlightHub 2 over Ethernet or cellular for wide-area video and Virtual Cockpit. Relay Mode extends offline RF reach between aircraft, remote controllers and Dock 3 when the backhaul network is weak or absent.

How far can O4 Ground Station transmit?

Under IC test conditions DJI quotes up to 40 km between Matrice 400 and the ground station (Relay Mode) and up to 30 km for other supported aircraft, unobstructed and interference-free. Australian permitted bands and real-world range will be lower — confirm locally.

Is O4 Ground Station weatherproof?

Yes. It is rated IP67 and IK07, with fanless passive cooling, self-recovery and an operating range down to −40°C when powered by suitable PoE++ supplies.

Does D1 Store price match the O4 Ground Station?

Yes. D1 Store offers a Price Match guarantee against other Australian retailers selling genuine DJI stock.

Is D1 Store an authorised DJI retailer?

Yes. D1 Store is Australia's first and only DJI Authorised Retail Store, so every O4 Ground Station sold here is genuine and supported locally.
