Overview

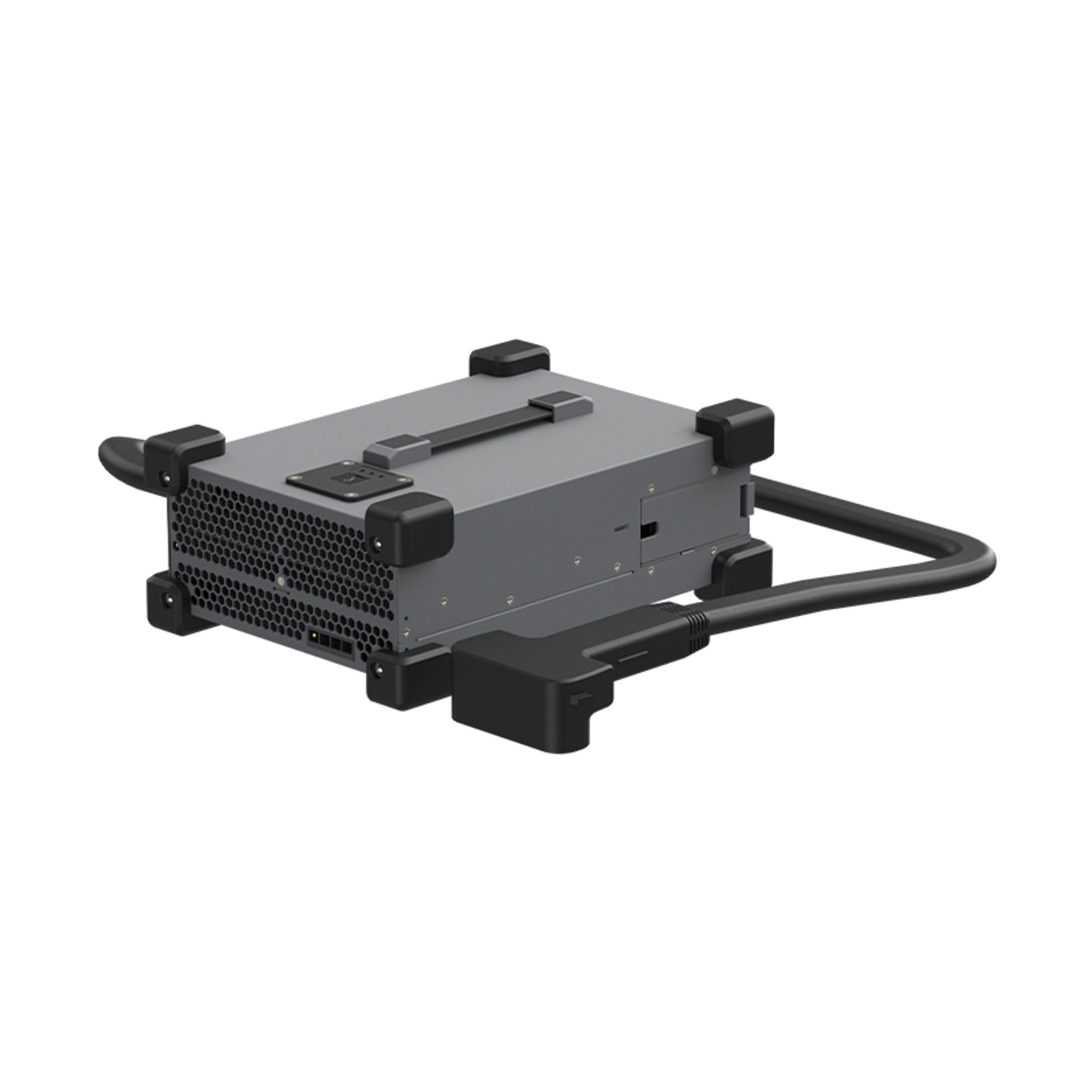

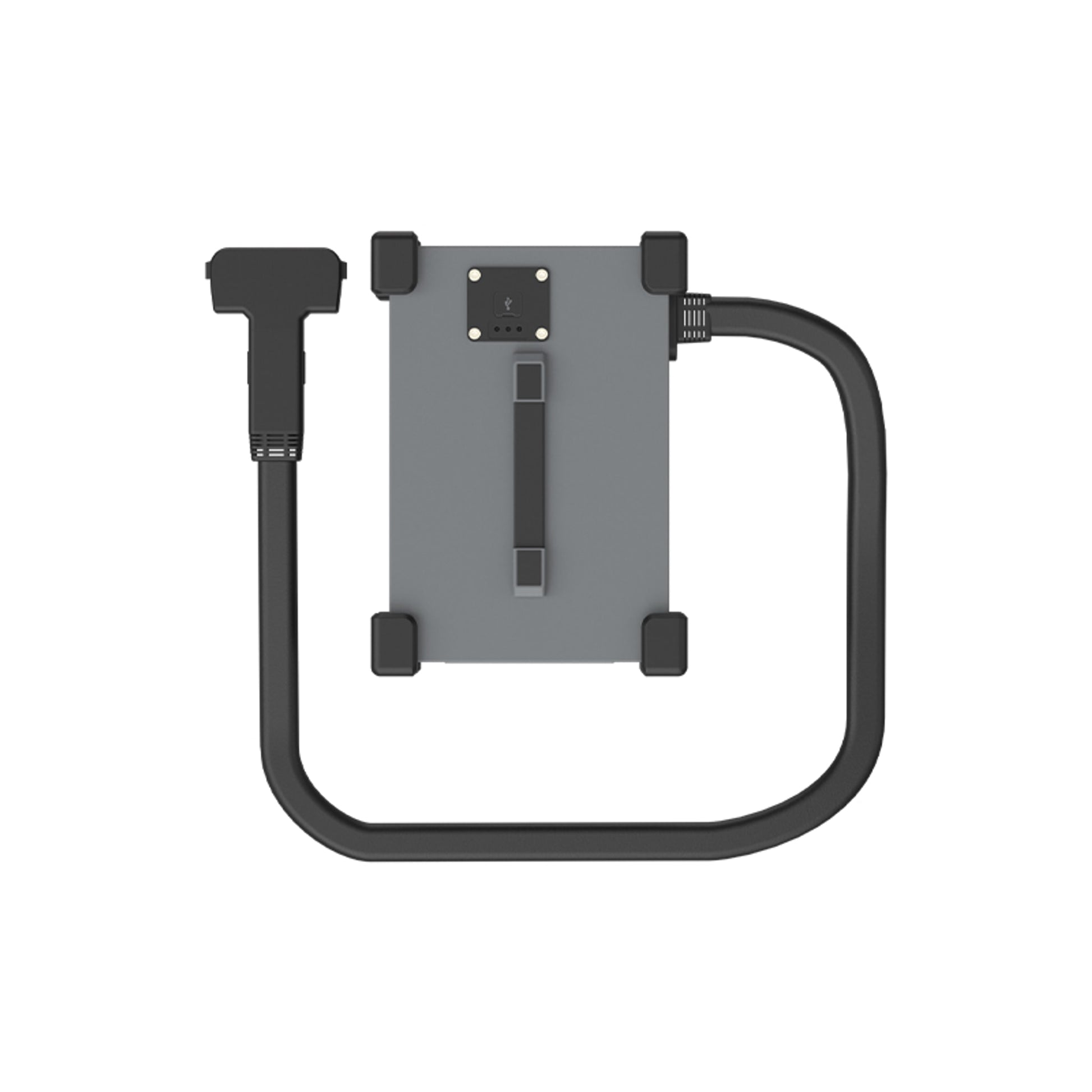

The C10000 Intelligent Power Supply offers both fast and slow charging for compatible DJI AGRAS Intelligent Flight Batteries. With built-in diagnostics, smart charging adjustment, and robust protection features, it delivers safe and efficient power management in the field.
Highlights
- Charging Adjustment for continuous power delivery
- Built-in Diagnostics with LED status indicators
- Comprehensive Protection for overcurrent and overheating safeguards
Specifications
| Dimensions | 400 x 266 x 120 mm |
|---|---|
| Weight | Approx. 11.4 kg |
| Input/Output | Input (Main): 220-240 VAC, 50/60 Hz, 24 A MAX Input (Auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX Input (Main): 100-120 VAC, 50/60 Hz, 16 A MAX Input (Auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX |
| Charging Time | Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery) |
| Protection Functions | Over-voltage, over-charge, under-voltage and over-temperature protection. |
| Charging Safety | AC wire protection, power wire protection, and charge connector protection. |
