Guizhou alpine forestry operation
Sprayed 42 ha of spruce and fir at 2,850 to 3,120 m on 38 degree slopes; RTK Fix above 99%, under 30 cm swath overlap, 41% faster than the same block with a T40.
Reference: Published case study
Authorised DJI Retailer
Official Stock
30-Day Returns*
100% Confidence
Secure Checkout
SSL Encrypted
Why Buy from D1 Store Try It In Store Same-Day Care Refresh Claims 70% Faster Repairs Up to 2 Years Warranty Price Match Guarantee DJI Specialists in Store
- Try It In Store Try it with a D1 Product Specialist. Same-day pickup when in stock.
- Same-Day Care Refresh Claims Buy it here and claim in-store the same day, instead of waiting 2–3 weeks.
- 70% Faster Repairs About 70% faster than the usual 2–3 week turnaround. Assessment is free.
- Up to 2 Years Warranty Products purchased from D1 Store include up to 2 years warranty*
- Price Match Guarantee Submit a price match and we match Authorised Australian Retail with the Best Price.
- DJI Specialists in Store Stores, D1 Product Specialists, and an in-house repair desk.

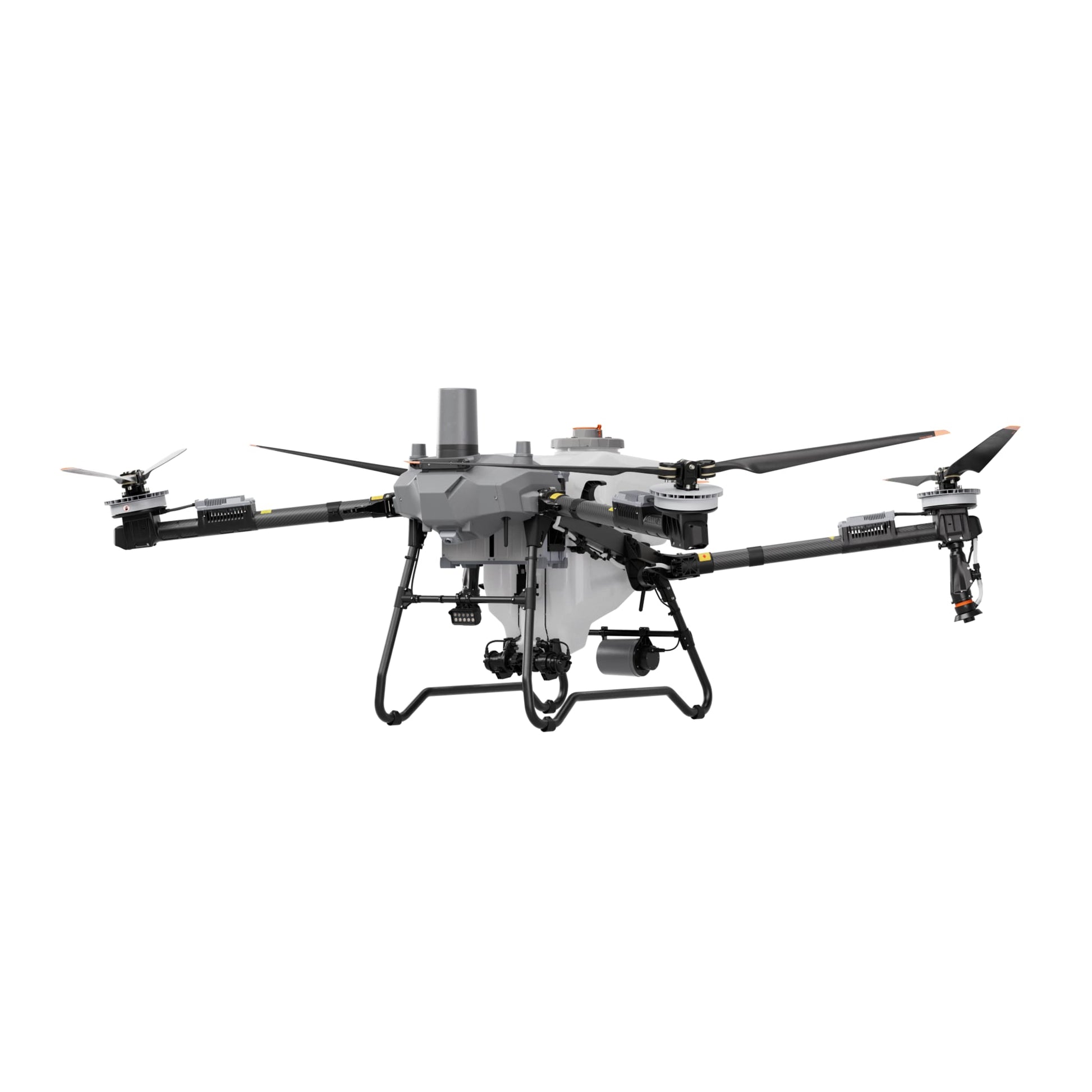

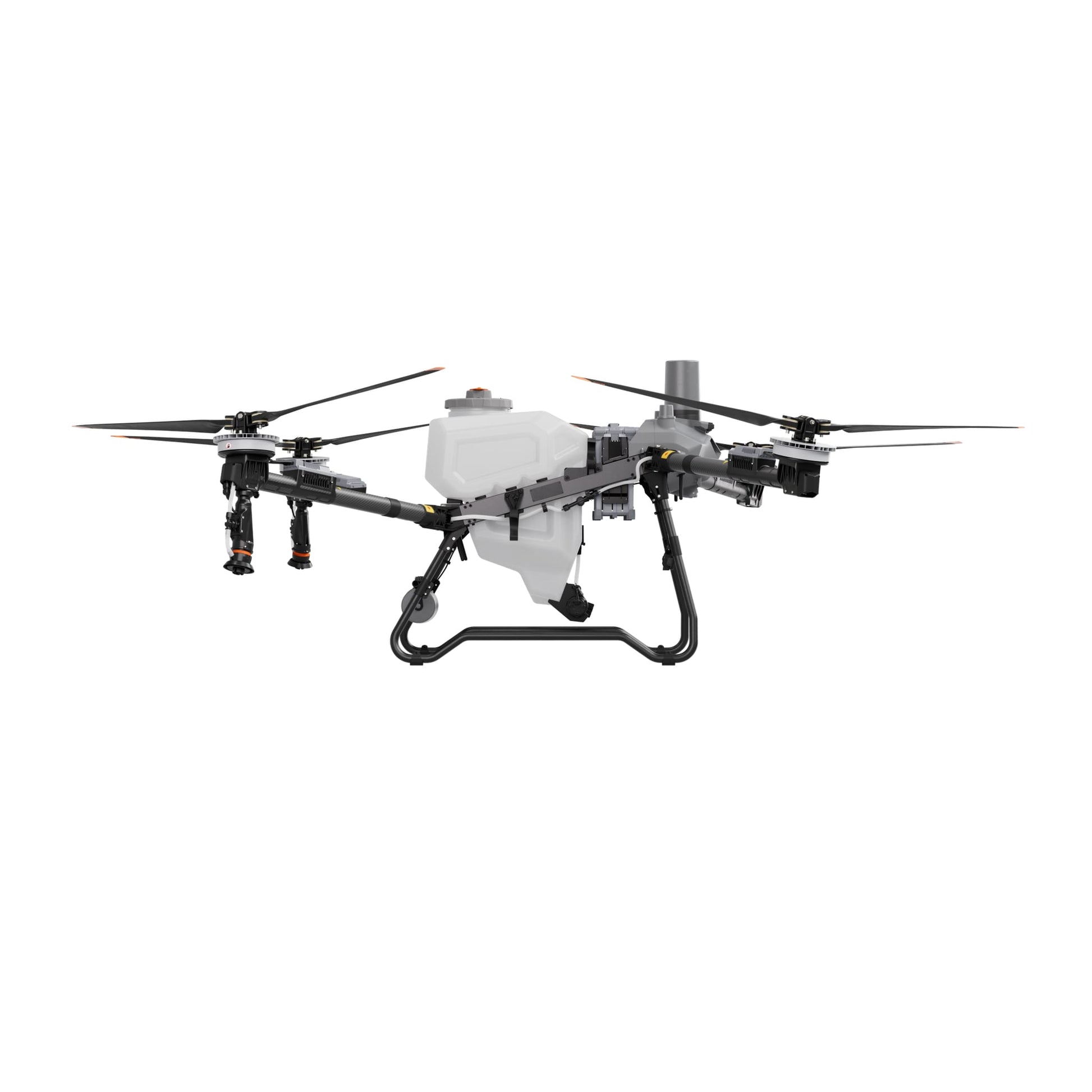

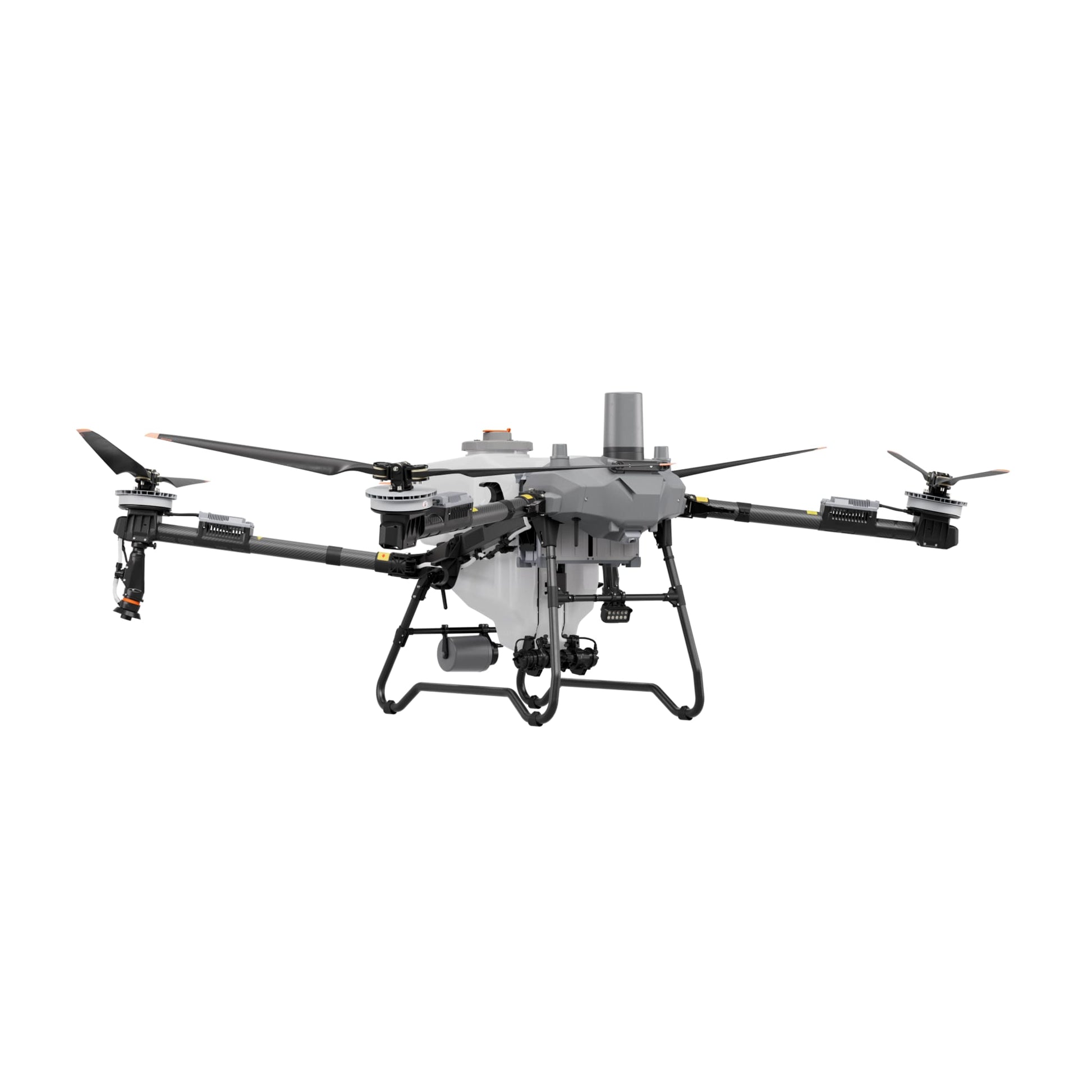

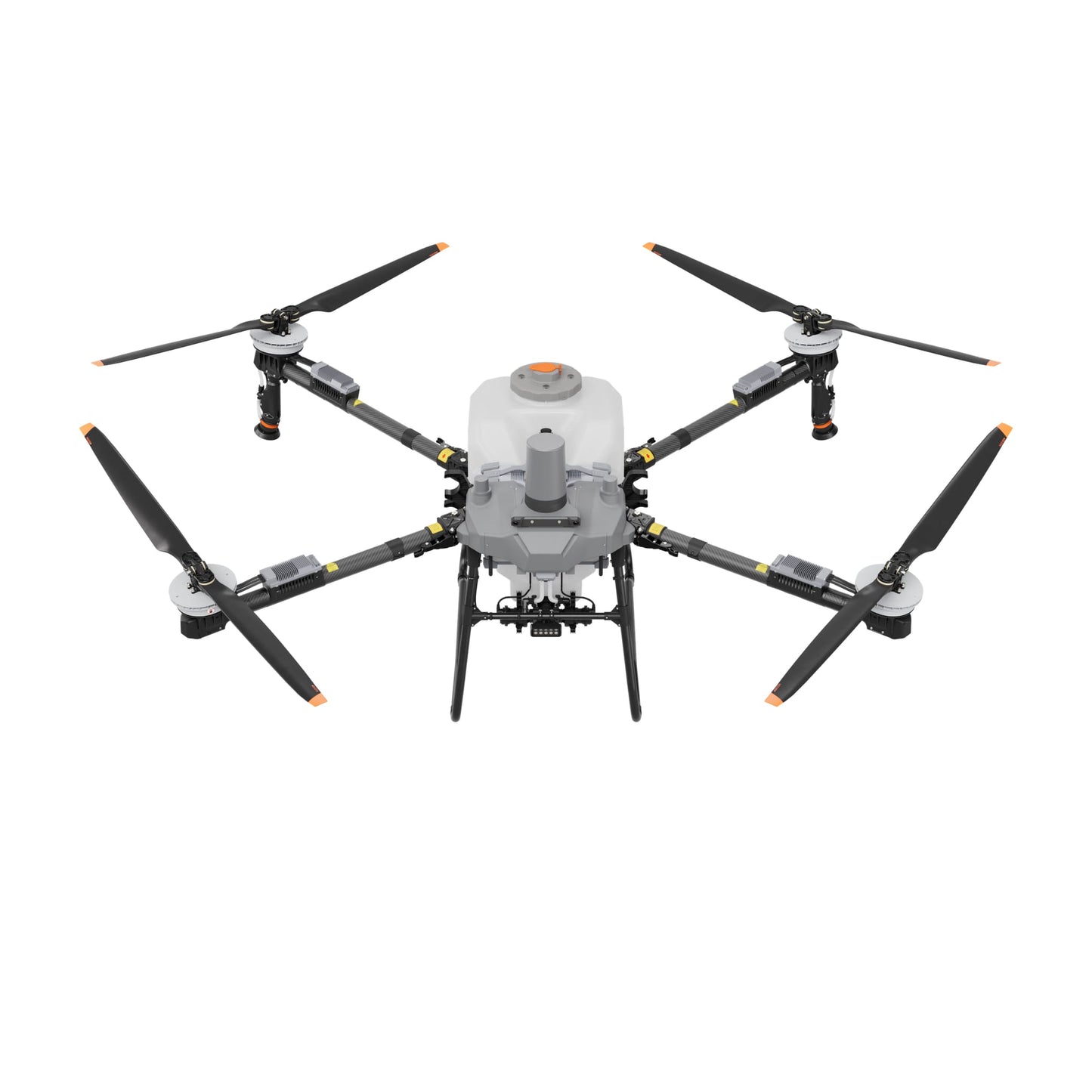

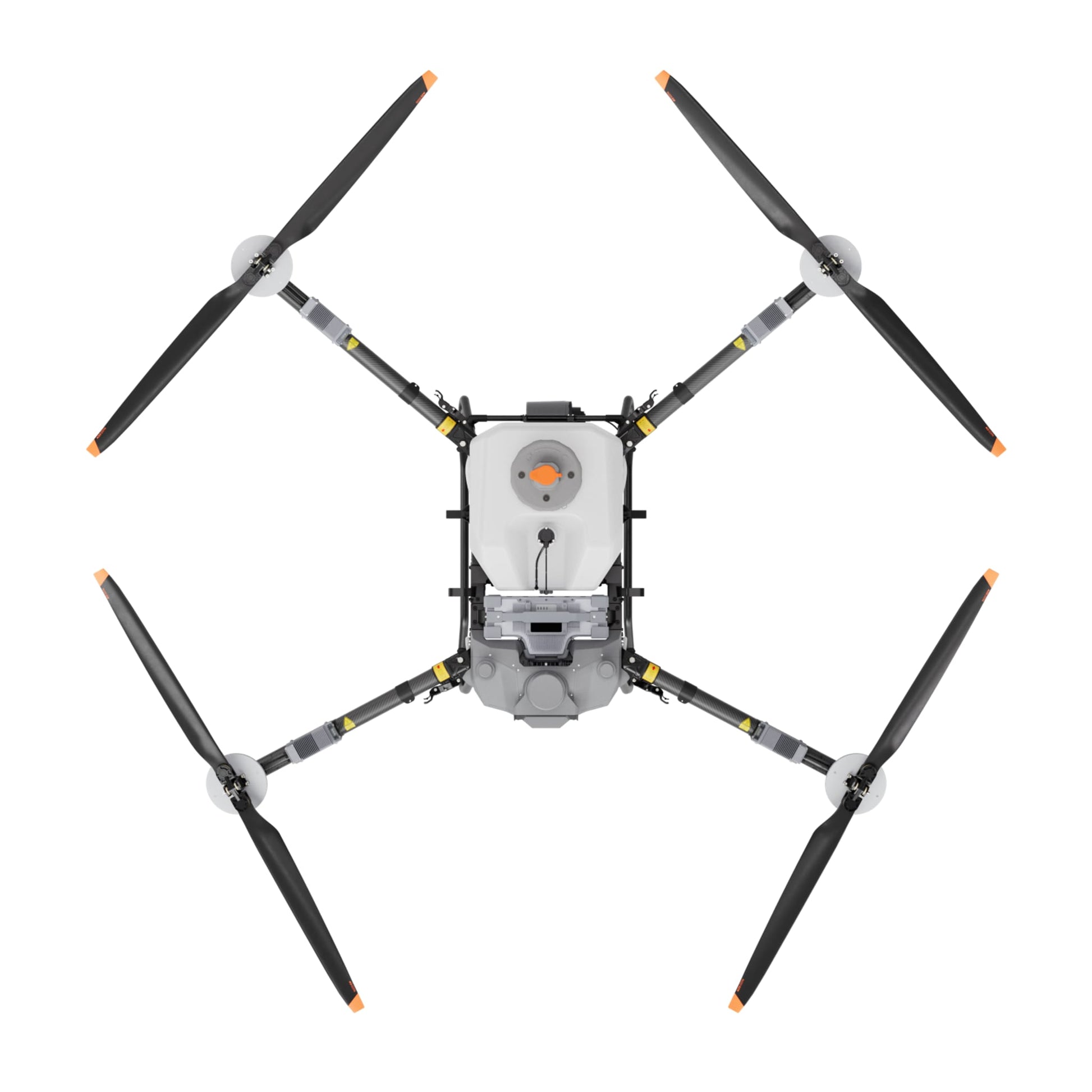

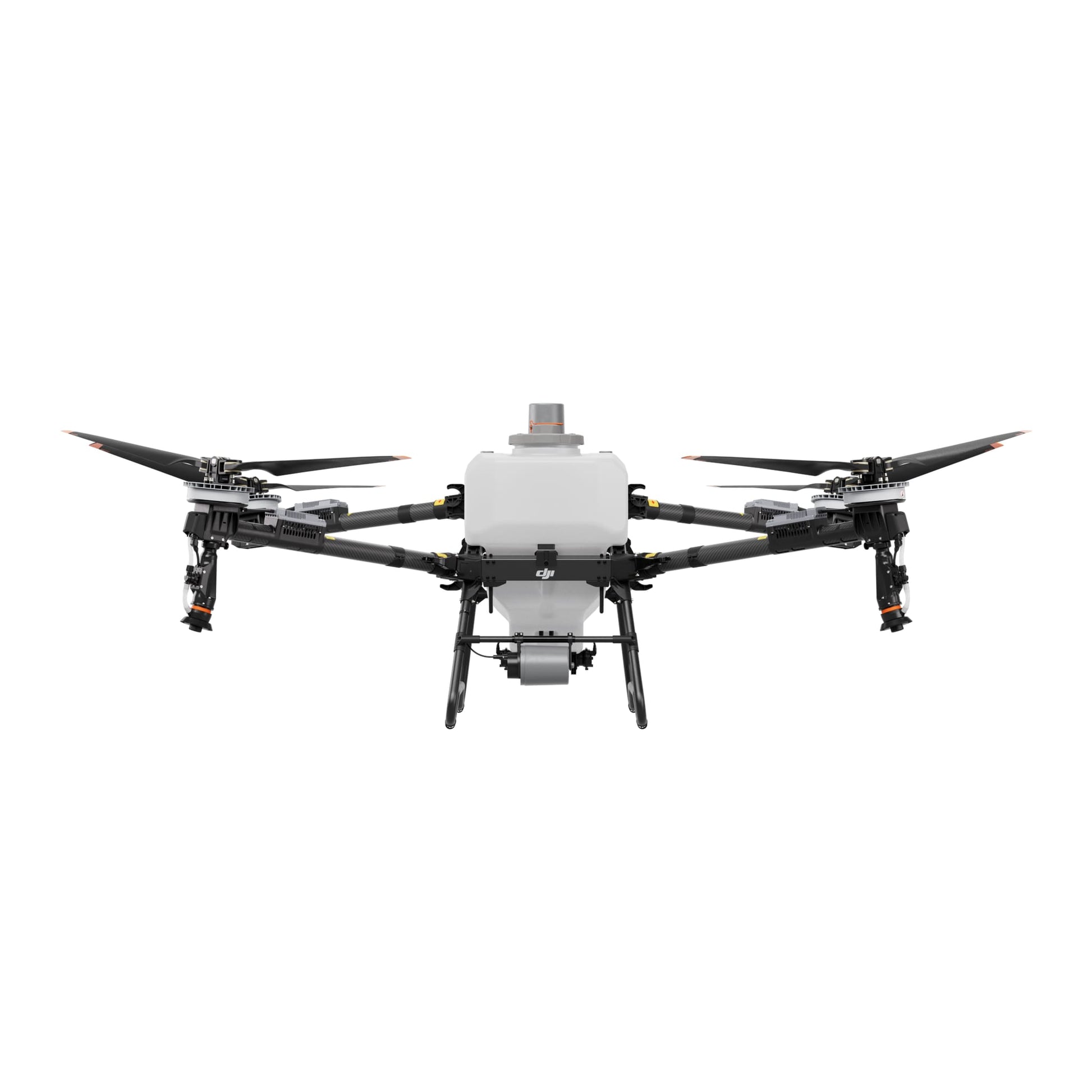

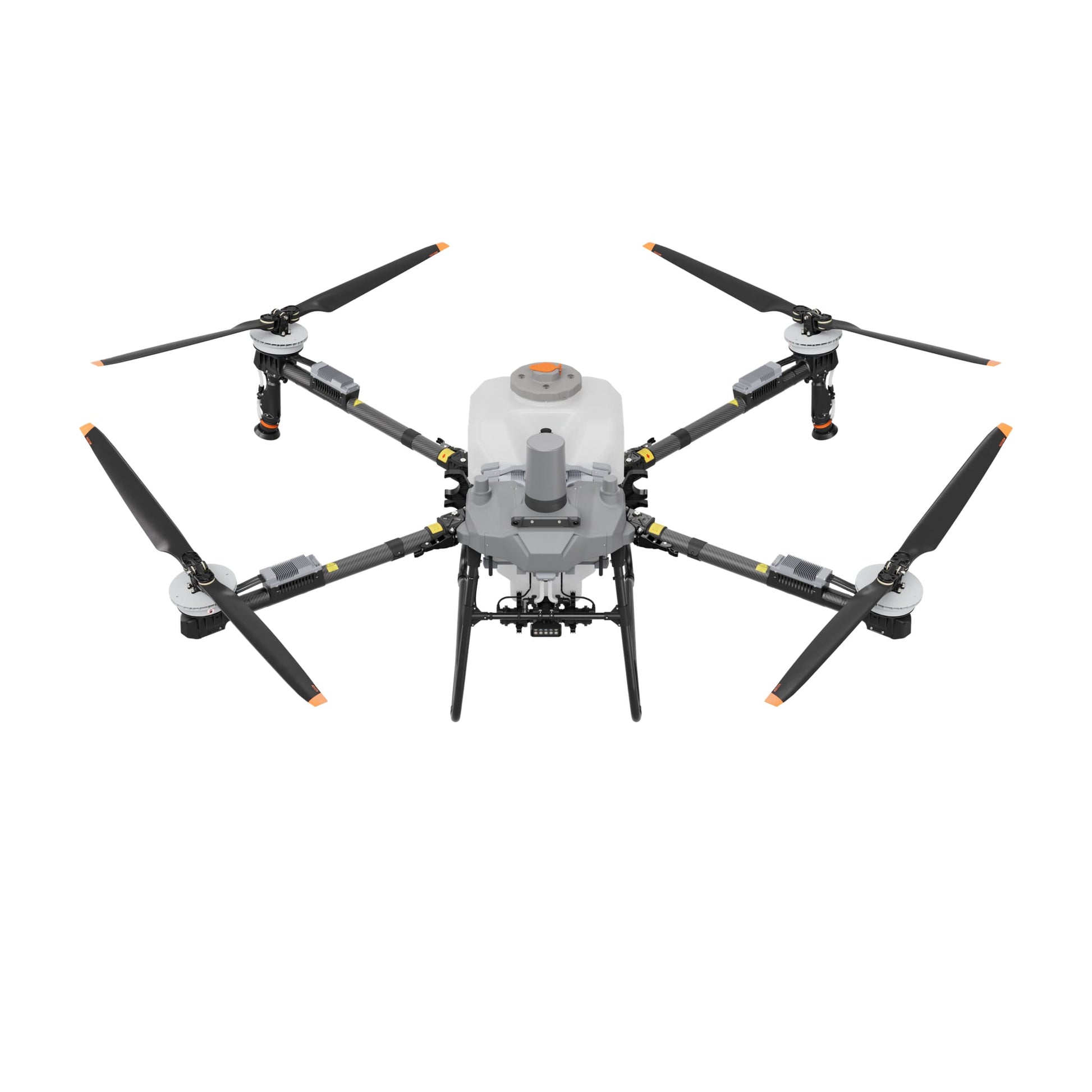

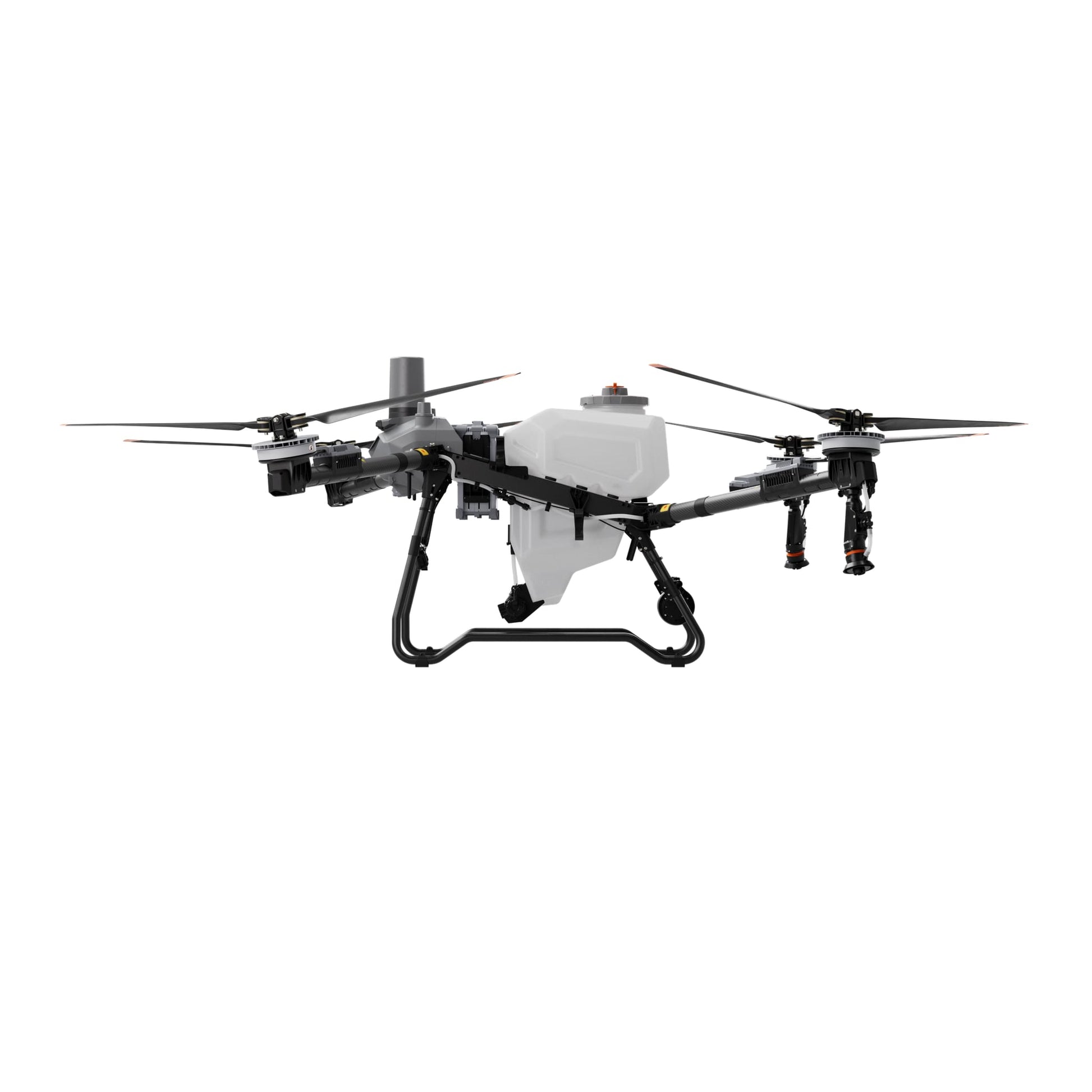

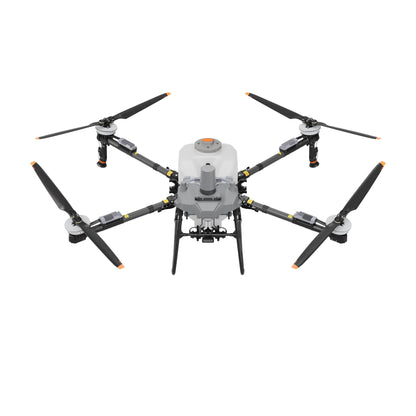

DJI AGRAS T70P
DJI AGRAS T70P has a 70 L spray tank, a 100 L spread hopper, and a 65 kg lift hook for crop protection, topdressing, and on-farm transport.
Backed by D1 Enterprise, Australia's key DJI Enterprise Dealer. Product demos, trials, training, and lifetime support.
70 L
Spray Tank
100 L
Spread Tank
65 kg
Lift Capacity
40 L/min
Max Spray Flow
20 m/s
Max Op. Speed
0-40 C
Operating Temp
Mid-Size Agricultural Airframe, Spray-Spread-Lift Platform.
DJI AGRAS T70P is a mid-size agricultural drone with a 70 L spray tank, a 100 L spread hopper, and a 65 kg lift hook for crop protection, topdressing, and on-farm transport. The spray tank carries a 70 kg operating payload at up to 40 L/min.
The 70 L spray tank feeds two magnetic-drive impeller pumps at up to 40 L/min. Spreading System 4.0 fits a 100 L hopper at up to 400 kg/min. The lifting system carries 65 kg on a 10 m cable. Safety System 3.0 pairs Tri-Vision with millimetre-wave radar. Together, these systems let one aircraft switch between spraying, spreading, and on-farm lifting as the job changes.
- 70 L Spray Tank
- Up to 40 L/min Spray Flow
- 100 L Spread Hopper
- 65 kg Lift Hook
- Tri-Vision and mmWave Radar
Spray. Spread. Lift.
Spray
Cover crops with a 70 L tank and a 70 kg payload. Two sprinklers deliver 30 L/min, four deliver 40 L/min.
Spread
Topdress with a 100 L hopper and a 70 kg load. Compound fertiliser discharges at up to 400 kg/min.
Lift
Move 65 kg on the hook for orchard and on-farm transport. A 10 m cable is standard.
Sensing
Tri-Vision plus millimetre-wave radar for obstacle bypass in orchards and on slopes. AR overlays mark poles and wires.
Propulsion
Four 62-inch carbon-fibre props carry the 70 kg payload at up to 20 m/s across large paddocks.
Field Ops
Plan paddocks and run automatic sorties in the DJI Agriculture App, with smart return-to-home on empty tank.
Fly Four Blades at Twenty Metres a Second.
DJI AGRAS T70P flies four 62-inch carbon-fibre propellers. Motor stator size is 155 × 22 mm at 65 rpm/V. Maximum operation speed is 20 m/s.
Maximum diagonal wheelbase is 2440 mm. Unfolded size is 3200 × 3520 × 960 mm. Maximum configurable flight radius is 2 km. With RTK on, hover accuracy is ±10 cm horizontal and vertical.
- Four 62-Inch Props
- 155 × 22 mm Motors at 65 rpm/V
- 20 m/s Max Operation
- 2440 mm Wheelbase
- 2 km Configurable Radius
- ±10 cm RTK Hover
Hold the Payload the Mission Needs.
DJI AGRAS T70P spraying payload is 70 kg on the 70 L tank. Two magnetic-drive impeller pumps deliver 30 L/min; the four-sprinkler option reaches 40 L/min. Dual-atomisation sprinklers span 50 to 500 μm across a 4 to 11 m spray width.
Spreading System 4.0 holds 100 L and 70 kg, with up to 400 kg/min on compound fertiliser and a 3 to 10 m effective width. The lifting system carries 65 kg on a 10 m cable. Dual-battery spray or lift needs two identical batteries.
- 70 L / 70 kg Spray Tank
- 30 L/min Standard / 40 L/min Four-Sprinkler Flow
- 50 to 500 μm Droplets, 4 to 11 m Spray Width
- 100 L / 70 kg Spreading System
- Up to 400 kg/min Spreading
- 65 kg Lift on a 10 m Cable
Spray tank
70 L / 70 kg. 30 or 40 L/min.
Spreading 4.0
100 L / 70 kg. 400 kg/min.
Standard lift
65 kg. 10 m cable.
Flow metering
Dual-channel electromagnetic meter.
Work Through Zero to Forty in Light Wind.
DJI AGRAS T70P operating temperature is 0 to 40 C for the airframe, spray, lift, and safety stack. Maximum wind resistance is under 6 m/s. No aircraft IP rating is published.
The airframe completed 700 hours of reliability testing, including real-flight ageing, accelerated component fatigue, and extreme-temperature runs. Takeoff weight changes with DB1580 or DB2160; the published spray MTOW tops out at 130 kg with four nozzles on DB2160.
- 0 to 40 C
- Under 6 m/s Wind
- 700-Hour Reliability Test
- Max Spray MTOW 130 kg
See Poles and Wires Before You Hit Them.
DJI AGRAS T70P Safety System 3.0 pairs a Tri-Vision array with millimetre-wave radar and a night-vision colour FPV camera. Front radar FOV is 360 degrees horizontal. Tri-Vision FOV is 90 degrees horizontal and 180 degrees vertical.
Measurement range is up to 60 m. Effective obstacle-avoidance speed is up to 13.8 m/s above 1.5 m, with a 2.5 m stop distance. The system adds 360 degree horizontal and upward avoidance, plus steep-slope terrain following without a mapping pass. AR overlays mark poles, vehicles, and remembered obstacles.
- Tri-Vision and Millimetre-Wave Radar
- 360° Front Radar FOV
- 90° × 180° Tri-Vision FOV
- Up to 60 m Range
- Up to 13.8 m/s Avoidance
- 2.5 m Stop Distance
See DJI AGRAS T70P at Work
DJI AGRAS T70P on a spray, spread, and lift airframe.
Overview
DJI AGRAS T70P on a spray, spread, and lift airframe.
Hold the Link Across Remote Paddocks.
DJI AGRAS T70P uses DJI O4 video transmission on the published agriculture spec. Pair it with the optional O4 Relay when terrain or structures get in the way of the controller.
The optional O4 Relay is IP55, with 4 km CE / MIC / KCC and 8 km FCC in unobstructed, interference-free tests at 2.5 m. Optional D-RTK 3 AG is IP67, with 8 km CE and 15 km FCC.
- O4 Video Transmission
- O4 Relay: IP55, 4 km CE / 8 km FCC
- D-RTK 3 AG: IP67, 8 km CE / 15 km FCC
Plan the Paddock. Fly the Sortie. Map Without a Payload.
DJI AGRAS T70P is flown from DJI RC Plus (TKPL 2): a 7-inch 1920 × 1200 screen at 1400 cd/m². Internal battery runtime is 3.8 hours; the external pack adds 3.2 hours.
The DJI Agriculture App plans fields, runs automatic sorties, and returns home on empty tank or low battery. Mapping covers up to 17 hectares of large fields or 8 hectares of orchards per flight, with reconstruction after landing. Mapping needs RTK and an empty airframe.
- TKPL 2, 7-Inch 1400 cd/m²
- 3.8 h Internal + 3.2 h External Battery
- DJI Agriculture App
- Return-to-Home
- 17 ha Field Mapping
- 8 ha Orchard Mapping
Controller, Positioning, Charging.
DJI RC Plus
Plan and review sorties across the paddocks on a 7-inch 1920 × 1200 screen at 1400 cd/m². 3.8 h internal, 3.2 h external runtime.
Flow Metering
Hold the right rate across the swath with a dual-channel electromagnetic spray flow meter. Solenoid valves cut leak-back so the crew can review coverage.
O4 Relay
Keep the link when terrain blocks the controller so the crew can inspect across remote paddocks. IP55, 4 km CE / 8 km FCC in the published test.
RTK Load Points
Mark load and unload points from the controller and a phone so the crew can route back without rework.
D-RTK 3 AG
Hold centimetre routes for spray and spread. IP67. 8 km CE / 15 km FCC.
Spreading Feeders
Match the granule to the job so the crew can survey the spread pattern. Extra-large standard, with large, medium, and small augers optional.
Agriculture App, RTK & Charging.
D-RTK 3 AG
Optional plug-in centimetre positioning. IP67. Network RTK and PPP modes published.
O4 + Relay
O4 on the airframe. Optional IP55 relay when the link is obstructed.
Ultra-Fast Charging
DB1580 7 to 8 min and DB2160 8 to 9 min from 30% to 95% on D14000iE or C12000. C10000 is 9000 W single-phase.
DJI Agriculture App
Field planning, automatic sorties, smart RTH, and multi-plot operations.
Weighting & Flow
Spreading hopper weighing plus dual-channel electromagnetic spray flow metering.
Enterprise Support & Services.
D1 Enterprise offers a range of services to support your DJI AGRAS T70P fleet, from warranty and maintenance to compliance, consulting, and finance.
DJI Extended Warranty
Additional 1-year warranty beyond standard coverage, with major parts covered by the official warranty.
DJI Official Maintenance
Preventative maintenance programs to keep your fleet performing optimally across every mission.
DJI Official Repairs
Original parts, guaranteed quality, and rapid response from DJI product experts.
UAV Management
Complete fleet management via AVCRM integration, so you track, schedule, and maintain your entire operation.
UAV Compliance & Risk
CASA compliance, ReOC/RePL training, and operational control to keep your program audit-ready.
UAV Consulting
Introduce, grow, and mature internal drone programs with expert guidance at every stage.
D1 Zero Down-Time
Replacement units dispatched during maintenance so your operations keep running.
Optional ServiceD1 Hot-Swap Service
Rapid turnaround for repairs and maintenance, keeping your fleet in the air.
Optional ServiceD1 Trade-Ins
Upgrade your fleet with trade-in value on existing equipment.
D1 Finance & Leasing
Flexible payment options for enterprise fleets to acquire equipment on your terms.
Proof From the Field.
Crop protection, topdressing, and on-farm transport crews put the DJI AGRAS T70P to work. A sourced field story shows the result.
Crop protection
Spreading
Orchard
Lift / transport
Get a Quote
For a product demo or trial of DJI AGRAS T70P, leave your contact details. D1 Enterprise can help specify the right kit.
