Overview

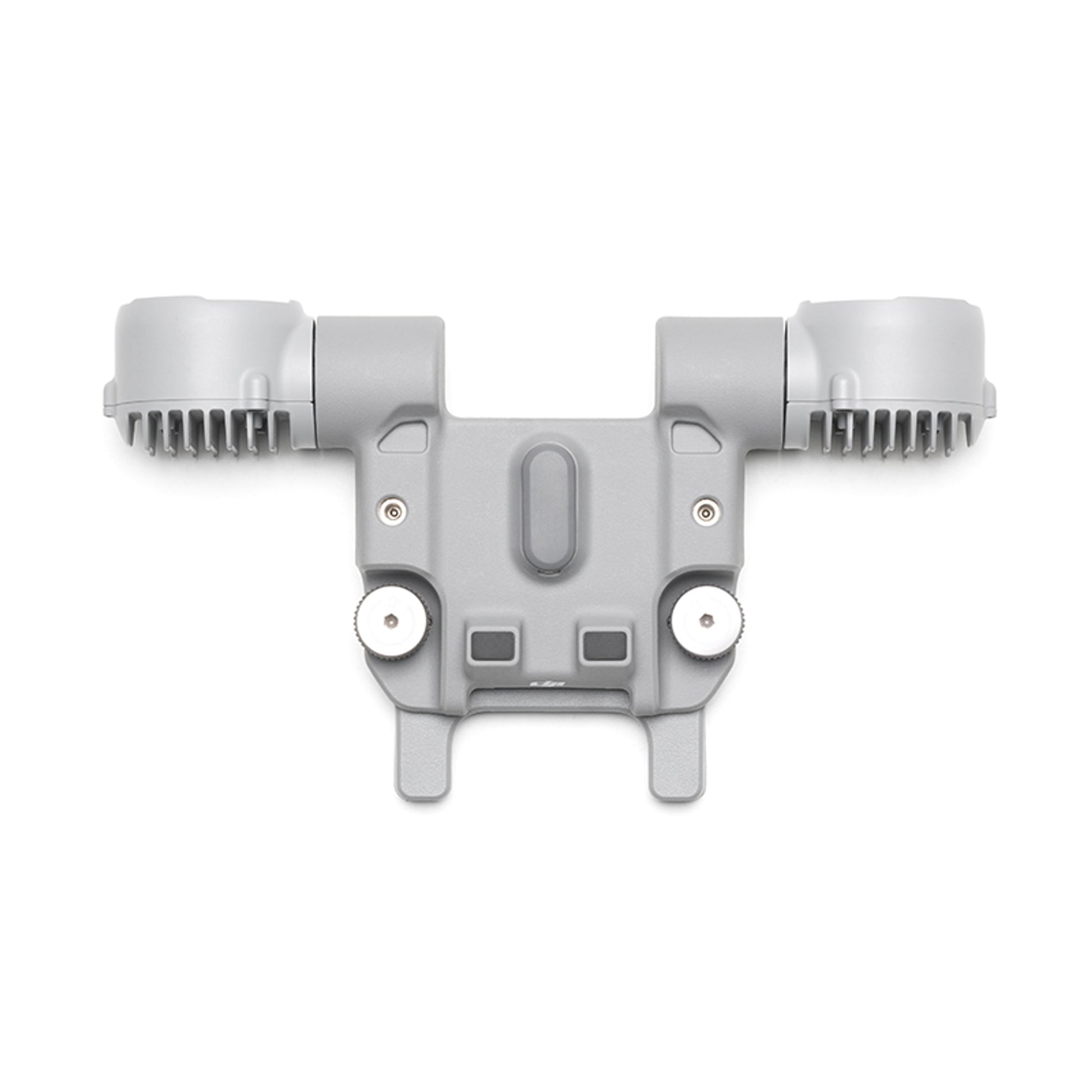

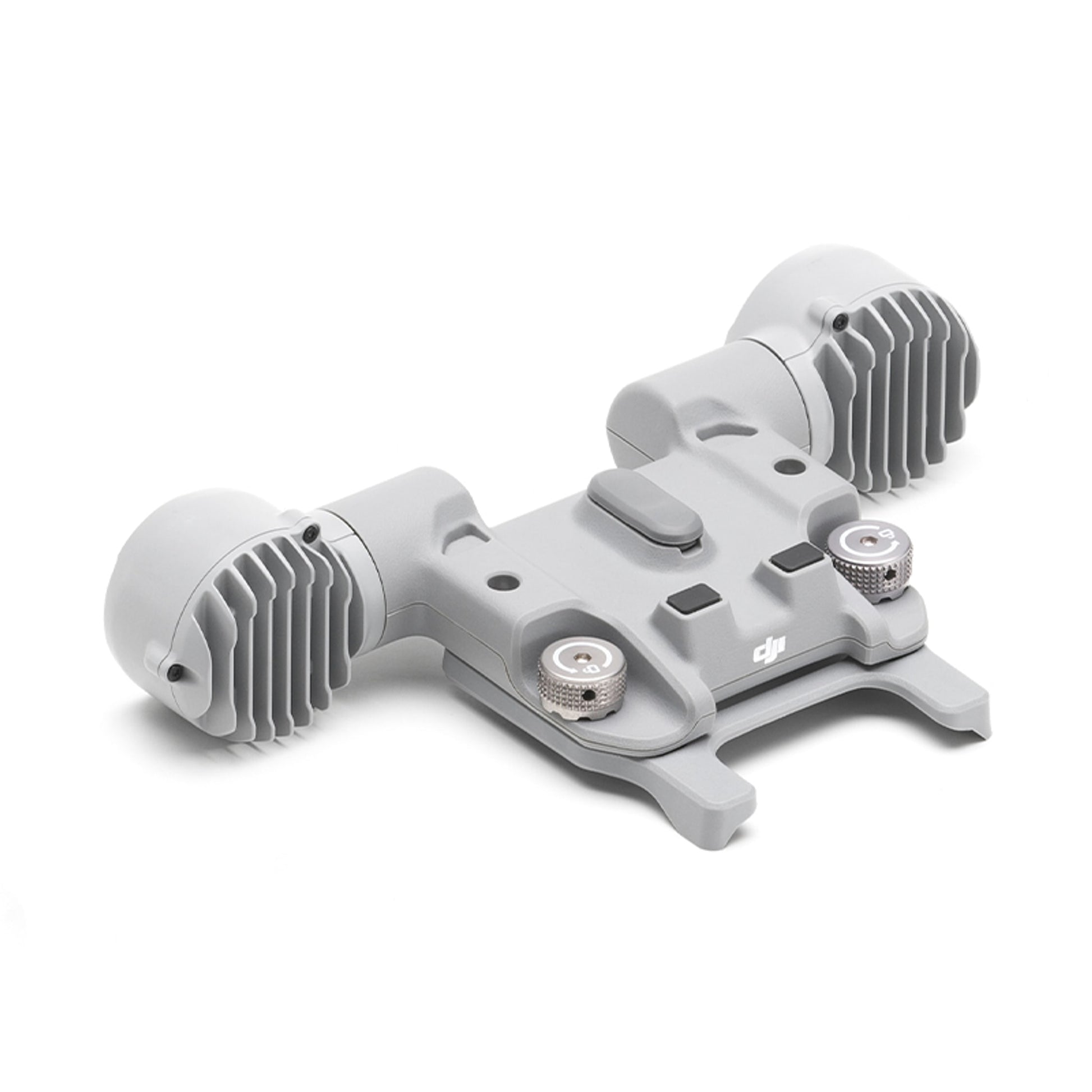

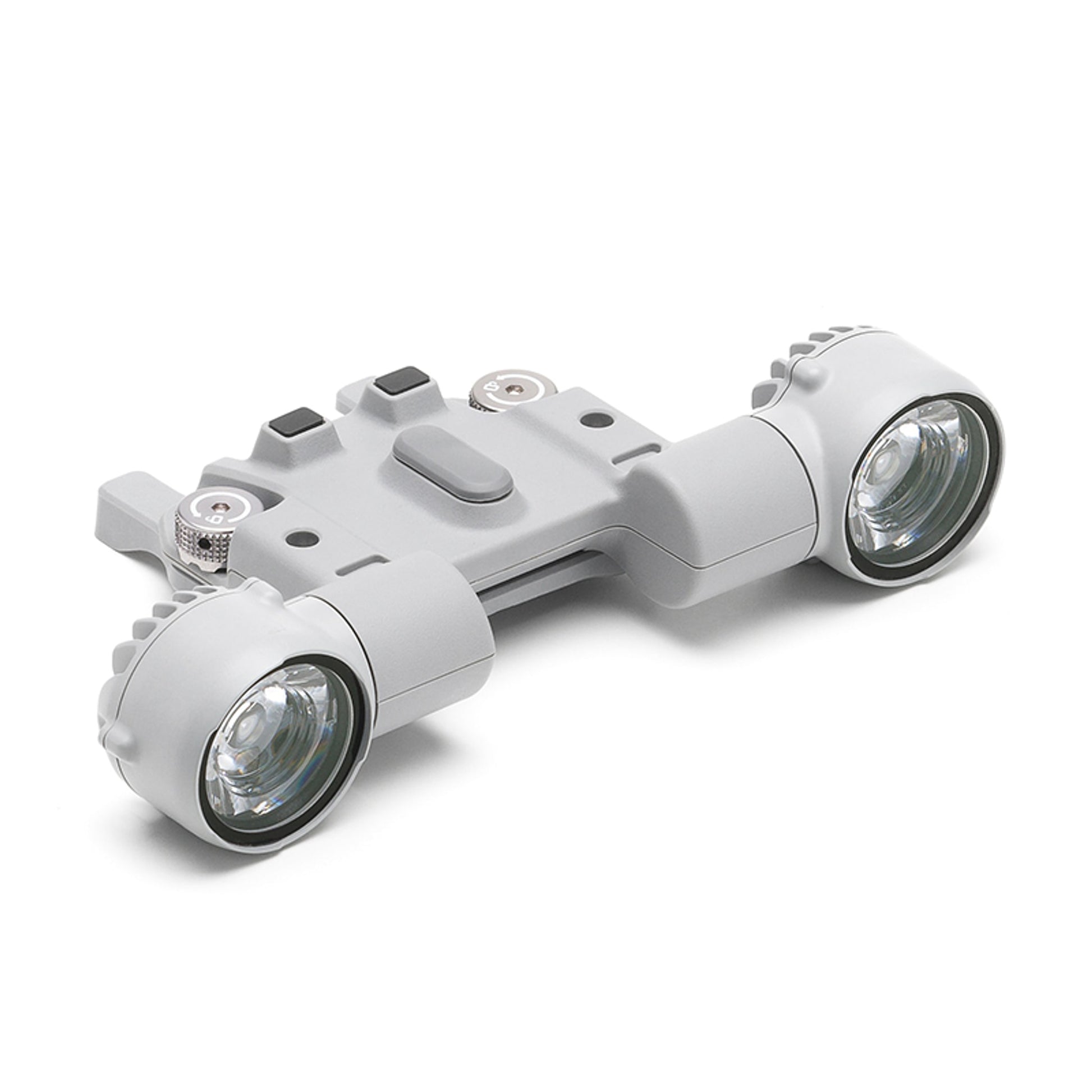

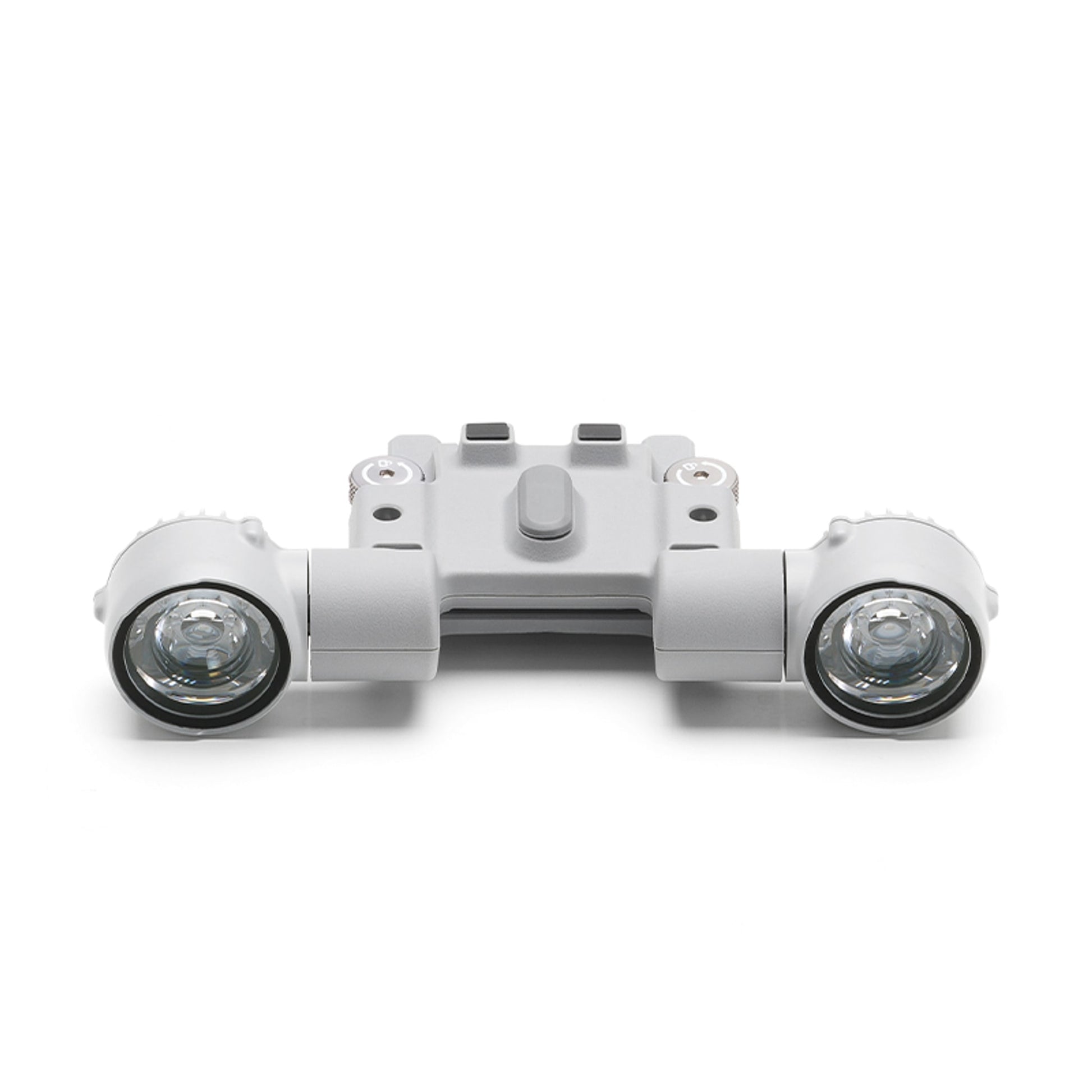

Illuminate your surroundings with the DJI AL1 Spotlight. Designed to enhance night time scenarios, the AL1 Spotlight supports both always on, and strobe modes providing operational versatility to make sure you have the right tool for the job.

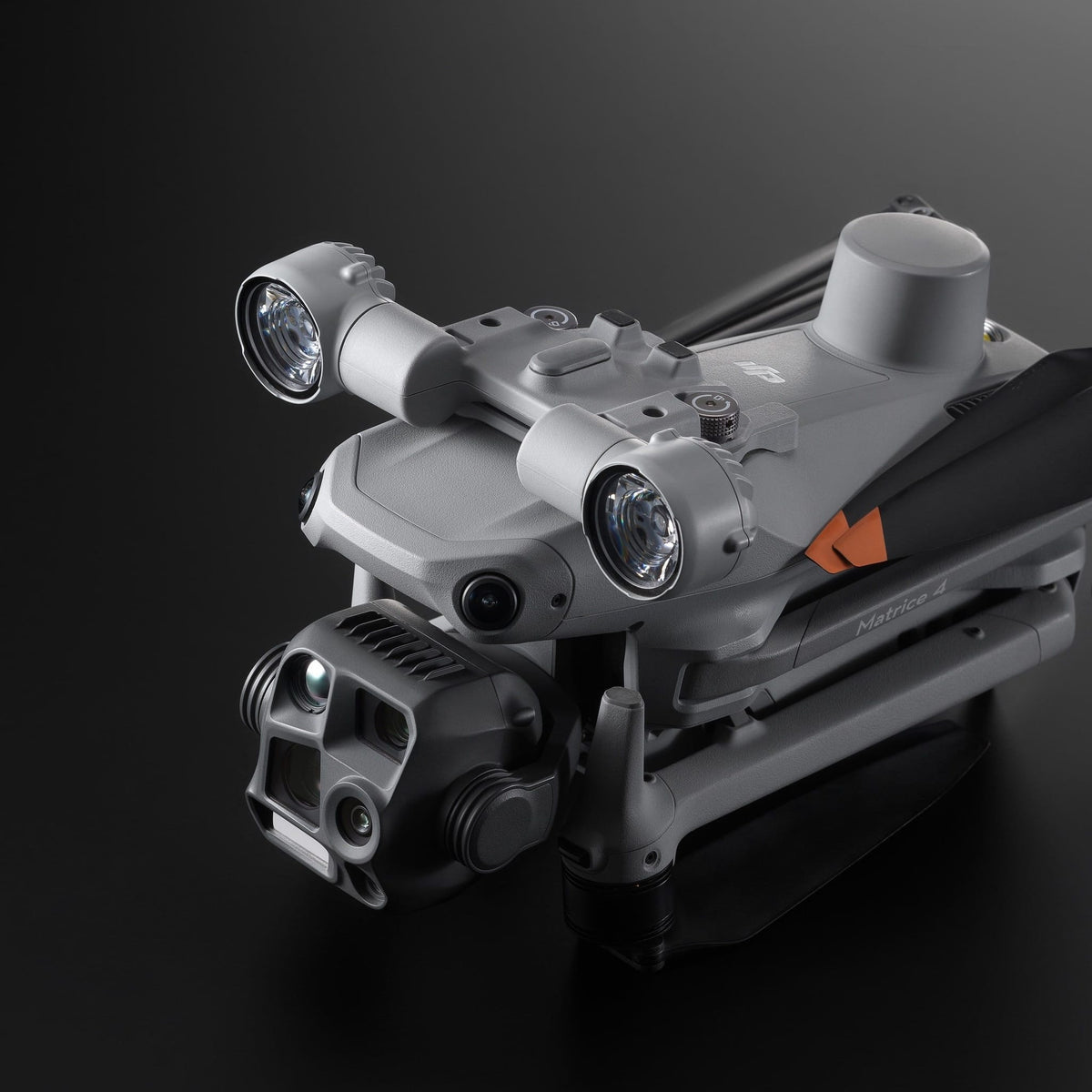

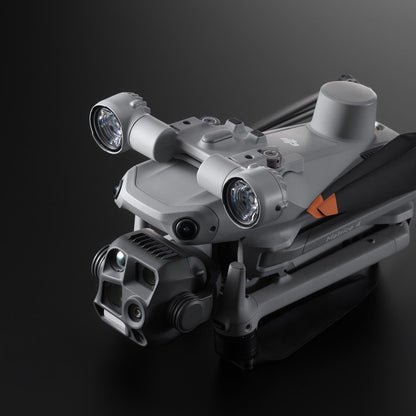

The spotlight can intelligently link to your drone's gimbal so the illuminated area matches the view of the camera as well as providing a wide FOV mode to light up a broader area. The DJI AL1 Spotlight and DJI AS1 Speaker can be used independently or in unison providing even more versatility to your operations.
Highlights
- Capable of illuminating subjects up to 100 metres away
- Supports two lighting modes: always-on and strobe
- Can be used independently or in unison with the DJI AS1 Speaker
In the Box
- 1 x AL1 Spotlight
- 2 x Screws
- 1 x Hex Key
Specifications
| Weight | 99 g (including bracket); approx. 91 g (excluding bracket) |
|---|---|
| Dimensions | 95 × 164 × 30 mm (L × W × H, including bracket); 79 × 164 × 28 mm (L × W × H, without bracket) |
| Max Power | 32 W |
| Illuminance | 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters |
| Effective Illumination Angle | 23° (10% relative illuminance) |
| Effective Illumination Area | 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode); 2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode) |
| Modes | Always-on and strobe |
| Gimbal Mechanical Range (Tilt) | -135° to 45° |
| Gimbal Controllable Range (Tilt) | -90° to 35° |
| Max Control Speed (Tilt) | 120°/s |
| Gimbal Alignment Accuracy | ±0.1° |
| Operating Temperature | -4° to 122° F (-20° to 50° C) |
| Mounting Method | Quick-release hand-tightened screws |
Compatibility
| DJI Matrice 4E | |
|---|---|
| DJI Matrice 4T | |
| DJI Matrice 4D | |
| DJI Matrice 4TD |
