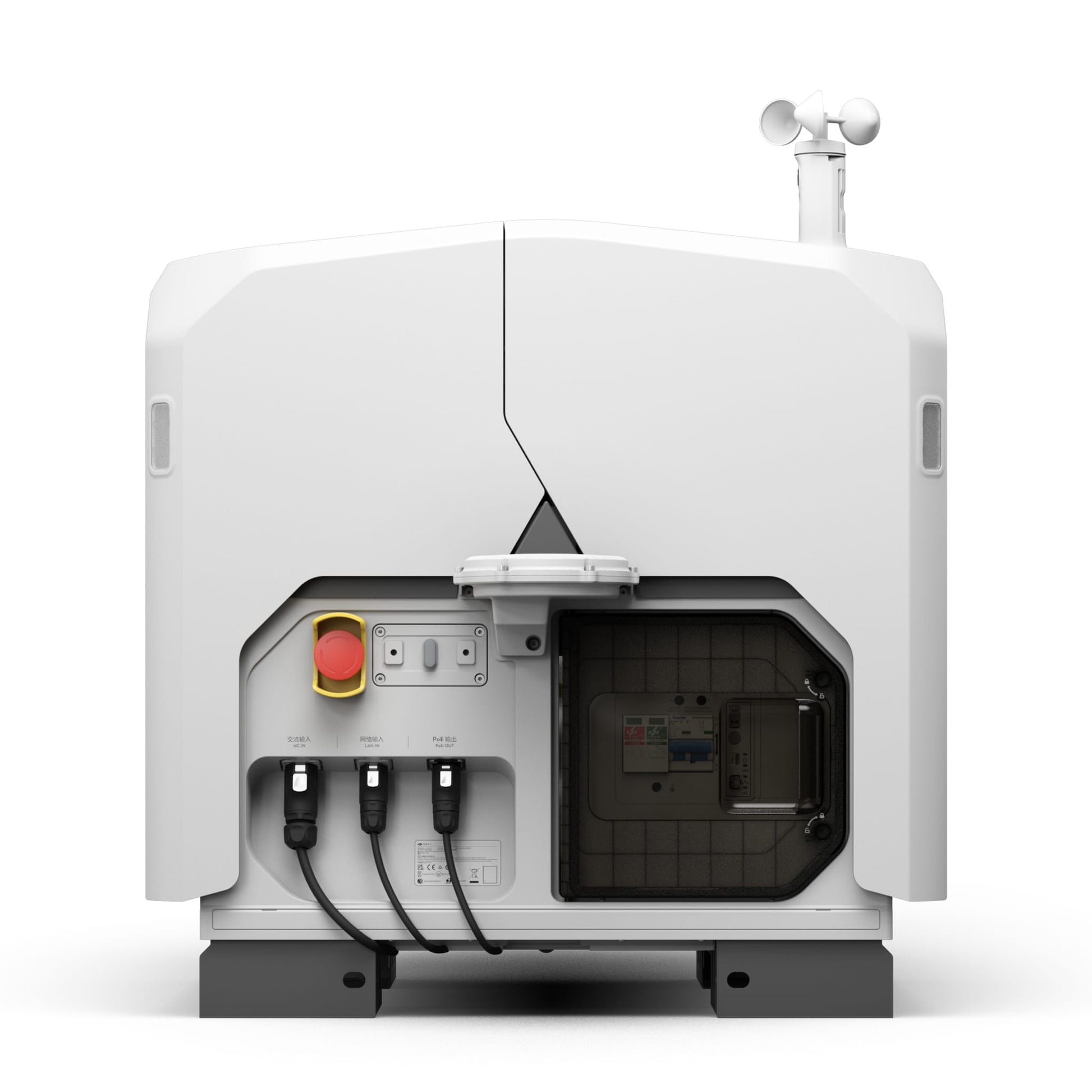

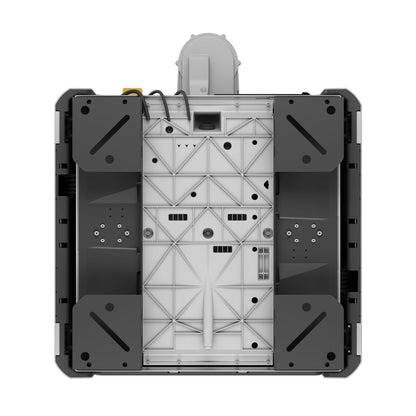

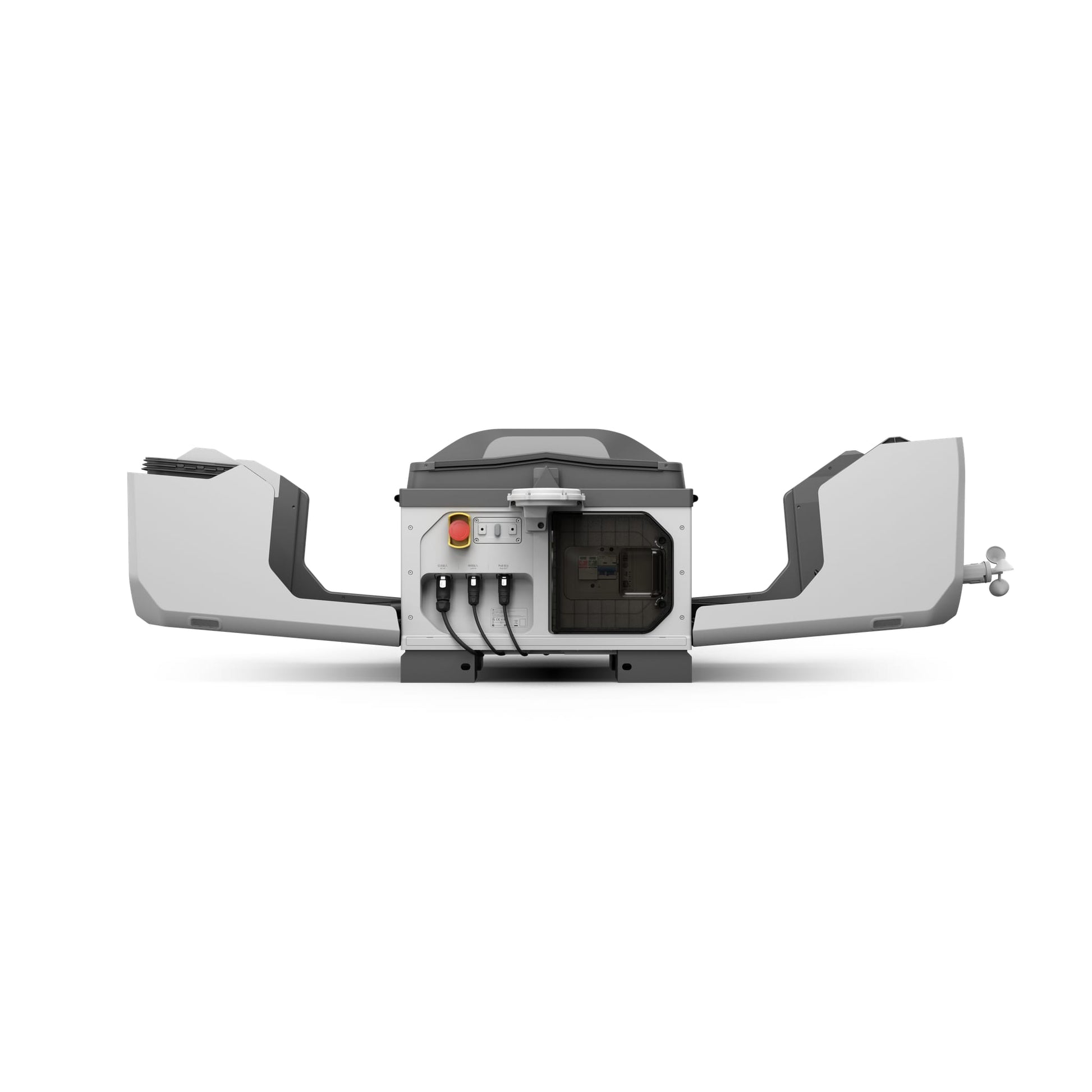

DJI Dock 3 is a vehicle-mountable drone dock with an IP56-rated body and a 27-minute charge for remote patrols and site security.
Backed by D1 Enterprise, Australia's key DJI Enterprise Dealer. Product demos, trials, training, and lifetime support.
DJI Dock 3 is a vehicle-mountable drone dock with a 27-minute charge, IP56 sealing, and a backup battery for remote patrols and site security. The dock weighs 55 kg without the aircraft.
The dock body is rated IP56 and is specified to operate from -30° to 50° C. Charging takes the aircraft from 15% to 95% in 27 minutes at 25° C. A backup battery holds more than 4 hours if mains power drops. The O4 Enterprise Ground Station extends the link in Gateway Mode up to 30 km. Together, fast charging, backup power, and extended link coverage help keep remote patrols available when sites are hard to staff.
Move the pad to the next job so a crew can patrol a site or a perimeter from a vehicle tray.
Roof, tower, or compound installs so a crew can inspect a fixed site from a permanent nest.
15% to 95% in 27 minutes at 25° C, with a backup battery over 4 hours so the next sortie stays ready.
IP56 dock with -30° to 50° C operation and 12 m/s landing wind so flights hold in the weather that shows up.
O4 Enterprise Ground Station on a rooftop or tower so the link holds across a long utility inspection sortie.
Cloud, On-Prem, Sync, and Cloud API so a crew can run scheduled flights and inspect from a rooftop or a vehicle tray.
DJI Dock 3 is DJI’s first vehicle-mountable drone dock. Two units can ride on one vehicle and fly a take-over pattern so the next aircraft is already climbing as the first comes home.
Fixed rooftop and tower mounts stay available when the site does not move.
Each DJI Dock 3 holds one aircraft. Pair it with DJI Matrice 4D for mapping or DJI Matrice 4TD for thermal and night work.
Both airframes also fly standalone with DJI RC Plus 2 Enterprise when the dock stays behind.
4/3 CMOS 20 MP wide camera with 5-direction oblique mapping.
Thermal VOx 640×512 with UHR Infrared up to 1280×1024.
DJI Dock 3 is rated IP56 and is specified to operate from -30° to 50° C.
Maximum landing wind speed is 12 m/s. An onboard backup battery holds more than 4 hours if mains power drops.

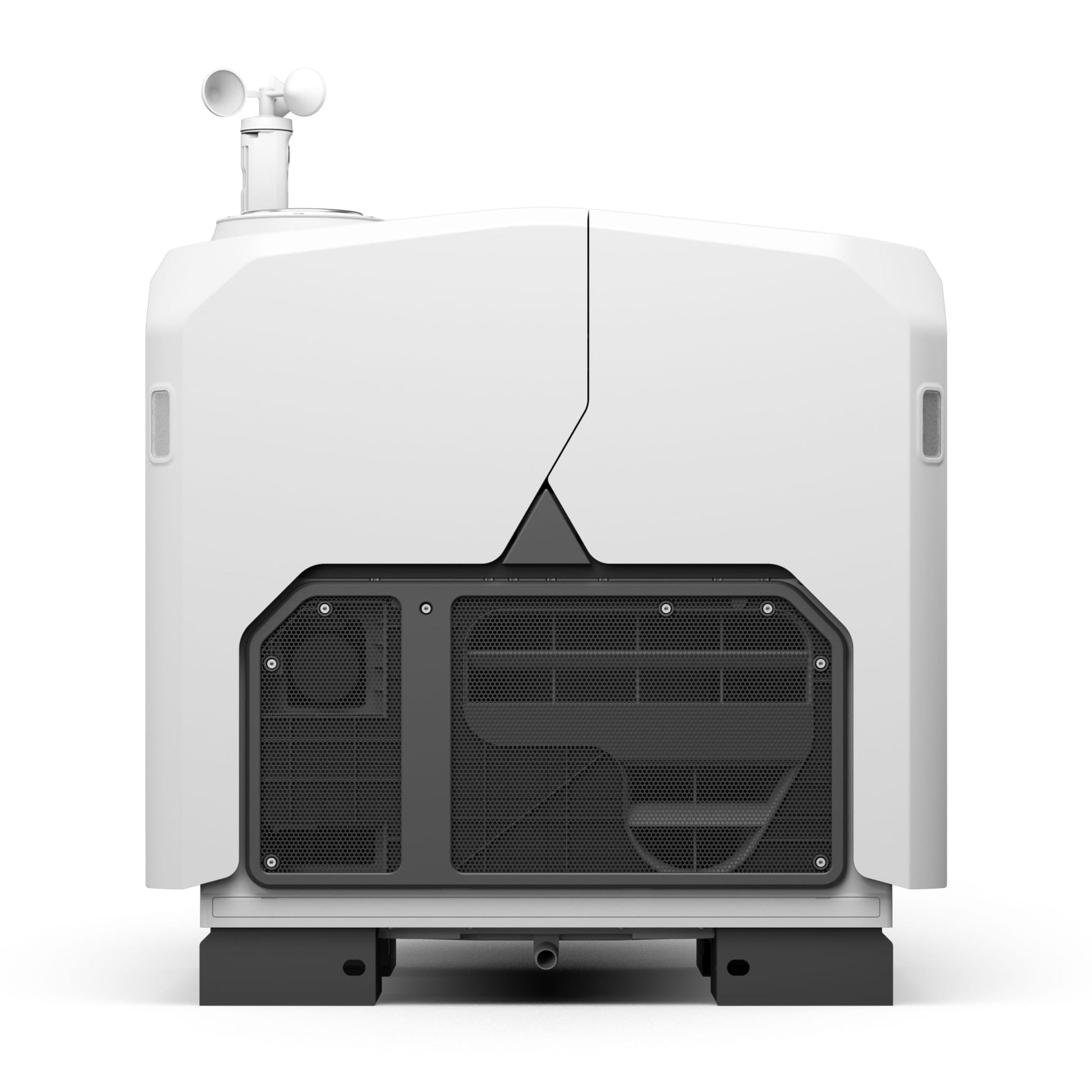

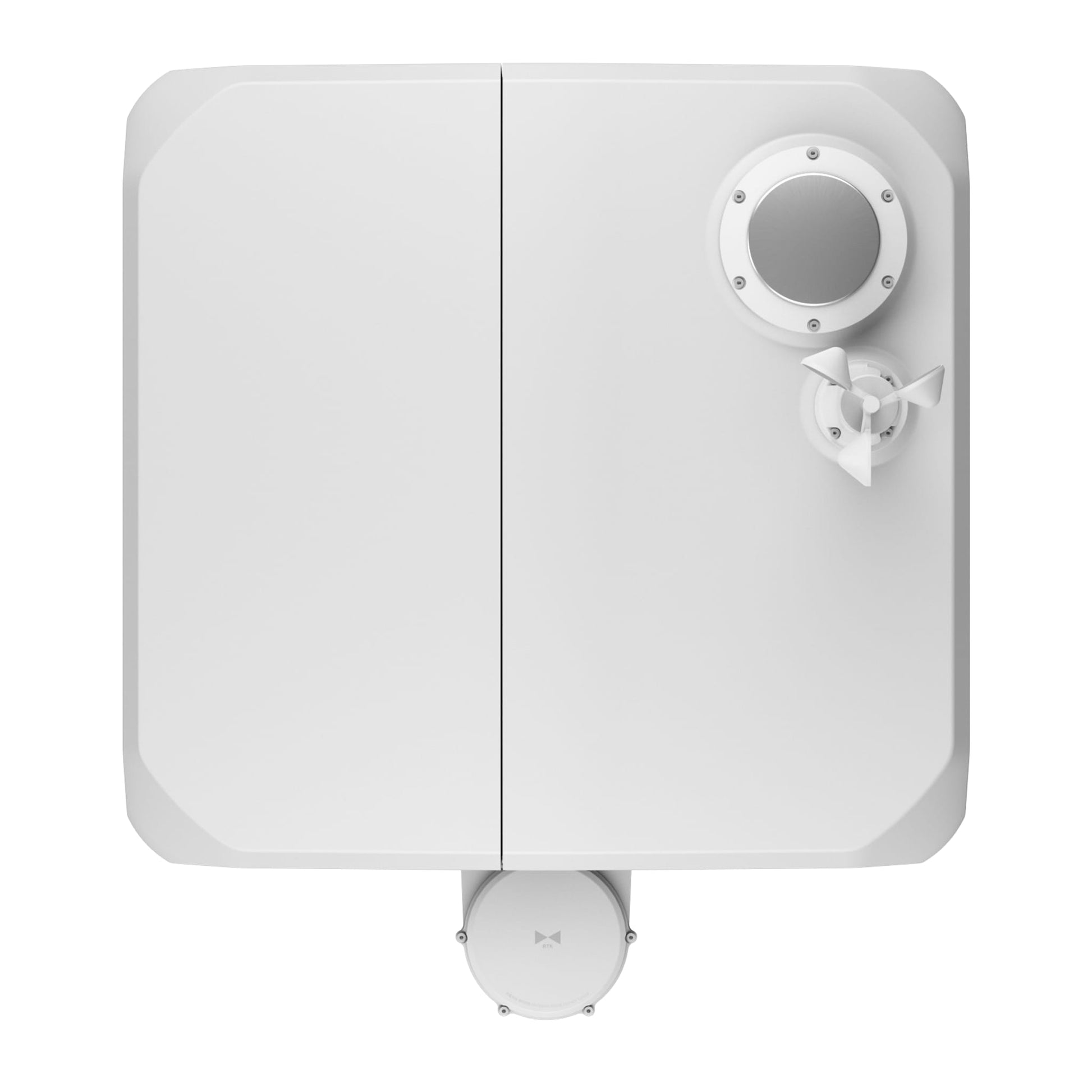

DJI Dock 3 watches the site it sits on. An onboard anemometer and environmental sensors inform launch and recovery decisions.
That keeps automated flights inside the 12 m/s landing-wind limit instead of guessing from a forecast miles away.
DJI Dock 3 vehicle and site operations.
Overview
DJI Dock 3 vehicle and site operations.
DJI O4 Enterprise Ground Station mounts on a rooftop or tower and extends DJI Dock 3 coverage. Gateway Mode coverage radius is up to 30 km.
The dock itself uses a built-in 9-antenna 2T4R array for the local link.
DJI Dock 3 connects to DJI FlightHub 2, FlightHub 2 On-Prem, FlightHub Sync, and Cloud API.
Plan routes, launch remotely, and keep the same fleet visible whether the dock is on a roof or in a tray.
Rooftop or tower mount so the link holds across a long utility inspection route.
Standalone controller for Matrice 4D and Matrice 4TD when the crew needs to inspect off the dock.
4G link sold separately so flights keep working offline of the dock link in remote regions.
Optional rotating LiDAR and mmWave radar for Matrice 4D and 4TD. Not built into the airframe; add it when the job needs wire detection.
Field power station for charging and site power so the crew can survey and inspect when mains is not available.
Cloud remote operations for DJI Dock 3, plus On-Prem, Sync, and Cloud API.
Photogrammetry and model reconstruction for Matrice 4D mapping jobs.
Mobile SDK 5 for custom controller and workflow apps.
Connect DJI Dock 3 and the aircraft to third-party cloud platforms.
Programmatic access to DJI Terra processing for mapping pipelines.
D1 Enterprise offers a range of services to support your DJI Dock 3 fleet, from warranty and maintenance to compliance, consulting, and finance.
Additional 1-year warranty beyond standard coverage, with major parts covered by the official warranty.
Preventative maintenance programs to keep your fleet performing optimally across every mission.
Original parts, guaranteed quality, and rapid response from DJI product experts.
Complete fleet management via AVCRM integration, so you track, schedule, and maintain your entire operation.
CASA compliance, ReOC/RePL training, and operational control to keep your program audit-ready.
Introduce, grow, and mature internal drone programs with expert guidance at every stage.
Replacement units dispatched during maintenance so your operations keep running.
Optional ServiceRapid turnaround for repairs and maintenance, keeping your fleet in the air.
Optional ServiceUpgrade your fleet with trade-in value on existing equipment.
Flexible payment options for enterprise fleets to acquire equipment on your terms.
DJI Dock 3 puts a remote-ops pad on a vehicle, rooftop, or tower for the industries that cannot wait for a crew to arrive. A sourced field story shows the result.
24/7 automated patrols with AI detection of people and vehicles, continuous site security without adding headcount.
Reference: Published case studyFor a product demo or trial of DJI Dock 3, leave your contact details. D1 Enterprise can help specify the right kit.
