Wide-Angle FPV Digital Video Transmission
More in Every Shot

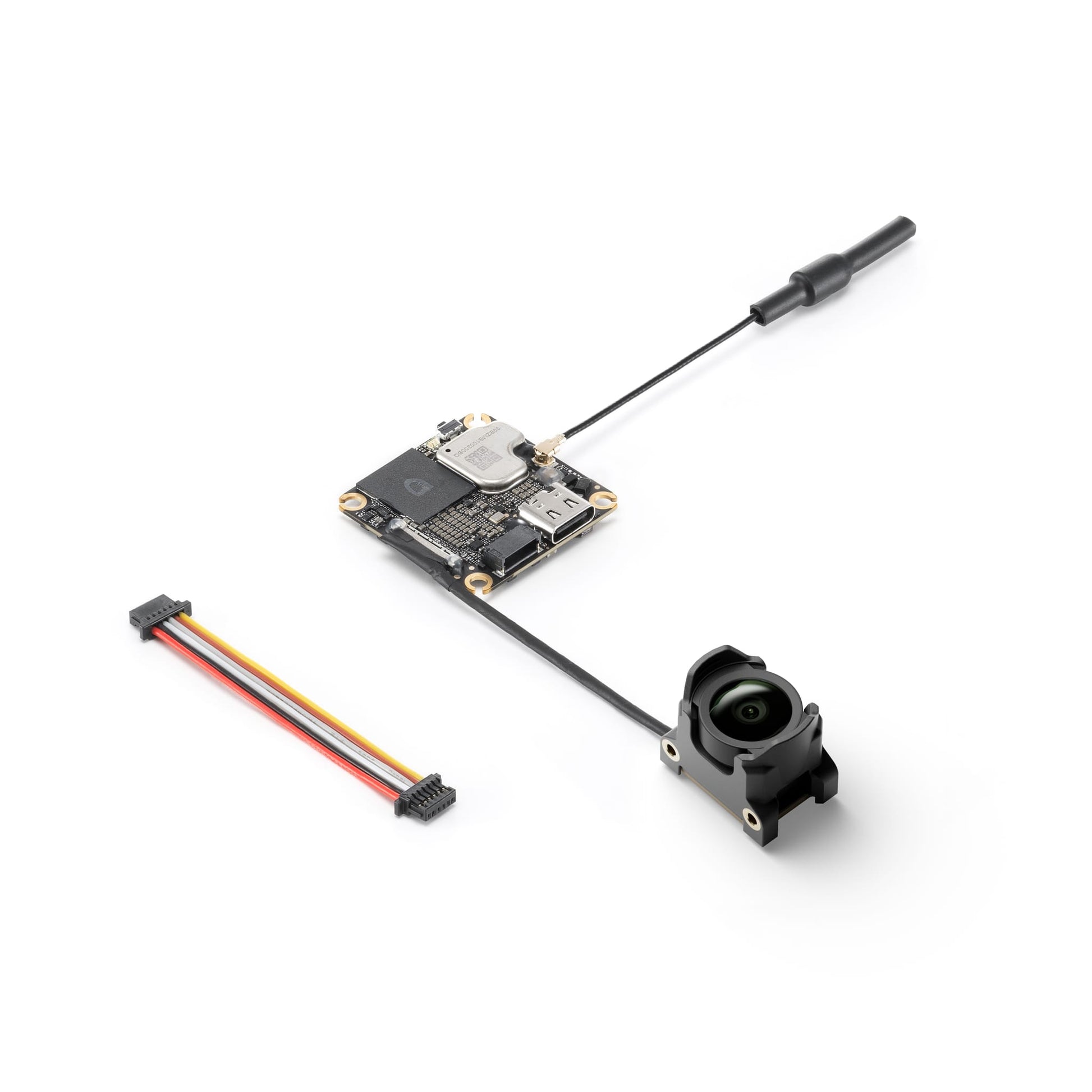

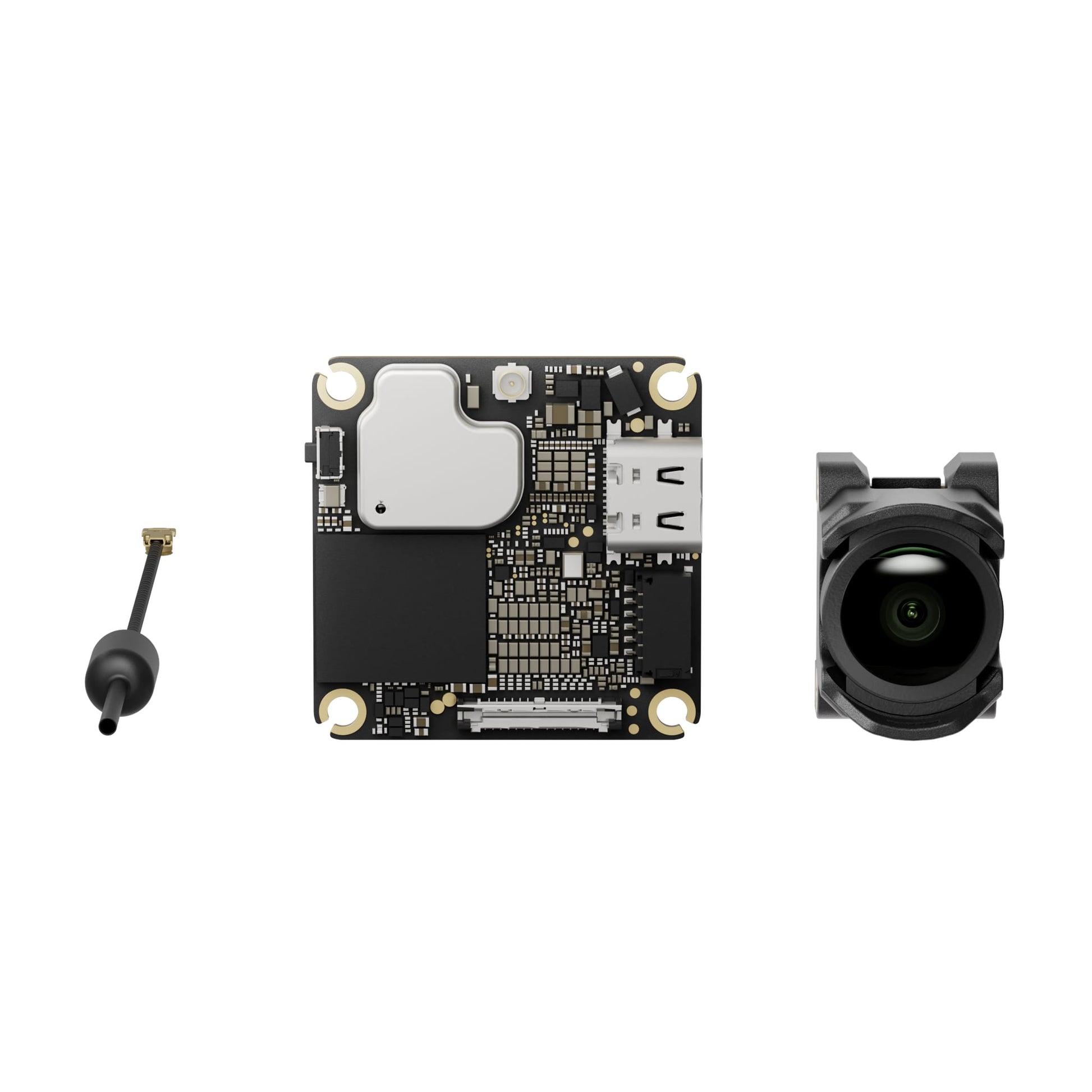

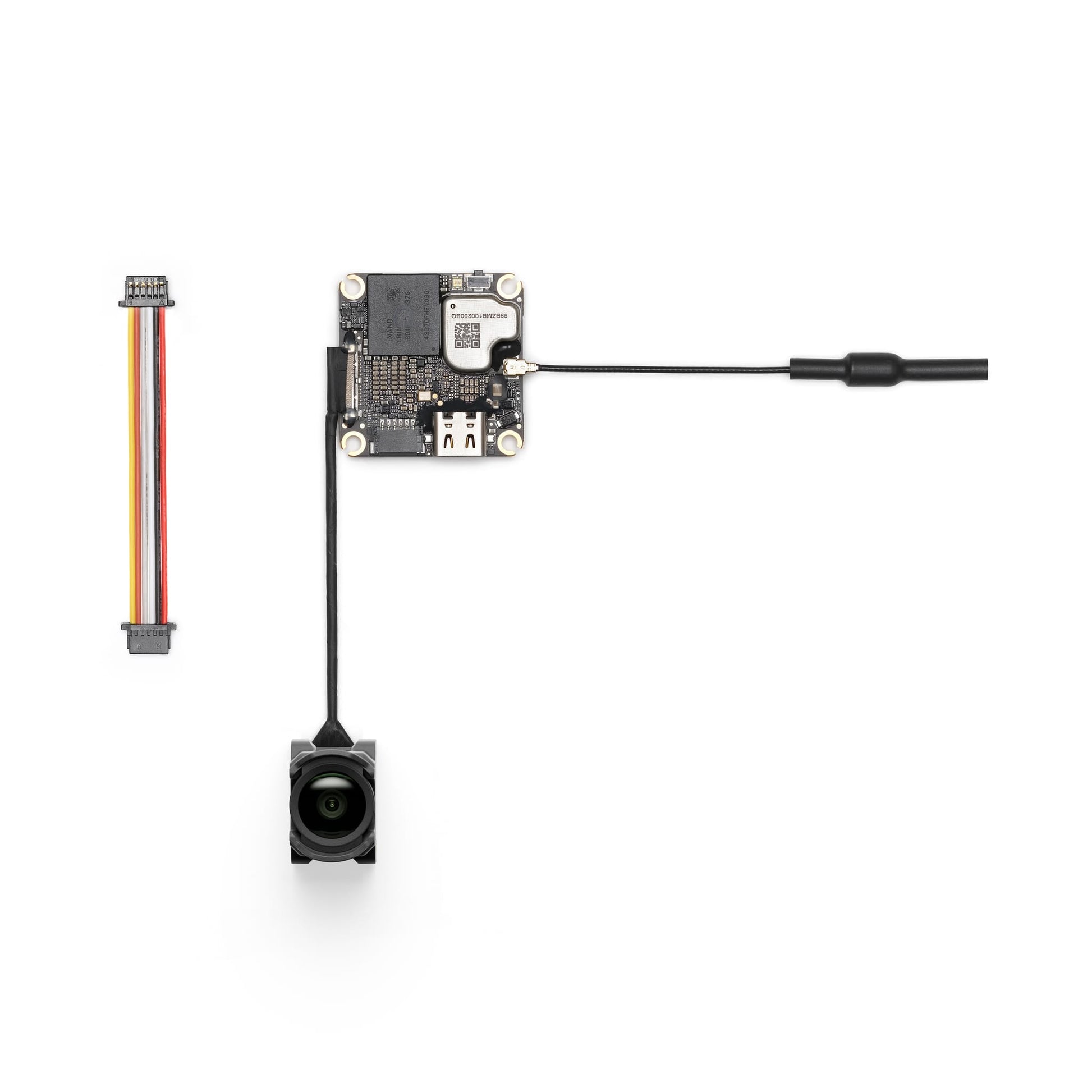

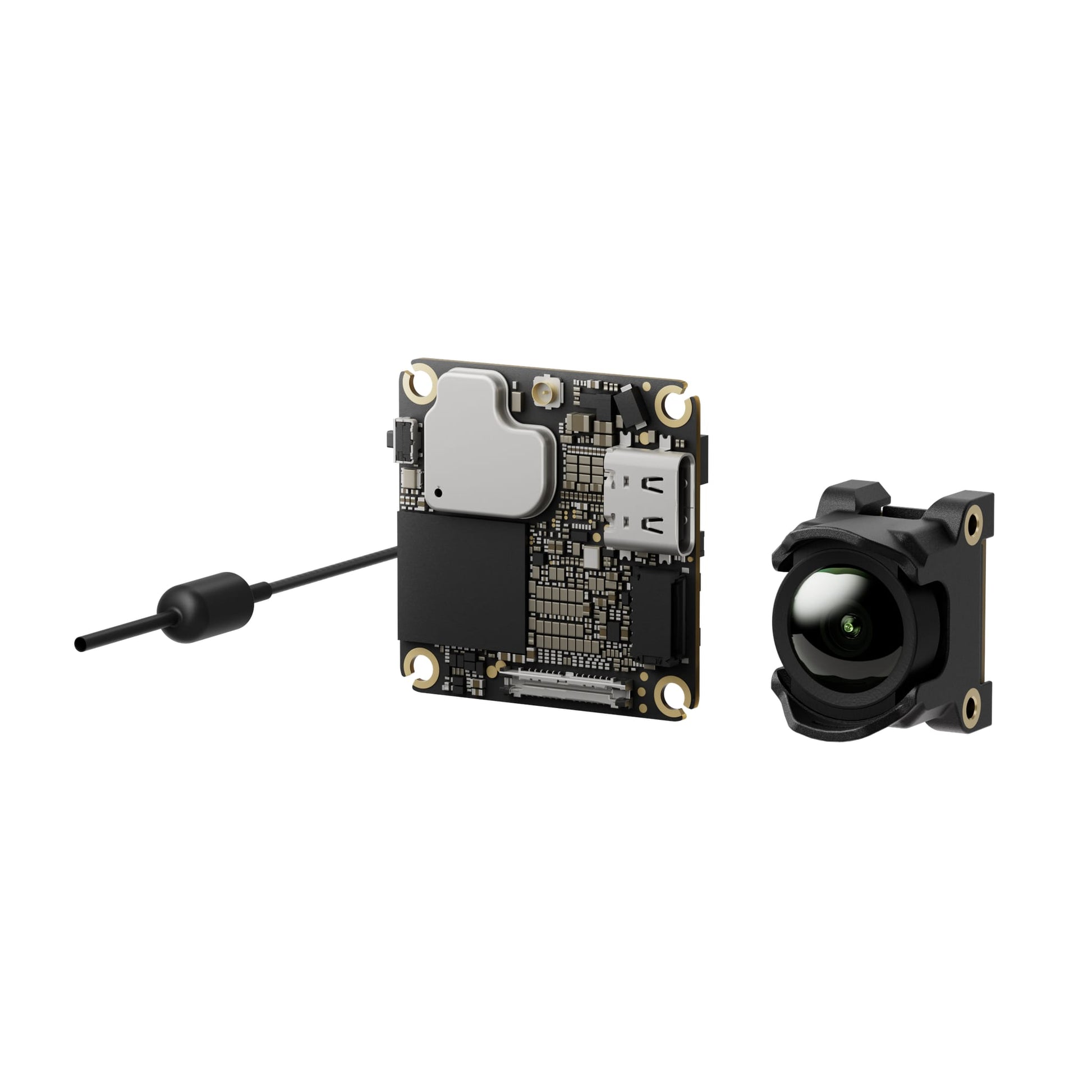

DJI O4 Wide Air Unit is a compact FPV camera and video transmission system ideal for custom builds and freestyle FPV flight.
4K/60fps
Video
159°
Field of View
20 ms
Low Latency
13g
Weight
23gb
Storage
Capture More
Unlock freedom in flight with the DJI O4 Wide Air Unit FPV Video Transmission System. Delivering unparalleled performance, the O4 Wide Air Unit is straight business, supporting 4K/60fps video capture and full HD video transmission up to 10km via DJI O4 video transmission technology.

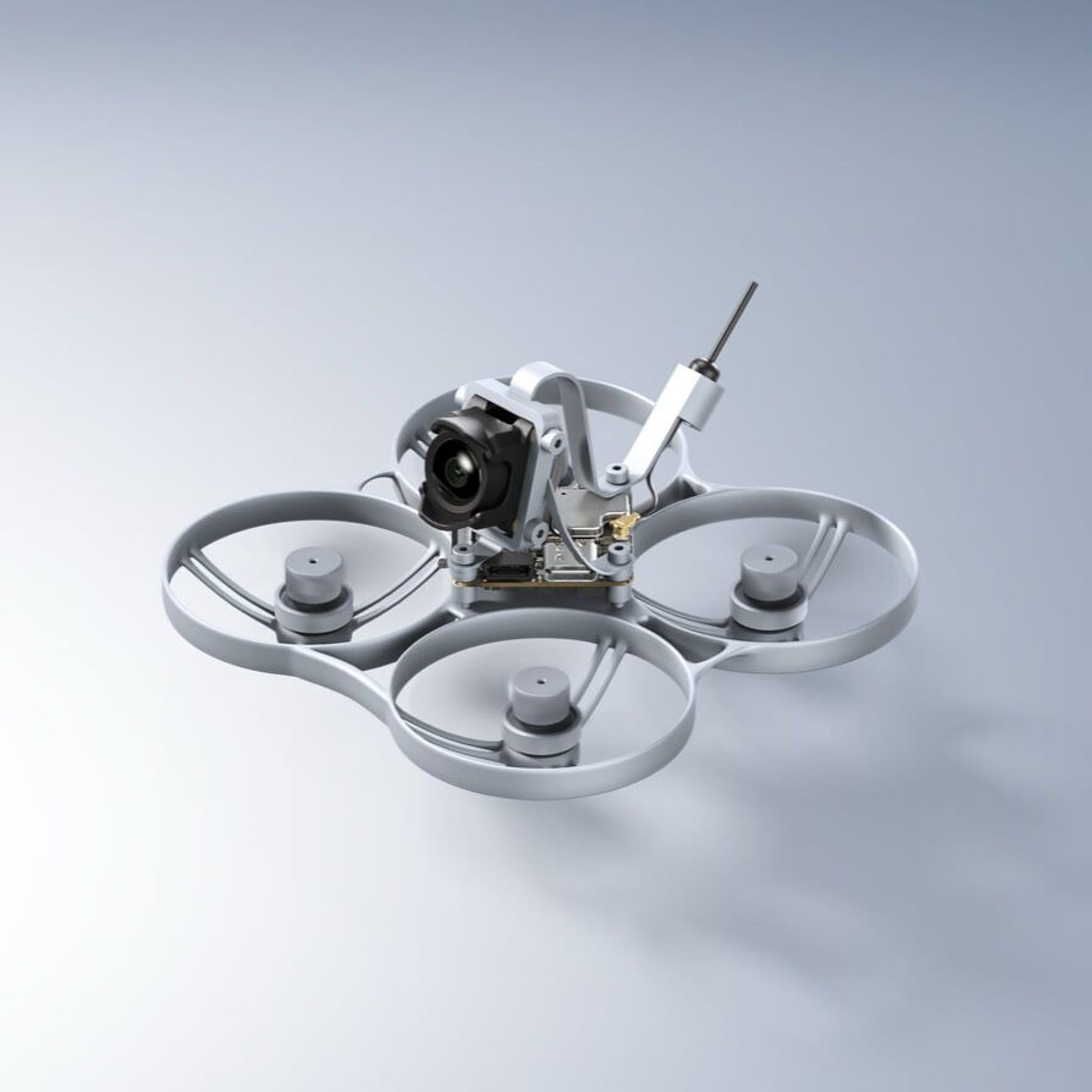

Compatible with drone frames sized 3 inches and below, the O4 Wide Air Unit presents the cutting edge in video technology for custom-build FPV.
Designed for custom FPV drone builds
Ultra-immersive 159° field-of-view imaging
Suitable for fast, compact FPV drone frames
Seamless connectivity with DJI FPV peripherals for Goggles and Controllers
Small but Mighty
With a compact design weighing just 13.3 grams, O4 Wide Air Unit supports ultra-fast drone frames, delivering quality performance without any bloat. Simply install it on a compatible drone frame and transform your build into a pro-level drone.
A New Perspective
Say goodbye to bulky action cameras and mounts with O4 Wide Air Unit's integrated camera module that makes capturing share-worthy FPV footage easy.
Powered by a 1/2-inch CMOS sensor supporting 4K/60fps capture, O4 Air gives FPV pilots a 159° field of view for a broader, more immersive flight view,
Upgraded Imaging
With a 159° ultra-wide FOV, easily navigate through complex terrains and capture breathtaking flight footage.
Ultra-Wide FOV
With a 159° ultra-wide FOV, easily navigate through complex terrains and capture breathtaking flight footage.
Reliable Transmission
With its dual-antenna design, the unit delivers true-to-life 1080p/100fps H.256 live view quality with a transmission latency as low as 15 milliseconds, allowing you to make quick, real-time flight decisions with ease.
Enjoy a transmission range up to 10 km with a video transmission bitrate up to 60 Mbps.
For pilots flying in racing or high-movement environments, that low-latency link is the feature that matters most. It is the difference between simply seeing the flight and feeling connected to it. No matter where you fly, you can rely on O4 Air Unit Pro’s incredible transmission for responsive controls.
Ready to Race
Did someone say speed?
With dynamic Racing Mode supported by ultra-low video latency, up to eight aircraft with DJI O4 Air Unit Series can race simultaneously.
Fly Your Way
DJI O4 Wide Air Unit supports the premium DJI peripherals you already own.
Take off with DJI Goggles series headsets including DJI Goggles 3 and DJI Goggles N3 while executing precise flight manoeuvres with DJI FPV Remote Controller 3.
Specifications
Weight
Air Unit (camera module excluded): Approx. 5.1 g
Air Unit (camera module included): Approx. 13.3 g
Antenna: Approx. 0.75 g
Dimensions
Transmission Module: 30×30×6 mm (L×W×H)
Camera Module: 20.5×14×20.5 mm (L×W×H)
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Antenna: 80 mm
Operating Frequency
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP)
5.1 GHz: <23 dBm (CE)
5.8 GHz:
<30 dBm (IC)
<14 dBm (CE)
<30 dBm (SRRC)
Lowest Latency
With DJI Goggles 3 and racing mode enabled:
With 1080p/100fps video transmission quality, the latency is as low as 20 ms.
With DJI Goggles N3 and racing mode enabled:
With 1080p/100fps video transmission quality, the latency is as low as 24 ms.
With DJI Goggles 2 or Goggles Integra:
With 1080p/100fps video transmission quality, the latency is as low as 35 ms.
Latency data refers to the minimum latency during the screen refresh of the goggles. Tested in an outdoor open environment without interference. The video transmission latency data varies with different devices.
Max Video Transmission Range
Up to With DJI Goggles 3/DJI Goggles N3:
Up to 10 km (IC), 6 km (CE), 6 km (SRRC)
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range under various standards. The actual maximum communication range during flight is limited by the flight endurance of the aircraft. Always pay attention to RTH reminders on the camera view during your flight.
The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.
FAQ
The DJI O4 Air Unit Series includes three products, all equipped with the DJI O4 video transmission system. Compared to the previous generation, these products deliver a new experience with lower latency, longer range, and more ways to play.
DJI O4 Wide Air Unit is an upgrade to DJI O4 Air Unit, mainly featuring a wider 159° FOV. Keeping the original lightweight design, HD image quality, and powerful O4 video transmission, it is ideal for beginners and FPV freestyle users.
DJI O4 Air Unit is compact and lightweight, with a mounting hole distance of 30 × 30 mm, a height of only 6 mm, and a weight of just 8.2 grams, making it ideal for beginners in the FPV drone community. DJI O4 Air Unit is perfectly compatible with 2-inch and smaller frames, and it is also suitable for installation on racing frames for practice. It features a 1/2-inch image sensor, capable of shooting up to 4K/60fps video, with a minimum transmission latency of 20 milliseconds and a maximum transmission distance of 10 kilometers. Additionally, it comes with 23GB of built-in storage, making it an excellent choice for FPV freestyle flying and beginners, offering outstanding value for its price.
DJI O4 Air Unit Pro is powerful and an ideal choice for FPV users. It is compatible with frames of 3 inches and above, including professional FPV such as the X8. DJI O4 Air Unit Pro is equipped with a 1/1.3-inch image sensor, capable of shooting up to 4K/120fps video, and supports 10-bit D-Log M color mode. It is compatible with the same ND filters as DJI Avata 2, providing ample flexibility for professional shooting and post-production. When the racing mode is activated, the minimum transmission latency can reach 15 milliseconds, and the maximum transmission distance can reach 15 kilometers. Whether flying in a specific area or on a long-distance flight, it provides users with an exceptional flying experience.
The DJI O4 Air Unit Series has introduced a racing mode feature, which can fix the recording and video transmission specifications at 1080p/100fps, set the channel mode to manual mode, and is compatible with the racing frequency points used in analog video transmission, divided by Race Band. When using with other racing drones that use analog video transmission, it is recommended to keep the goggles at least one meter apart, manually select the distribution frequency, and adjust the appropriate video transmission power accordingly.
The DJI O4 Air Unit Series and DJI O3 Air Unit only support partial accessory compatibility. Please carefully check the accessory compatibility list before purchasing, or consult DJI Support.
Shared accessories include: 3-in-1 cable*, video transmission antenna (only for DJI O4 Air Unit Pro).
Non-shared accessories include: camera module, image transmission module, ND filter set, camera coaxial cable.
The DJI O4 Air Unit Series has significantly improved cooling capabilities compared to the DJI O3 Air Unit.
After enabling the ground low-power mode, the DJI O4 Air Unit and DJI O4 Wide Air Unit can remain on standby for up to 2.5 minutes*, and the DJI O4 Air Unit Pro can remain on standby for up to 20 minutes*.
If you do not need to record videos while on standby on the ground, it is recommended to keep the low power mode on.
If the ambient temperature significantly exceeds 25° C, it is recommended to use external cooling methods to help dissipate heat for the Air Unit.
No.
The DJI O4 Air Unit Series supports adjusting flight controller parameters, but the flight controller should support Canvas mode.
No.
No.
The dimensions of the transmission module and camera module of the DJI O4 Air Unit Series are different from those of the DJI O3 Air Unit. Please adjust the frame according to the corresponding dimensions of the DJI O4 Air Unit Series before installation.
Yes. Currently, the replaceable accessories include: DJI O4 Air Unit transmission module, camera module, and antenna.
Please purchase related accessories at DJI Store, and follow the tutorial video for replacement.
I. Installation and Debugging Instructions:
1. The DJI O4 Air Unit Series standby time on the ground (with ground low power mode enabled): 3 minutes (ambient temperature 25° C). O4 Air Unit Pro standby time on the ground (low power mode enabled): Maintain thermal balance (ambient temperature 25° C).
2. When assembling the DJI O4 Air Unit Series, ensure that the image transmission RX is connected to the flight controller TX, and the image transmission TX is connected to the flight controller RX.
3. The DJI O4 Air Unit Series has two sets of temperature control strategies for the standby state and the flight state. It can apply different temperature control strategies according to the current state.
a. In the standby state, the protection system will be activated to automatically shut down the air unit when the temperature threshold is exceeded.
b. If the temperature threshold is exceeded during flight, an over-temperature warning will be displayed, and recording will stop. If the temperature continues to rise, the transmission bitrate will decrease, with a maximum of 50 Mbps.
II. Installation Suggestions:
1. The basic principle is to facilitate heat dissipation.
2. When routing the cables, please do not bend, twist, or bind the camera coaxial cable forcefully. Especially avoid folding the base of the coaxial cable at an angle greater than 90°, to prevent damage to the coaxial cable and issues such as screen flickering.
3. It is recommended to install the air unit in a position close to the propellers (distance between the air unit and the propellers within 10 mm), so that the downwash airflow can be effectively utilized. Try to avoid an installation position far from the propellers.
4. It is recommended to use a heat conductive material to connect the frame and the air unit. This will dissipate heat to the carbon plate and the other non-conductive metal components of the frame. Conducting heat will extend the operating time.
5. Do not install the air unit in an enclosed area.
6. After the air unit is powered on, its metal shell will become hot. Therefore, the air unit should not be installed in a position easily accessible or held by hand.
7. Please do not forcefully tighten the screws on the drone body to avoid stripping the threads.
Mechanical vibration at certain frequencies may cause abnormal EIS performance of DJI O4 Air Unit Series. The causes are as follows:
I. IMU Resonance
The usual ESC PWM control frequency is 24 kHz by default, and the camera IMU frequency is approximately 24-30 kHz. If there is no effective vibration absorbing measure, the motor vibration may be transmitted to the camera IMU, causing resonance because the frequencies coincide. The resonance will affect the IMU data accuracy and EIS performance of the video stabilization application.* As a result, the processed video image shakes, but the live view image is not affected. Usually, frames with TPU or vibration absorbing rubber are not prone to IMU resonance.
II. Propeller Vibration
If the rolling shutter effect appears in both the live view and the video image, it is usually because the propeller vibration (frequency is approximately a few hundred Hz) is transmitted to the camera through the aircraft frame.
Follow the steps below to troubleshoot and fix the image stabilization issue:
Rule out the IMU resonance issue.
1. Remove the propellers from the aircraft. Make sure that the camera is securely mounted and the aircraft is placed in a stationary position on the ground. Then, enable RockSteady and start recording.
2. Start the motors and slowly push the throttle to the full throttle position. Observe the live view in the goggles. If the live view is not shaking, stop the motors and stop recording. Otherwise, check the camera and make sure that it is securely mounted.
3. Export the recorded video and check it. If the video image shakes, the issue is most likely caused by the resonance between the frame and the camera IMU.
In this case, refer to the following solutions:
a. Change the ESC PWM control frequency to 48 kHz or 96 kHz and test again.
b. If the video image shakes after solution a is adopted, apply a softer vibration absorbing structure between the camera and the aircraft frame. Repeat the above testing procedures until the video image does not shake.
After ruling out the IMU resonance issue, check if the video image has the rolling shutter effect caused by propeller vibration.
1. Install the propellers back and make sure that the propellers are not damaged. Fly the aircraft and start recording with RockSteady enabled.
2. Check the video image after the flight. If the video image does not have a rolling effect, the debugging is completed.
3. If the video image has a rolling shutter effect, try the following solutions:
a. Adjust the vibration absorbing structure between the camera and the aircraft frame again.
b. Adjust the tightness of the screws that fasten the camera to the aircraft frame.
If the issue still exists after all of the above methods are completed, contact DJI Support.
* Due to the significant weight difference between the DJI O4 Air Unit and the DJI O4 Air Unit Pro, the DJI O4 Air Unit requires a softer vibration damping structure compared to the DJI O4 Air Unit Pro to achieve the same effect.
The DJI O4 Air Unit Series supports Betaflight 4.3.0 and INAV 8.0.1, along with their respective later versions.
The DJI O4 Air Unit Series must be powered by the flight controller or battery to activate the transmission module.
Please ensure the video transmission channel is set correctly and check if the video transmission OSD is turned on.
