Overview
Replace this with a 2-3 sentence description of the accessory and what it does for the user.
Highlights
- Key benefit one
- Key benefit two
- Key benefit three
Overview
Unlock new capabilities with the DJI E-Port V2 Development Kit, designed for integrating third-party sensors and hardware. Perfect for SDK development, system integration, and real-time debugging, empowering advanced workflows and custom payload solutions.
Highlights
- Easily connect and power external hardware for advanced mission flexibility.
- Designed for seamless integration with DJI’s Payload SDK for custom development.
- Supports data transmission and live debugging to streamline testing and deployment.

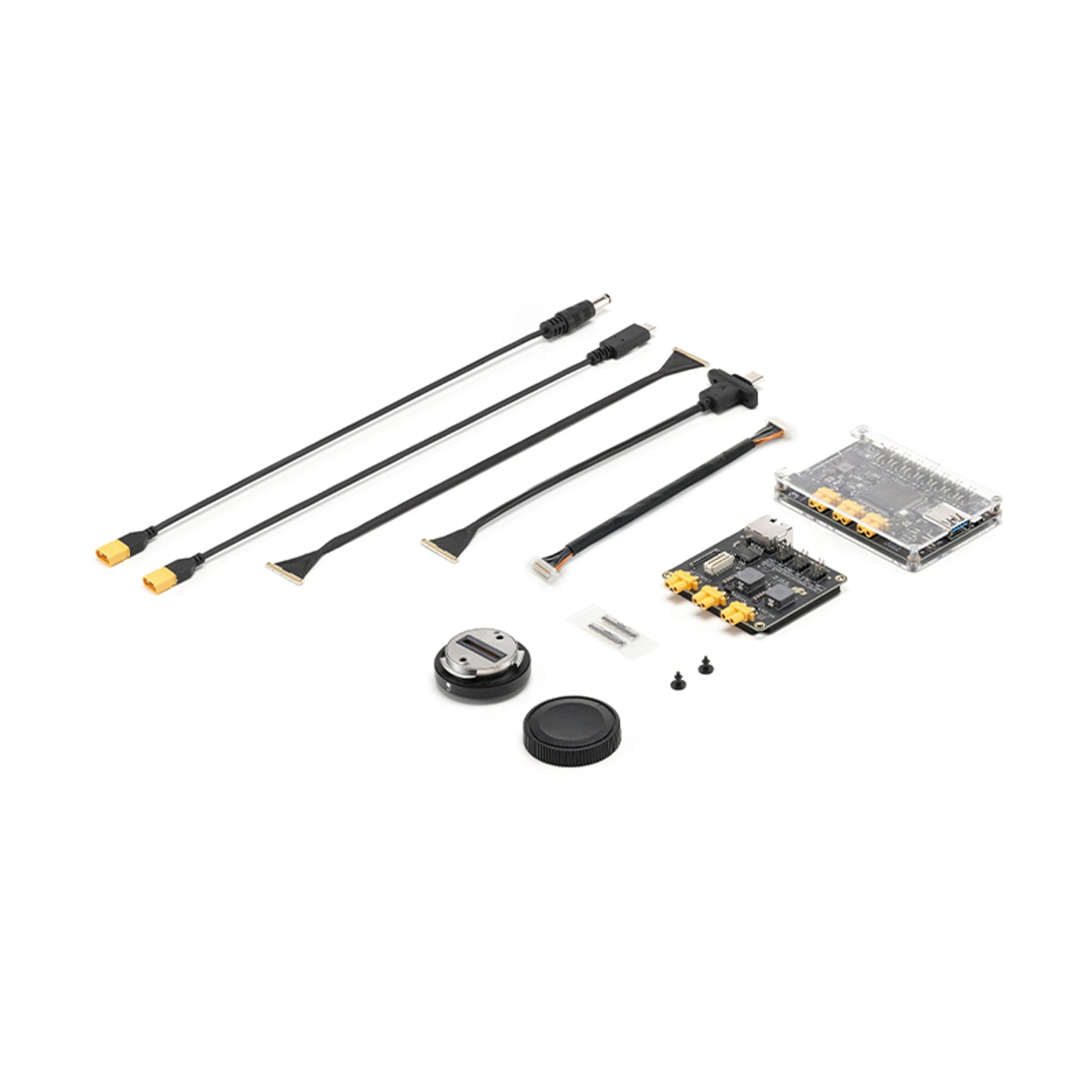

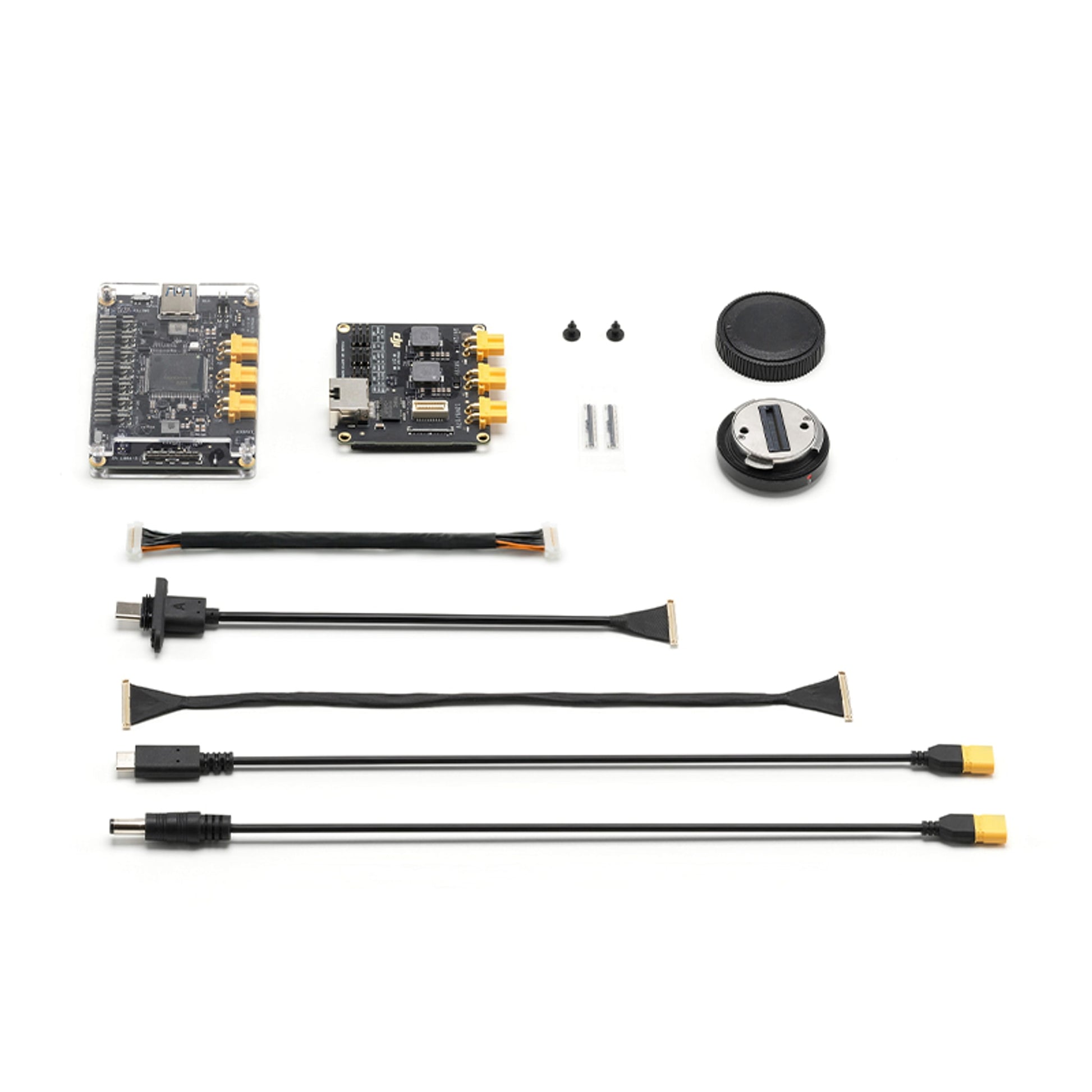

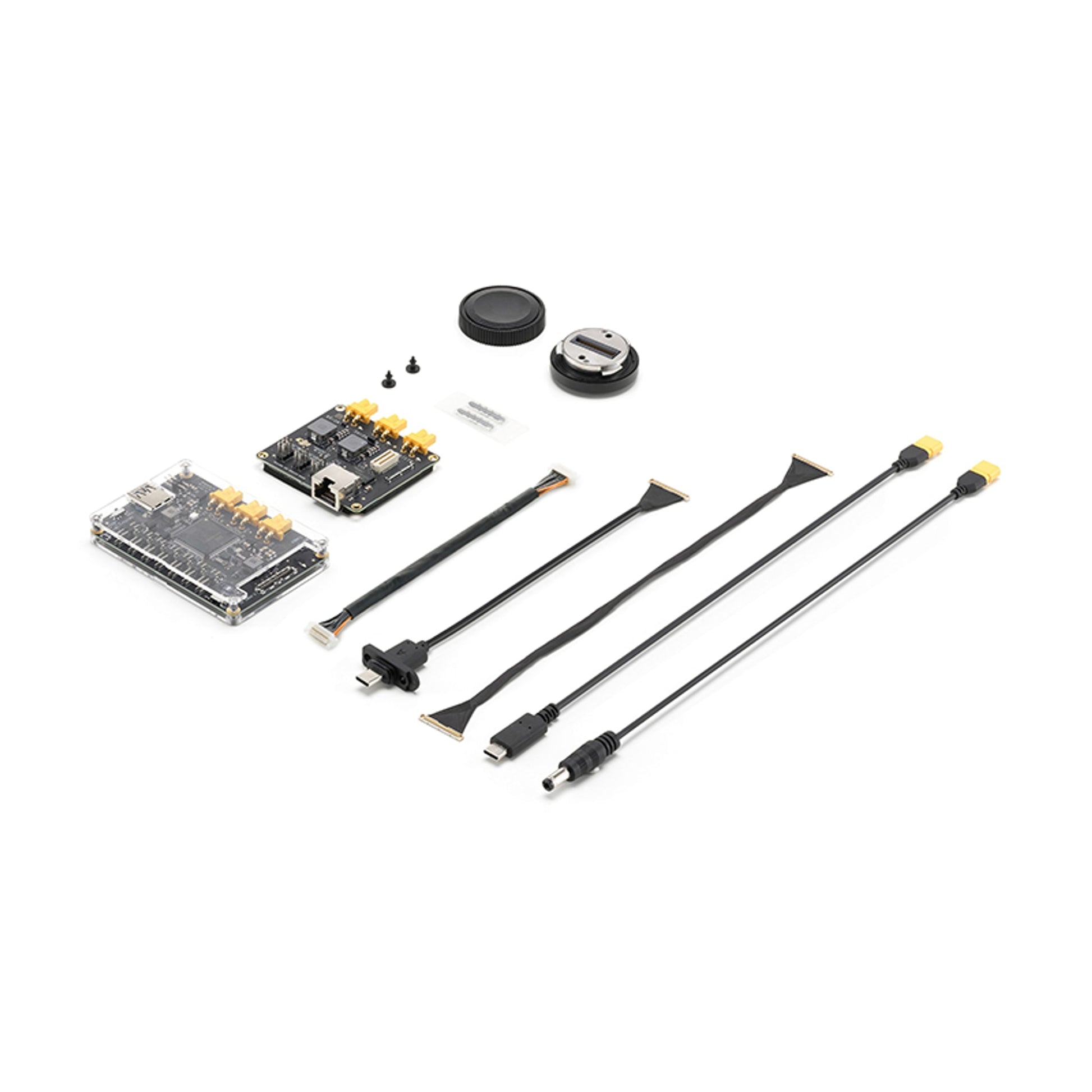

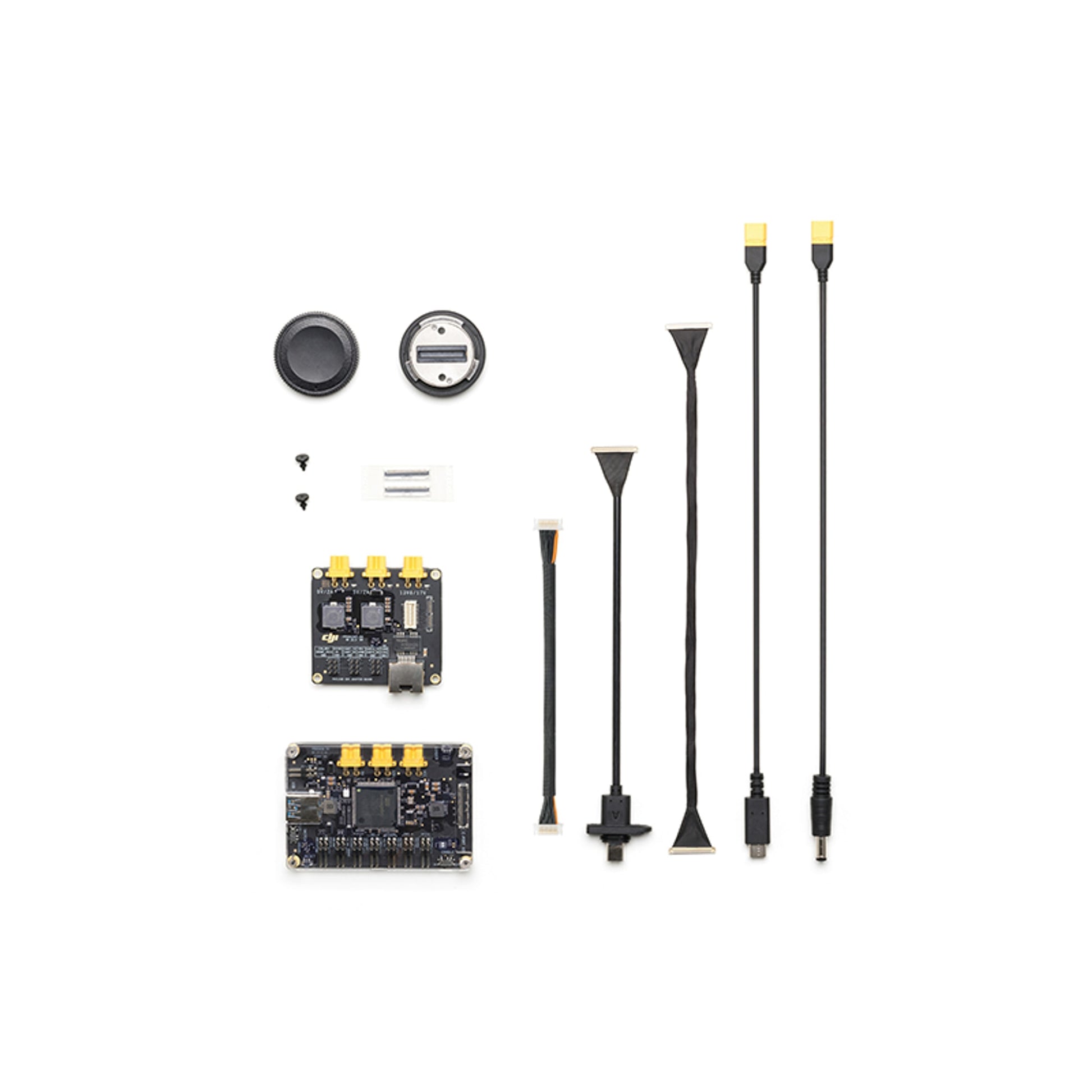

In the Box
- 1 x DJI E-Port V2 Development Board
- 1 x DJI E-Port V2 Coaxial Cable
- 1 x XT30 to DC5.5 Power Cable
- 1 x XT30 to USB-C Power Cable
- 1 x SKYPORT V3 Coaxial Cable
- 2 x SKYPORT V3 Coaxial Cable Connector Terminal
- 1 x SKYPORT V3 Adapter
- 1 x X-Port Adapter Board
- 1 x X-Port Electronic Cable
Specifications
| Development board dimensions | 89×60×13.4 mm (L×W×H) |
|---|---|
| XT30 VCC Output | 13.8 V/17.02 V/24 V, 5 A |
| XT30 12V Output | 12 V/4 A |
| XT30 5V Output | 5 V/4 A |
Compatibility
| DJI Matrice 400 |
|---|
