Spotlight for Multi-Payload Drone Platforms
Light Up the Night
Ideal for public safety, emergency rescue and more, Zenmuse S1 unlocks nighttime illumination with Matrice multi-payload drones.
Light It Up

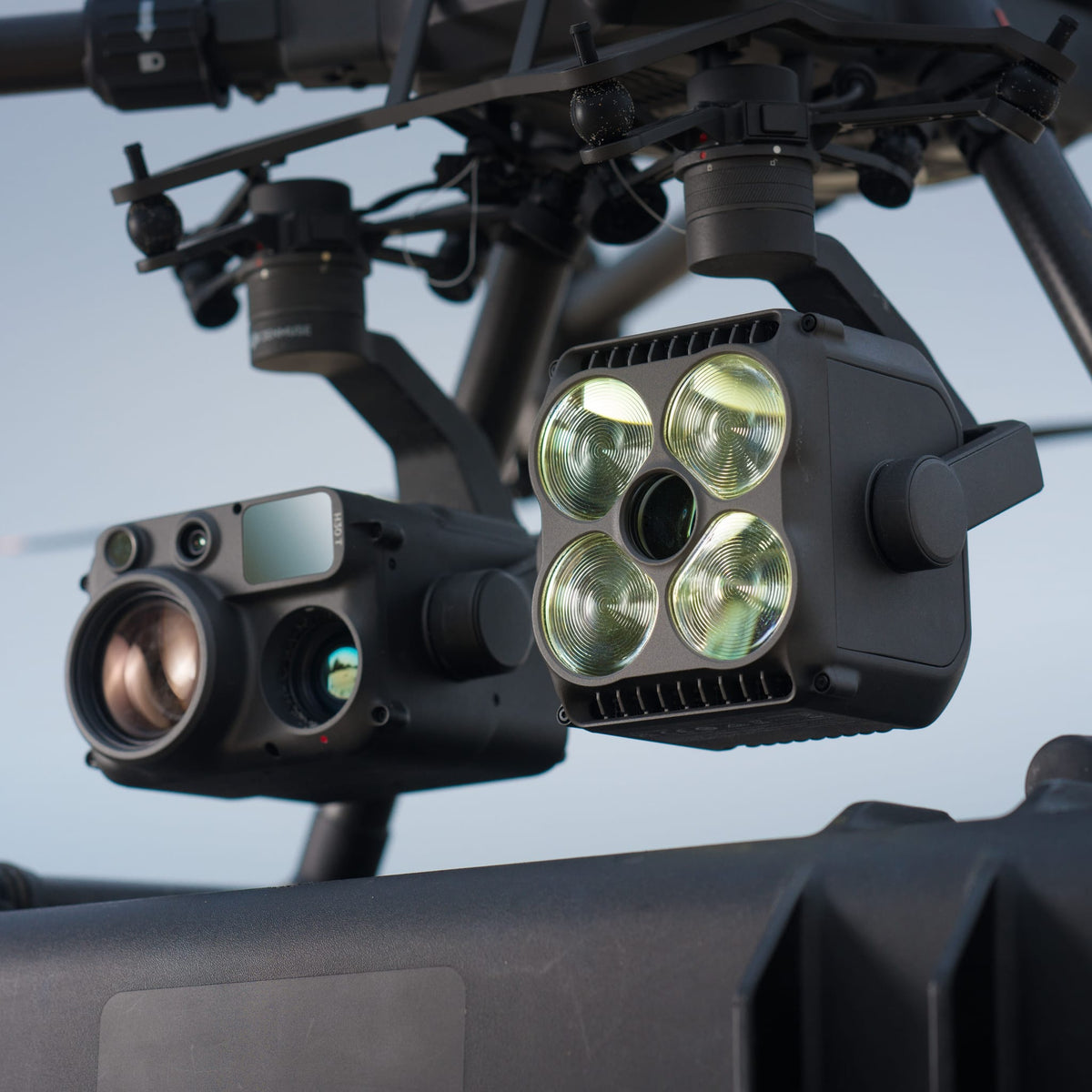

Light up the night with Zenmuse S1, a powerful spotlight payload designed for Matrice 300/400 series. Sporting LEP technology, S1 can be used to illuminate areas big and small, far and close, delivering reliable performance for a variety of applications.
- Low and high beam lighting modules
- Multiple dynamic lighting modes
- Ideal for emergency response applications
- Compatible with Matrice 300 and Matrice 400 series
Hi-Lux Performance
Zenmuse S1 provides 35 lux of central illuminance at 100 meters for effective illumination of subjects. With Zenmuse S1 you’ll be able to distinguish fine details with ample illumination.
Low Beam Lamps: FOV 15°, 13 lux@100 m & 6500K Colour Temperature
High Beam LEP: FOV 4°, 30 lux@100 m & 7500K Colour Temperature
Low Beam Mode
Ideal for short range search and inspection, Low Beam Mode provides a 15° FOV within a 150m range.
High Beam Mode
Suitable for long range use beyond 300m, High Beam Mode utilises S1’s central LEP (Laser Excited Phosphor) for ultra-bright performance with just 17 W power consumption.
Delivering a 4° FOV, High Beam Mode covers the illumination range of cameras exceeding 15X zoom.
Both-on Mode
Light up more with Both On Mode. Utilising both high and low beams, Both On Mode delivers improved central illuminance with a 15° FOV, suitable for illuminating large areas in a flash.
Strobe Mode
Need to quickly acquire attention? Deploy Strobe Mode for high-speed 5Hz strobe flashing. Strobe Mode is built for emergency response and public safety scenarios.
Vision Protection
On the ground? Zenmuse S1 automatically limits brightness to 40% to protect operator vision.
Internal Protection
The payload sports multiple protection mechanisms for temperature, overcurrent and power to ensure reliable performance, mission after mission.
Burn Protection
Zenmuse S1’s durable plastic casing has a maximum contact surface temperature of 50° C, effectively eliminating burn risks.
Shortcut Operation
Optimise operational efficiency with support for customisable controller shortcuts. Map adjustments and lighting modes to DJI RC Plus’ C buttons for quick, easy operation.
Light & Flexible
Weighing just 0.76 kg, its compact, lightweight design makes it easy to transport and allows it to fit conveniently inside the DJI Matrice 400 carrying case.
Mobile SDK
Unlock custom functionality with support for Mobile SDK and pair Zenmuse S1 with third-party mobile apps. Designed for users with specialised needs.
In the Box
- 1 x Zenmuse S1
- 1 x Lens Protection Cover
- 1 x Carrying Case
- 1 x Lens Cleaning Cloth
Specifications
Compatibility
-
DJI Matrice 400
-
Matrice 350 RTK
-
Matrice 300 RTK
*With DJI RC Plus
FAQ
Zenmuse S1 High Beam mode has an FOV of 4°, corresponding to an illuminated area of approximately 38 m² at a distance of 100 m.
Zenmuse S1 High Beam mode provides a narrower but highly penetrating beam spread, matching the field of view of Zenmuse H20/H30 series cameras at 15× zoom and above. It is suitable for long-distance observation while maintaining low power consumption.
Zenmuse S1 Both On mode provides a wide beam spread and high central illuminance. It is suitable for ground operation lighting and long-distance lighting.
2. When using Zenmuse S1 at night, there may be instances of false obstacle avoidance. You may disable obstacle avoidance if necessary and operate the aircraft and spotlight in relatively open and unobstructed areas.
3. Do not directly touch or scratch the coating on the surface of the spotlight lens with hard objects, as this may lead to a decrease in light output efficiency, affecting luminous flux and illuminance.
4. When cleaning the spotlight lens, be sure to use a soft, dry, clean cloth to wipe the lens surface. Do not use alkaline detergents.
5. Store the spotlight in a secure case and keep it dry and ventilated. The recommended ambient humidity is between 40% and 50%.
