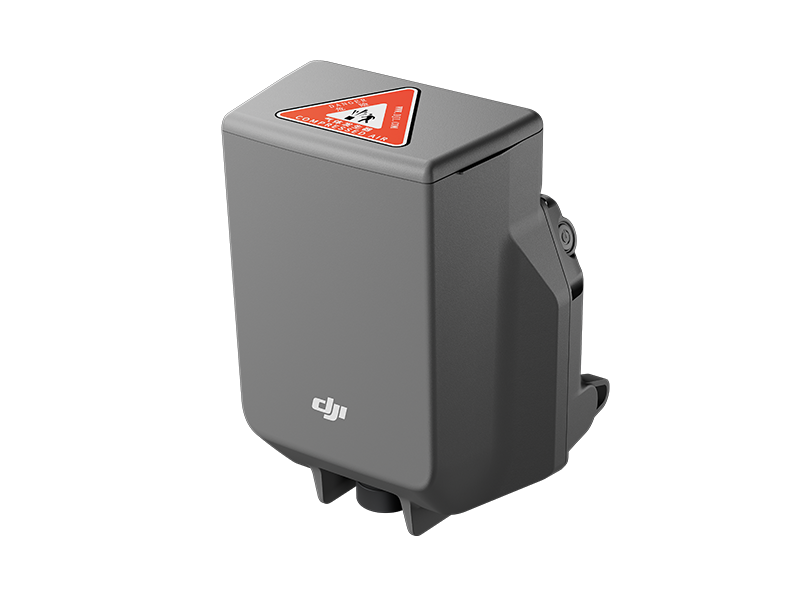

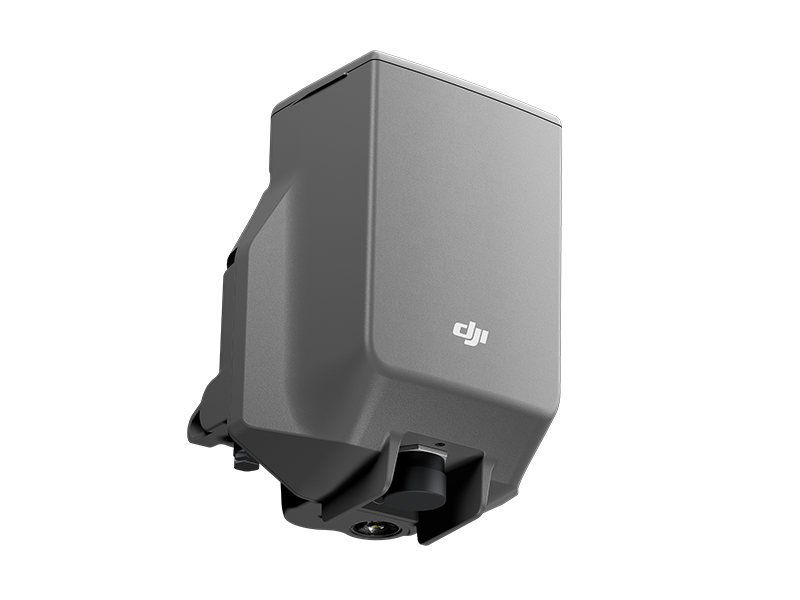

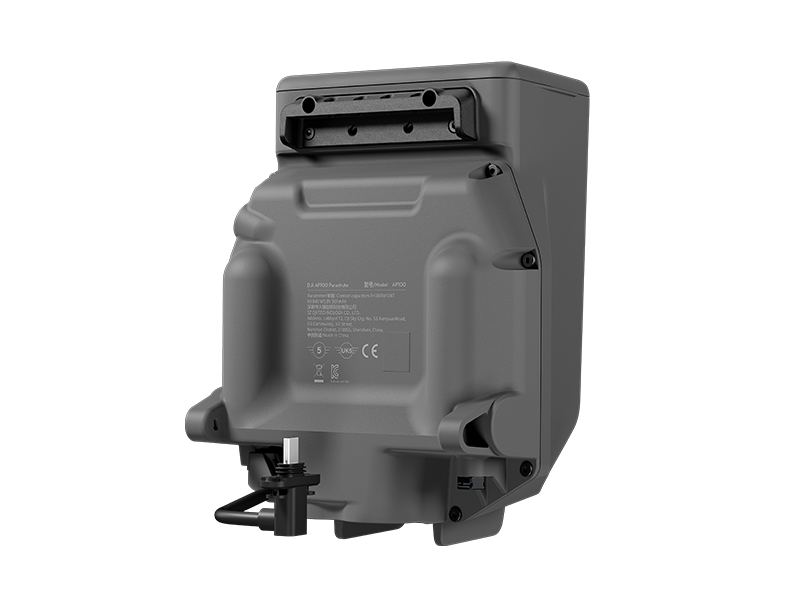

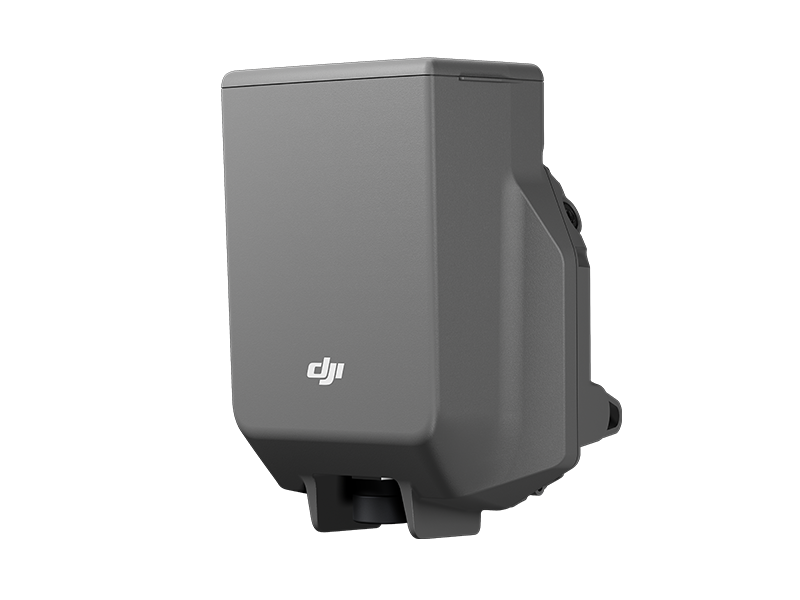

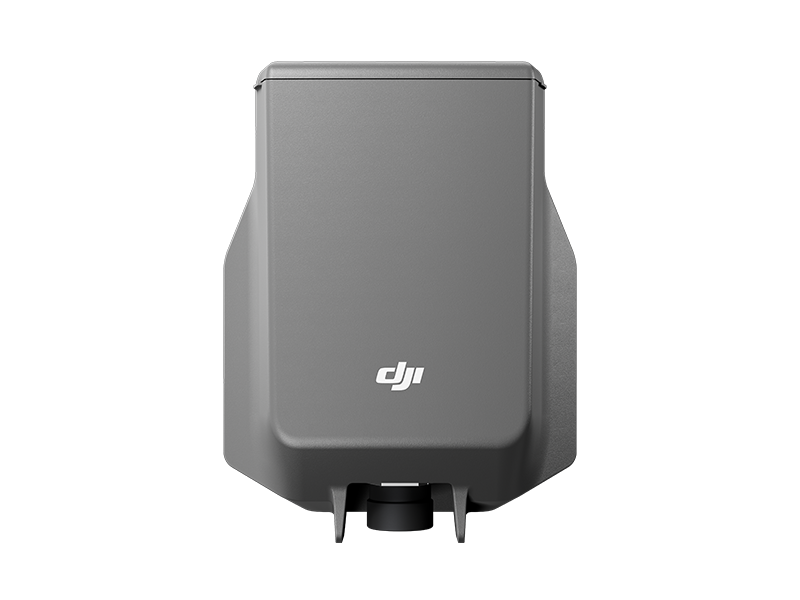

DJI AP100 Parachute

Item Code: M400P13

For the Priceless Below

Key Features:

• C6/UK6 Certified
• 600 ms Deployment Speed
• IP55 Rating

Overview

Matrice 400 Drone Parachute

Safe, Secure Flights

Q: What is the max takeoff weight supported by the parachute?

The parachute has a max load capacity of 15.8 kg. To ensure flight safety, the total takeoff weight of the aircraft must not exceed this limit.

Q: How does DJI AP100 Parachute help me comply with the European Union Aviation Safety Agency's (EASA) C5/C6 or the UK Civil Aviation Authority's (CAA) UK5/UK6 operational safety requirements?

Mounting DJI AP100 Parachute on an existing Matrice 400 meets C5 or UK5 operational safety requirements. Purchasing the DJI Matrice 400 (C6) Worry-Free Plus Combo meets C5/C6 and UK5/UK6 operational safety requirements.

Q: Does mounting DJI AP100 Parachute guarantee the absolute safety of the aircraft or persons and property on the ground?

DJI AP100 Parachute is a supplementary safety device designed to reduce the aircraft's descent rate during an emergency. It mitigates, but does not completely eliminate, the risk of damage to the drone and payload, property loss, or injury to persons on the ground. Operators must always follow safe flight practices.

Q: What is the descent speed after parachute deployment?

The stabilized descent speed after deployment is ≤ 5 m/s.

Q: Does the parachute support manual deployment?

Yes, it supports two manual deployment methods: 1. Manual Deployment via App: Users can trigger deployment by sliding the on-screen slider in the DJI Pilot 2 interface. 2. FTS Deployment*: When operating in the EU, UK, and other supported countries or regions, if the drone platform is equipped with a DJI Cellular Dongle 2** and connected to a 4G network, and the remote controller is also equipped with a DJI Cellular Dongle 2** or connected to Wi-Fi, users can input the Aircraft SN and verification code in the Flight Termination System (FTS) interface on DJI FlightHub 2 to manually trigger the FTS and deploy the parachute.

Q: What triggers automatic parachute deployment?

1. Automatic deployment is triggered when the built-in sensors (such as the IMU) of the drone platform or the parachute detect flight data anomalies*, such as abnormal pitch/roll angles or abnormal descent speeds. 2. The parachute also deploys automatically if the drone platform breaches a geocaging** boundary set in DJI Pilot 2.

Q: Will the parachute deploy while the drone platform is on the ground?

No. When the drone platform is on the ground and has not taken off, the parachute will not deploy automatically and cannot be triggered manually.

Q: What alarm functions does the parachute support?

Upon deployment, the parachute triggers continuous audible (beeping) and visual (light) alarms lasting approximately 1 hour*. This warns people on the ground to stay clear and assists operators in quickly locating the aircraft.

Q: What is the function of the physical button on the parachute?

It is used to turn off the audio and visual alarms after deployment.

Q: How long can the parachute operate after the drone platform powers off?

When fully charged, the backup power duration is approximately 1 hour.

Purpose built for DJI Matrice 400, the DJI AP100 Parachute adds emergency descent protection with manual and automatic deployment, independent backup power, and redundant monitoring.

≤ 600 ms

Response Time

≤ 5m/s

Descent Speed

Backup Power

935g

Weight

Safety First

DJI AP100 Parachute provides DJI Matrice 400 with a dedicated emergency recovery system for everyday operation.

Unlocking C5/UK5 and C6/UK6 operations, AP100 supports continuous self-checks, independent power, and both automatic and manual deployment for operational safety.

Automatic deployment responds in under 600 ms
Stabilised ≤ 5 m/s descent speed
Up to one hour of independent backup power
Lightweight ~935 g construction
Operates rain or shine with IP55 protection

Built for Rapid Recovery

The DJI AP100 Parachute provides pilots with an additional layer of protection, slowing descent speeds in emergencies to protect both the drone and those below.

AP100 continuously monitors fight status, providing real-time alerts via DJI Pilot 2 to ensure safe operation.

Plus, with support for both automatic and manual deployment, AP100 deploys quickly when needed, with a stabilised descent speed of ≤ 5 m/s when deployed at altitudes 30m or greater.

Intelligent Algorithms

AP100 functions as a self-contained safety module thanks to an independent flight control system and IMU sensors.

Intelligent algorithms continuously cross-validate data between the drone and the parachute in real time, significantly reducing the risk of accidental deployment.

Independent Power

Dual, built-in capacitors provide AP100 with up to 1 hour of independent backup power, helping ensure uninterrupted flight monitoring, without relying on main aircraft power.

Instant Motor Cut-Off

The DJI AP100 Parachute is designed to react quickly when a flight anomaly occurs. When triggered, the independent Flight Termination System cuts motor power within 600 ms stopping the rotors before parachute ejection to prevent entanglement.

Field Ready

The DJI AP100 Parachute shares Matrice 400's IP55 rating and operates from -20° to 50° C. It is built for use in dust, rain, heat, and cold conditions.

Easy Storage

DJI Matrice 400 fits directly into its carrying case with the AP100 Parachute attached, saving setup time in the field.

Lightweight Design

Weighing approx. 935 g, the AP100 preserves Matrice 400's 15.8kg maximum takeoff weight, with a minimal flight time impact of about 6 minutes .

Field-Ready Compliance

When paired with AP100, Matrice 400 meets EASA's C5/C6 and CAA's UK5/UK6 operational safety requirements.

AP100 also facilitates compliance for Standard Scenarios, including flights over populated urban areas (STS-01) and Beyond Visual Line of Sight (BVLOS) operations (STS-02).

Awareness Alarms

After deployment, the DJI AP100 emits audible and visual alarms for about 1 hour. Those alerts help warn people on the ground and support recovery.

Specifications

Dimensions	182×171×157 mm (L×W×H) (with bracket)
Weight	Approx. 935 g (with bracket)
Max Supported Takeoff Weight	15.8 kg
Operating Temperature	-20° to 50° C (-4° to 122° F)
Operating Altitude	0 to 4500 m
Ingress Protection Rating	IP55
Stabilized Descent Speed	≤ 5 m/s
Effective Deployment Altitude	≥ 30 m
Automatic Deployment Response Time	≤ 600 ms
Canopy Material	Nylon
Manual Deployment	Supports Manual Deployment via App and FTS Deployment*
Automatic Deployment	Supports Automatic Deployment triggered by flight anomalies* or Geocaging**
Audible and Visual Alarms	Alarms last for approx. 1 hour after deployment* and can be turned off via the physical button on the parachute.
Backup Power Duration	Approx. 1 hour
Self-Check	Continuously monitors the status of the gas generator and communication links, displaying alerts via the DJI Pilot 2 Health Management System (HMS) interface.
Independent FTS	Independent control and rotor stop links

Compatibility

DJI Matrice 400
