Overview
Connect external hardware equipment to your DJI Enterprise series aircraft with the DJI E-Port Development Kit to allow for SDK development and debugging.
Highlights
- Converts E-Port to XT30, USB 2.0 and UART/PPS Signal ports
- Supports SDK development
In the Box

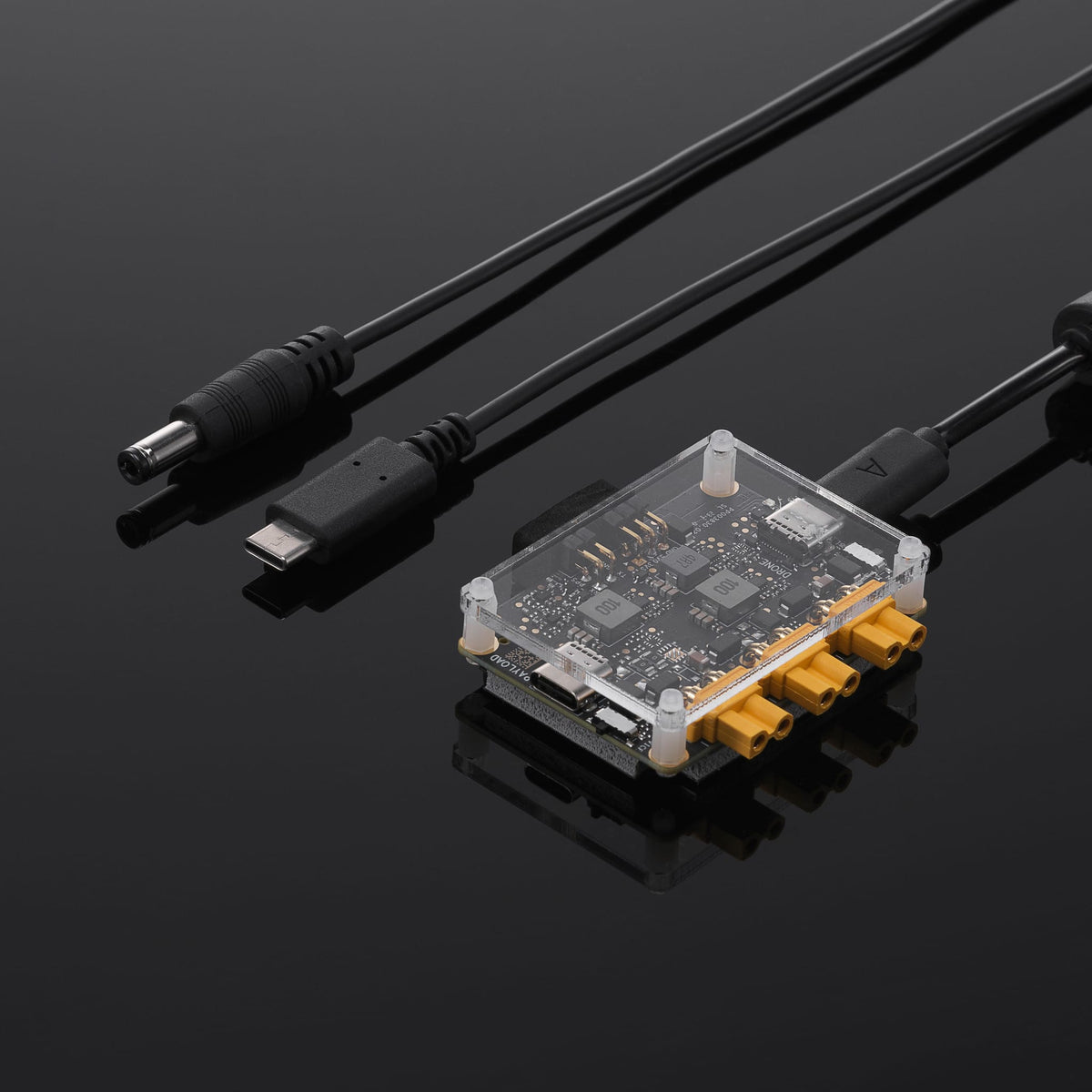

- 1 x E-Port Adapter Board
- 1 x Pin Header Protector
- 1 x E-Port Coaxial Cable (150 mm)
- 1 x XT30 to USB-C Power Cable (300 mm)
- 1 x XT30 to DC5.5 Power Cable (300 mm)
Specifications
| Adapter Board Dimensions | 55 x 40 x 9 mm |
|---|---|
| XT30 VCC Power Output - DJI Mavic 3E/3T | 12-17.6 V / 4 A |
| XT30 VCC Power Output - Matrice 30 Series | 19.2-26.1 V / 4 A |
| XT30 VCC Power Output - Matrice 300 RTK | 24 V / 4 A |
| XT30 VCC Power Output - Matrice 350 RTK | 24 V / 4 A |
| XT30 12V Power Output | 12 V / 2 A |
| XT30 5V Power Output | 5 V / 2 A |
Compatibility
| Matrice 350 RTK | |
|---|---|
| Matrice 300 RTK | |
| Matrice 30 Series | |
| DJI Mavic 3 Enterprise | |
| DJI Mavic 3 Thermal |
