DJI E-Port Development Kit

DJI E-Port Development Kit

SKU: M350P4 | EAN: 6941565961945

$76.00
$76.00
Sale Sold out
Taxes included. Shipping calculated at checkout. Free delivery over $199.

Notify me when available

We’ll email you when this item is back in stock.

Need help now?

View full details

Overview

Connect external hardware equipment to your DJI Enterprise series aircraft with the DJI E-Port Development Kit to allow for SDK development and debugging.

Highlights

  • Converts E-Port to XT30, USB 2.0 and UART/PPS Signal ports
  • Supports SDK development

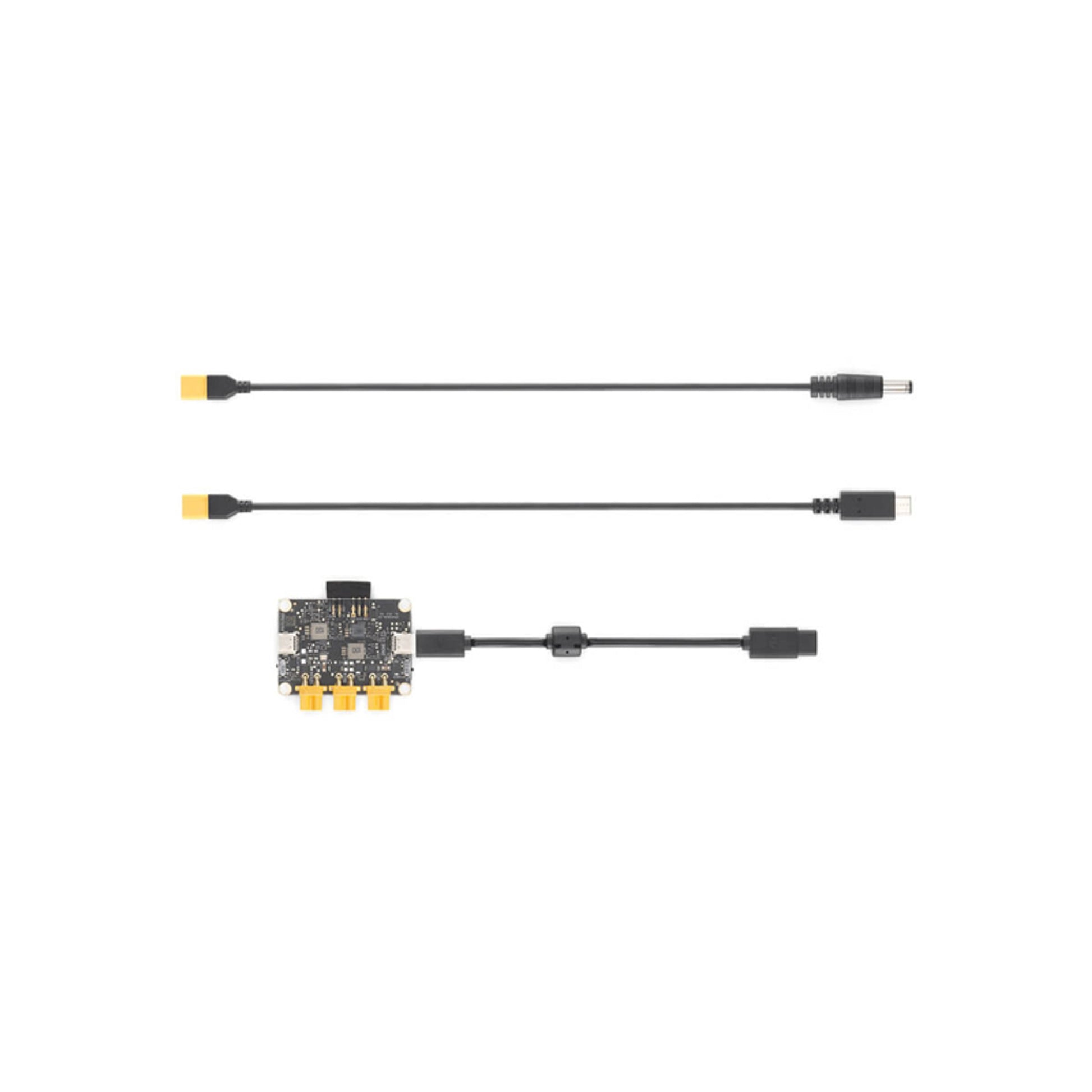

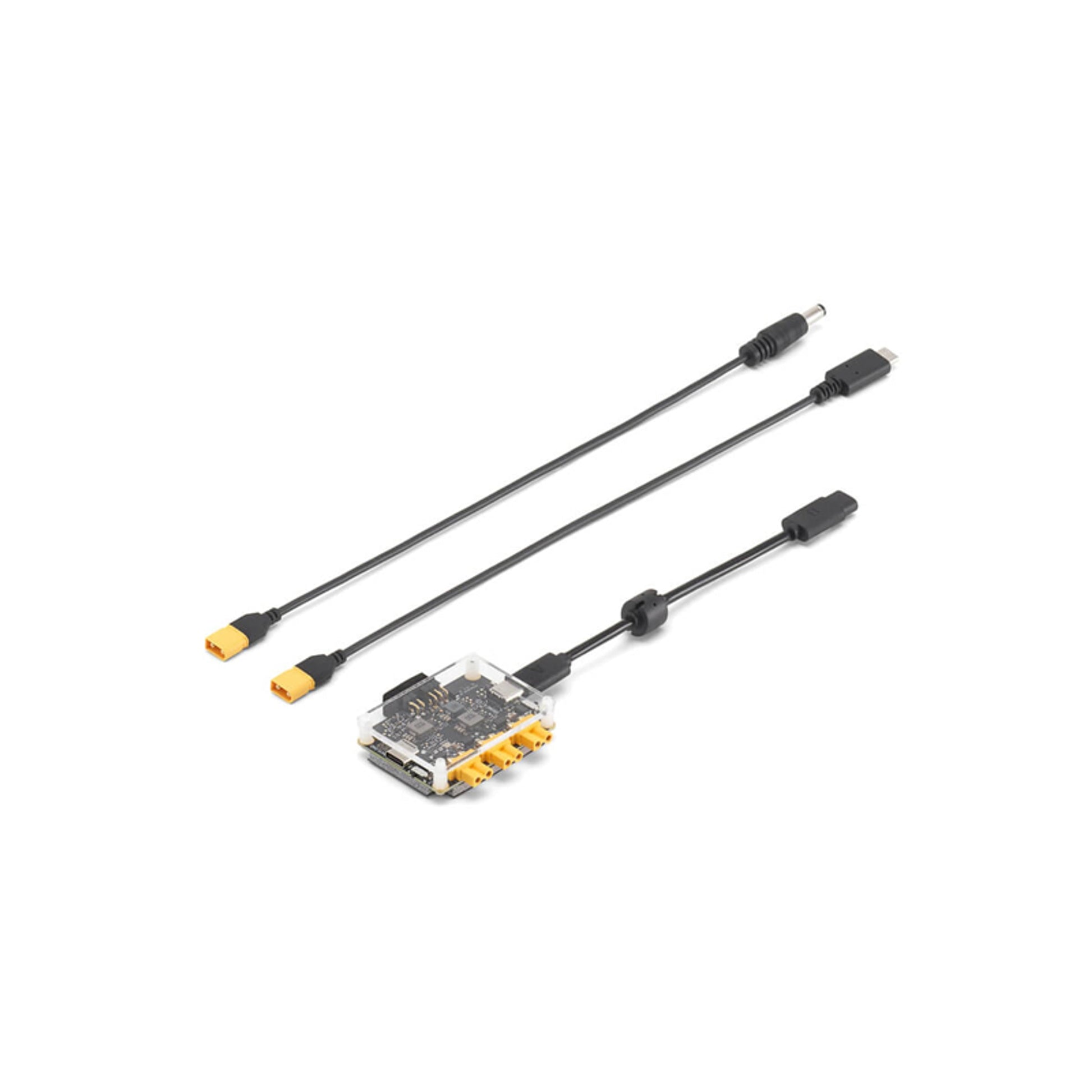

In the Box

  • 1 x E-Port Adapter Board
  • 1 x Pin Header Protector
  • 1 x E-Port Coaxial Cable (150 mm)
  • 1 x XT30 to USB-C Power Cable (300 mm)
  • 1 x XT30 to DC5.5 Power Cable (300 mm)

Specifications

Adapter Board Dimensions55 x 40 x 9 mm
XT30 VCC Power Output - DJI Mavic 3E/3T12-17.6 V / 4 A
XT30 VCC Power Output - Matrice 30 Series19.2-26.1 V / 4 A
XT30 VCC Power Output - Matrice 300 RTK24 V / 4 A
XT30 VCC Power Output - Matrice 350 RTK24 V / 4 A
XT30 12V Power Output12 V / 2 A
XT30 5V Power Output5 V / 2 A

Compatibility

Matrice 350 RTK
Matrice 300 RTK
Matrice 30 Series
DJI Mavic 3 Enterprise
DJI Mavic 3 Thermal
