| Takeoff Weight |
Standard Takeoff Weight: Approx. 249 gMax Takeoff Weight: Approx. 340 g |
| Dimensions |

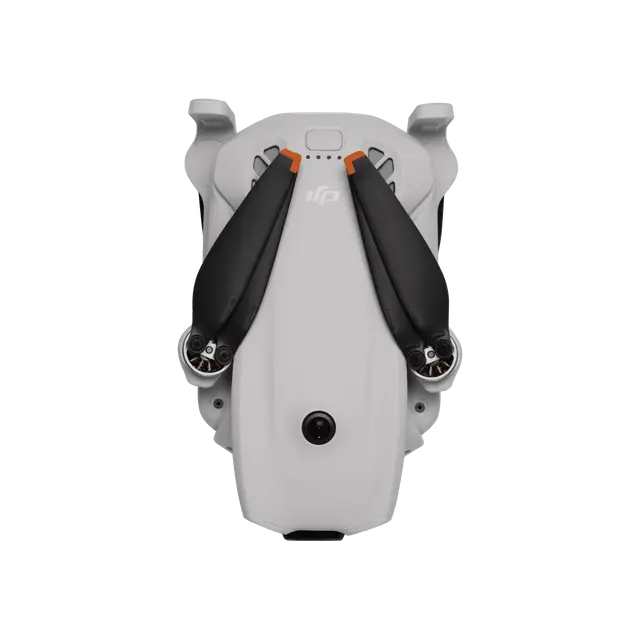

Folded (without propellers): 149×94×62 mm (L×W×H)Unfolded (without propellers): 183×251×79 mm (L×W×H) |
| Max Ascent Speed |
7 m/s (Sport mode)5 m/s (Normal mode)3 m/s (Cine mode) |
| Max Descent Speed |
7 m/s (Sport mode)5 m/s (Normal mode)3 m/s (Cine mode) |
| Max Horizontal Speed |
Up to 18 m/s (Sport mode, using DJI Lito 1 Intelligent Flight Battery)12 m/s (Normal mode)Up to 12 m/s* (tracking status) |
| Max Takeoff Altitude |
4500 m (using DJI Lito 1 Intelligent Flight Battery)3500 m (using DJI Lito Series Intelligent Flight Battery Plus*) |
| Max Flight Time |
36 minutes (using DJI Lito 1 Intelligent Flight Battery)52 minutes (using DJI Lito Series Intelligent Flight Battery Plus*) |
| Typical Flight Time |
23 minutes (using DJI Lito 1 Intelligent Flight Battery)37 minutes (using DJI Lito Series Intelligent Flight Battery Plus*) |
| Max Flight Distance |
20 km (using DJI Lito 1 Intelligent Flight Battery)32 km (using DJI Lito Series Intelligent Flight Battery Plus*) |
| Max Wind Speed Resistance |
10.7 m/s |
| Max Pitch Angle |
35° |
| Operating Temperature |
0° to 40° C (32° to 104° F) |
| Global Navigation Satellite System |
GPS + Galileo + BeiDou |
| Hovering Accuracy Range |
Vertical:±0.1 m (with vision positioning)±0.5 m (with satellite positioning)Horizontal:±0.3 m (with vision positioning)±1.5 m (with satellite positioning) |
| Internal Storage |
None |
| Class |
C0 (EU) |
| Image Sensor |
1/2-inch CMOS, 48MP Effective Pixels |
| Lens |
FOV: 79°Format Equivalent: 26.2 mmAperture: f/1.8Focus: 4 m to ∞ |
| ISO Range |
VideoNormal:100-12800Slow Motion:100-12800Photo100-12800 (12 MP)100-3200 (48 MP) |
| Shutter Speed |
12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure)48MP Photo: 1/8000-2 s |
| Max Image Size |
8000×6000 |
| Still Photography Modes |
Single Shot: 12 MP and 48 MPBurst Shooting: 12 MP, 3/5 framesAutomatic Exposure Bracketing (AEB): 12 MP, 3/5 frames at 2/3 EV stepTimed: 12 MP, 2/3/5/7/10/15/20/30/60 s |
| Photo Format |
JPEG/DNG (RAW) |
| Video Resolution |
H.2654K: 3840×2160@24/25/30/48/50/60/100*fpsFHD: 1920×1080@24/25/30/48/50/60/100*fps2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fpsH.264FHD: 1920×1080@24/25/30/48/50/60fps2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps |
| Video Format |
MP4 (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max Video Bitrate |
130 Mbps |
| Supported File System |
exFAT |
| Color Mode and Sampling Method |
Normal:8-bit 4:2:0 (H.264)10-bit 4:2:0 (H.265) |
| Camera FOV |
Wide |
| Digital Zoom |
Video4K: 1-3xFHD: 1-4x2.7K Vertical Shooting: 1-3xPhoto12 MP: 1-3x48 MP: 1-3x |
| Stabilization |
3-axis mechanical gimbal (tilt, roll, pan) |
| Mechanical Range |
Tilt: -126° to 67°Roll: -49° to 49°Pan: -30° to 30° |
| Controllable Range (Tilt) |
-90° to 40° |
| Max Control Speed (Tilt) |
100°/s |
| Angular Vibration Range |
±0.01° |
| Sensing Type |
Omnidirectional monocular vision system, supplemented with an infrared sensor at the bottom of the aircraft |
| Forward |
Detection Range: 0.5-20 mEffective Sensing Speed: Flight Speed ≤ 12 m/s |
| Backward |
Detection Range: 0.5-15 mEffective Sensing Speed: Flight Speed ≤ 8 m/s |
| Lateral |
Detection Range: 0.5-15 mEffective Sensing Speed: Flight Speed ≤ 8 m/s |
| Upward |
Detection Range: 0.5-15 mEffective Sensing Speed: Flight Speed ≤ 5 m/s |
| Downward |
Detection Range: 0.5-15 mEffective Sensing Speed: Flight Speed ≤ 5 m/s |
| Downward-Facing Infrared Sensor |
Measurement Range: 0.3-8 m (reflectivity > 10%) |
| Operating Environment |
Forward, Backward, Left, Right, and Upward:Surfaces with discernible patterns and adequate lighting (lux > 5, normal indoor lighting conditions)Downward:Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 5, normal indoor lighting conditions) |
| Video Transmission System |
O4 |
| Live View Quality |
With Remote Controller: Up to 1080p/60fps |
| Operating Frequency |
2.4000-2.4835 GHz5.1700-5.2500 GHz5.7250-5.8500 GHz |
| Transmitter Power (EIRP) |
2.4 GHz:< 30 dBm (IC)< 20 dBm (CE/SRRC/MIC)5.1 GHz:< 23 dBm (CE)5.8 GHz:< 30 dBm (IC)< 30 dBm (SRRC)< 14 dBm (CE) |
| Max Transmission Distance (unobstructed, free of interference) |
IC: 15 kmCE: 8 kmSRRC: 8 kmMIC: 8 km |
| Max Transmission Distance (unobstructed, with interference) |
Strong Interference (urban landscape): Approx. 1-1.5 kmMedium Interference (suburban landscape): Approx. 2.5-7 kmLow Interference (suburb/seaside): Approx. 7-10 km |
| Max Transmission Distance (obstructed, with interference) |
Low Interference and Obstructed by Buildings: Approx. 0-0.5 kmLow Interference and Obstructed by Trees: Approx. 0.5-1.5 km |
| Max Download Speed |
Up to O4:10 MB/s (with DJI RC-N3 Remote Controller)10 MB/s (with DJI RC 2)Wi-Fi 6:Up to 50 MB/s* |
| Lowest Latency |
With Remote Controller: Approx. 120 ms |
| Antenna |
2 antennas (1T2R) |
| Protocol |
802.11 a/b/g/n/ac/ax |
| Operating Frequency |
2.4000-2.4835 GHz5.7250-5.850 GHz |
| Transmitter Power (EIRP) |
2.4 GHz:< 20 dBm (IC/CE/SRRC/MIC)5.8 GHz:< 23 dBm (IC/SRRC)< 14 dBm (CE) |
| Protocol |
Bluetooth 5.4 |
| Operating Frequency |
2.4000-2.4835 GHz |
| Transmitter Power (EIRP) |
< 10 dBm |

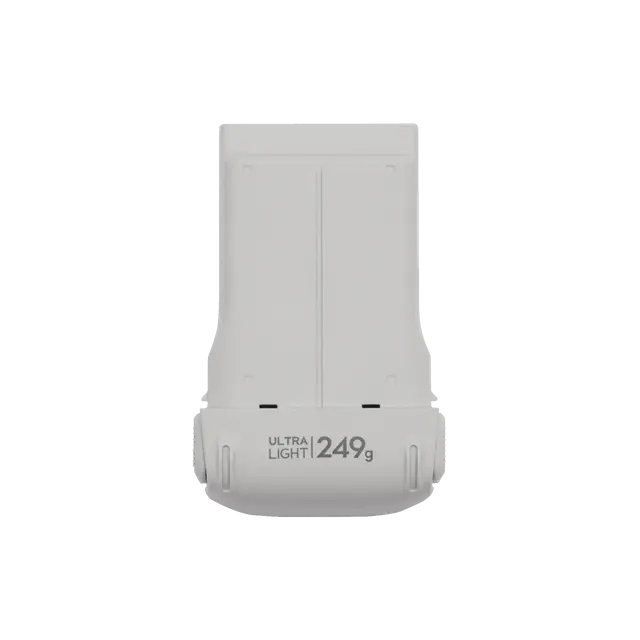

| Capacity |
DJI Lito 1 Intelligent Flight Battery: 2590 mAhDJI Lito Series Intelligent Flight Battery Plus*: 4680 mAh |
| Weight |
DJI Lito 1 Intelligent Flight Battery: Approx. 79 gDJI Lito Series Intelligent Flight Battery Plus*: Approx. 118 g |
| Nominal Voltage |
DJI Lito 1 Intelligent Flight Battery: 7.32 VDJI Lito Series Intelligent Flight Battery Plus*: 7.16 V |
| Max Charging Voltage |
DJI Lito 1 Intelligent Flight Battery: 8.6 VDJI Lito Series Intelligent Flight Battery Plus*: 8.6 V |
| Battery Type |
Li-ion |
| Chemical System |
LiNiMnCoO2 |
| Energy |
DJI Lito 1 Intelligent Flight Battery: 18.96 WhDJI Lito Series Intelligent Flight Battery Plus*: 33.51 Wh |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| Charging Time |
DJI Lito 1 Intelligent Flight Battery:1 battery can be fully charged in approx. 73 minutes by charging through the drone using the DJI 65W Portable Charger.1 battery can be fully charged in approx. 45 minutes using the Charging Hub and DJI 65W Portable Charger.3 batteries can be fully charged in approx. 87 minutes using the Charging Hub and DJI 65W Portable Charger.DJI Lito Series Intelligent Flight Battery Plus*:1 battery can be fully charged in approx. 102 minutes by charging through the drone using the DJI 65W Portable Charger.1 battery can be fully charged in approx. 56 minutes using the Charging Hub and DJI 65W Portable Charger.3 batteries can be fully charged in approx. 130 minutes using the Charging Hub and DJI 65W Portable Charger. |
| Input |
5 V/9 V/12 V/15 V/20 V, up to 3.25 A |
| Output (charging) |
5 V/9 V/12 V/15 V/20 V, up to 3 A |
| Charging Type |
DJI Lito 1 Intelligent Flight Battery: Three batteries charged in parallel*DJI Lito Series Intelligent Flight Battery Plus**: Three batteries charged in parallel* |
| Compatibility |
DJI Lito 1 Intelligent Flight BatteryDJI Lito Series Intelligent Flight Battery Plus* |
| Recommended Charger |
DJI 65W Portable ChargerUSB Power Delivery chargers |
| Max Operating Time |
Without Charging Any Mobile Device: 3.5 hoursWhen Charging a Mobile Device: 1.5 hours |
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| Charging Time |
Approx. 2 hours |
| Charging Input |
5 V, 2 A |
| Battery Capacity |
2600 mAh |
| Weight |
Approx. 320 g |
| Dimensions |
104.2×150×45.2 mm (L×W×H) |
| Max Supported Mobile Device Size |
180×86×10 mm (L×W×H) |
| Operating Frequency |
2.4000-2.4835 GHz5.170-5.250 GHz5.725-5.850 GHz |
| Transmitter Power (EIRP) |
2.4 GHz:< 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)5.1 GHz:< 23 dBm (CE)5.8 GHz:< 33 dBm (FCC)< 14 dBm (CE)< 30 dBm (SRRC) |
| Mobile Device App |
DJI Fly |
| Required Operating System |
iOS 13.0 or laterAndroid 7.0 or later |
