| Takeoff Weight |
Standard Takeoff Weight: Approx. 249 g Max Takeoff Weight: Approx. 340 g* |
| Dimensions |

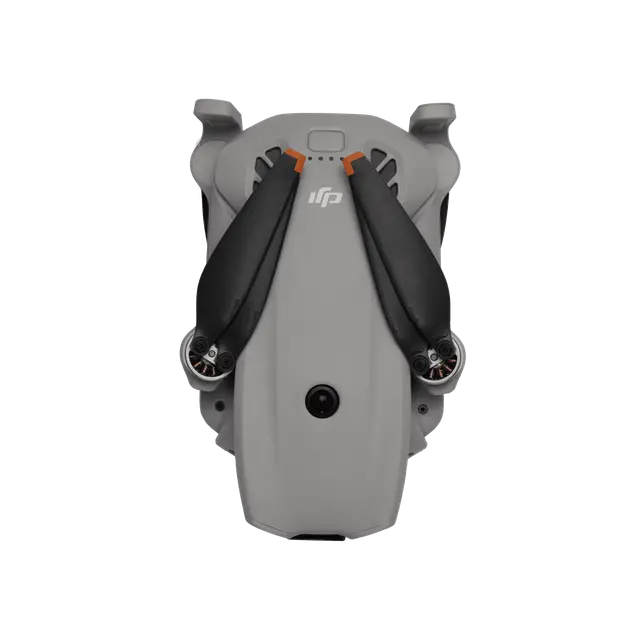

Folded (without propellers): 144×94×62 mm (L×W×H) Unfolded (without propellers): 183×251×79 mm (L×W×H) |
| Max Ascent Speed |
7 m/s (Sport mode) 5 m/s (Normal mode) 3 m/s (Cine mode) |
| Max Descent Speed |
7 m/s (Sport mode) 5 m/s (Normal mode) 3 m/s (Cine mode) |
| Max Horizontal Speed |
18 m/s (Sport mode, using DJI Lito X1 Intelligent Flight Battery) 12 m/s (Normal mode) 12 m/s* (tracking status) |
| Max Takeoff Altitude |
4500 m |
| Max Flight Time |
36 minutes |
| Typical Flight Time |
23 minutes |
| Max Flight Distance |
21 km |
| Max Wind Speed Resistance |
10.7 m/s |
| Max Pitch Angle |
35° |
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
| Global Navigation Satellite System |
GPS + Galileo + BeiDou |
| Hovering Accuracy Range |
Vertical: ±0.1 m (with vision positioning) ±0.5 m (with satellite positioning) Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with satellite positioning) |
| Internal Storage |
42 GB |
| Class |
C0/C1 (EU) |
| Image Sensor |
1/1.3-inch CMOS, 48MP Effective Pixels |
| Lens |
FOV: 82.1° Format Equivalent: 24 mm Aperture: f/1.7 Focus: 1 m to ∞ |
| ISO Range |
Video Normal: 100-12800 (Normal) 100-3200 (D-Log M) Slow Motion: 100-6400 (Normal) 100-3200 (D-Log M) Photo 100-6400 (12 MP) 100-3200 (48 MP) |
| Shutter Speed |
12MP Photo: 1/10000-2 s (2.5-8 s for simulated long exposure) 48MP Photo: 1/16000-2 s |
| Max Image Size |
8064×6048 |
| Still Photography Modes |
Single Shot: 12 MP and 48 MP Burst Shooting: 12 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames at 2/3 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s |
| Photo Format |
JPEG/DNG (RAW) |
| Video Resolution |
H.265 4K: 3840×2160@24/25/30/48/50/60/100*fps FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps H.264 FHD: 1920×1080@24/25/30/48/50/60fps 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps |
| Video Format |
MP4 (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max Video Bitrate |
130 Mbps |
| Supported File System |
exFAT |
| Color Mode and Sampling Method |
Normal: 8-bit 4:2:0 (H.264) 10-bit 4:2:0 (H.265) D-Log M: 10-bit 4:2:0 (H.265) |
| Camera FOV |
Wide |
| Digital Zoom |
Video 4K: 1-3x FHD: 1-4x 2.7K Vertical Shooting: 1-3x Photo 12 MP: 1-3x 48 MP: 1-3x |
| Stabilization |
3-axis mechanical gimbal (tilt, roll, pan) |
| Mechanical Range |
Tilt: -126° to 67° Roll: -49° to 49° Pan: -30° to 30° |
| Controllable Range (Tilt) |
-90° to 40° |
| Max Control Speed (Tilt) |
100°/s |
| Angular Vibration Range |
±0.01° |
| Sensing Type |
Omnidirectional monocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft |
| Forward |
Measurement Range: 0.5-10 m Detection Range: 0.5-20 m Effective Sensing Speed: Flight Speed ≤ 12 m/s |
| Backward |
Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 8 m/s |
| Lateral |
Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 8 m/s |
| Upward |
Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 5 m/s |
| Downward |
Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 5 m/s |
| 3D Infrared Sensor |
Forward-Facing LiDAR Measurement Range: 0.5-36 m (no small obstacles, reflectivity > 10%) FOV: Up and Down 80°, Left and Right 60° Downward-Facing Infrared Sensor Measurement Range: 0.3-8 m (reflectivity > 10%) |
| Operating Environment |
Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 5, normal indoor lighting conditions) Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 5, normal indoor lighting conditions) |
| Video Transmission System |
O4 |
| Live View Quality |
With Remote Controller: Up to 1080p/60fps |
| Operating Frequency |
2.4000-2.4835 GHz 5.1700-5.2500 GHz 5.7250-5.8500 GHz |
| Transmitter Power (EIRP) |
2.4 GHz: < 30 dBm (IC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 30 dBm (IC) < 30 dBm (SRRC) < 14 dBm (CE) |
| Max Transmission Distance (unobstructed, free of interference) |
IC: 15 km CE: 8 km SRRC: 8 km MIC: 8 km |
| Max Transmission Distance (unobstructed, with interference) |
Strong Interference (urban landscape): Approx. 1-1.5 km Medium Interference (suburban landscape): Approx. 2.5-7 km Low Interference (suburb/seaside): Approx. 7-10 km |
| Max Transmission Distance (obstructed, with interference) |
Low Interference and Obstructed by Buildings: Approx. 0-0.5 km Low Interference and Obstructed by Trees: Approx. 0.5-1.5 km |
| Max Download Speed |
O4: 10 MB/s (with DJI RC-N3 Remote Controller) 10 MB/s (with DJI RC 2) Wi-Fi 6: Up to 50 MB/s* |
| Lowest Latency |
With Remote Controller: Approx. 120 ms |
| Antenna |
2 antennas (1T2R) |
| Protocol |
802.11 a/b/g/n/ac/ax |
| Operating Frequency |
2.4000-2.4835 GHz 5.7250-5.850 GHz |
| Transmitter Power (EIRP) |
2.4 GHz: < 20 dBm (IC/CE/SRRC/MIC) 5.8 GHz: < 23 dBm (IC/SRRC) < 14 dBm (CE) |
| Protocol |
Bluetooth 5.4 |
| Operating Frequency |
2.4000-2.4835 GHz |
| Transmitter Power (EIRP) |
< 10 dBm |

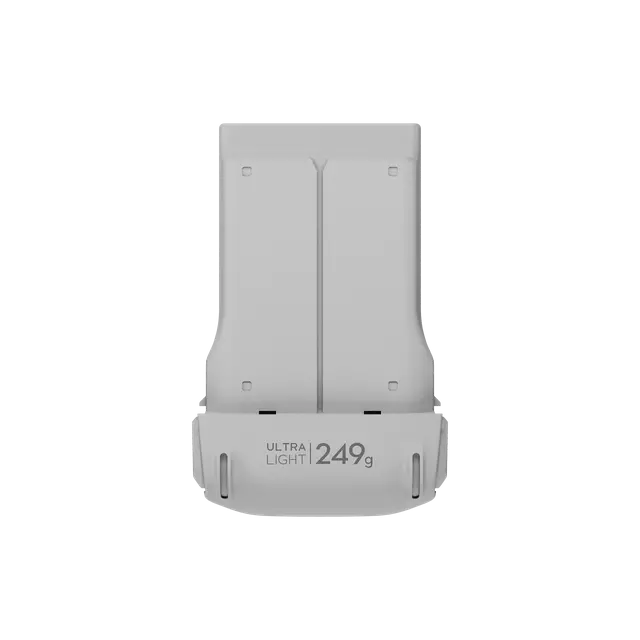

| Capacity |
2788 mAh |
| Weight |
Approx. 74 g |
| Nominal Voltage |
7 V |
| Max Charging Voltage |
8.6 V |
| Battery Type |
Li-ion |
| Chemical System |
LiNiMnCoO2 |
| Energy |
19.52 Wh |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| Charging Time |
1 battery can be fully charged in approx. 73 minutes by charging through the drone using the DJI 65W Portable Charger. 1 battery can be fully charged in approx. 45 minutes using the Charging Hub and DJI 65W Portable Charger. 3 batteries can be fully charged in approx. 87 minutes using the Charging Hub and DJI 65W Portable Charger. |
| Max Operating Time |
Without Charging Any Mobile Device: 3.5 hours When Charging a Mobile Device: 1.5 hours |
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| Charging Time |
Approx. 2 hours |
| Charging Input |
5 V, 2 A |
| Battery Capacity |
2600 mAh |
| Weight |
Approx. 320 g |
| Dimensions |
104.2×150×45.2 mm (L×W×H) |
| Max Supported Mobile Device Size |
180×86×10 mm (L×W×H) |
| Operating Frequency |
2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz |
| Transmitter Power (EIRP) |
2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 30 dBm (SRRC) |
| Mobile Device App |
DJI Fly |
| Required Operating System |
iOS 13.0 or later Android 7.0 or later |
| Input |
5 V/9 V/12 V/15 V/20 V, up to 3.25 A |
| Output (charging) |
5 V/9 V/12 V/15 V/20 V, up to 3 A |
| Charging Type |
Three batteries charged in parallel |
| Compatibility |
DJI Lito X1 Intelligent Flight Battery DJI Lito Series Intelligent Flight Battery Plus |
| Model |
RC331 |
| Max Operating Time |
3 hours |
| Operating Temperature |
-10° to 40° C (14° to 104° F) |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| Charging Time |
1.5 hours |
| Charging Type |
Supports up to 9V/3A charging |
| Wi-Fi Protocol |
802.11 a/b/g/n/ac/ax |
| Wi-Fi Operating Frequency |
2.4000-2.4835 GHzl 5.150-5.250 GHzl 5.725-5.850 GHz |
| Wi-Fi Transmitter Power (EIRP) |
2.4 GHz: < 26 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (FCC/CE/SRRC/MIC) 5.8 GHz: < 23 dBm (FCC/SRRC) < 14 dBm (CE) |
| Bluetooth |
BT 5.2 |
| Bluetooth Transmitter Power (EIRP) |
2.400-2.4835 GHz: < 10 dBm |
| Global Navigation Satellite System |
GPS + BeiDou + Galileo |
| Internal Storage Capacity |
32 GB + expandable storage (via microSD card) |
| Supported SD Cards |
SDXC or UHS-I microSD cards |
| Screen Brightness |
700 nits |
| Screen Resolution |
1920×1080 |
| Screen Size |
5.5-inch |
| Screen Frame Rate |
60fps |
| Screen Touch Control |
10-point multi-touch |
| Battery Capacity |
6200 mAh |
| Dimensions |
Without control sticks: 168.4×132.5×46.2 mm With control sticks: 168.4×132.5×62.7 mm |
| Weight |
Approx. 420 g |
| Video Transmission Antenna |
4 antennas, 2T4R |
| Video Transmission Operating Frequency |
2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz |
| Transmitter Power (EIRP) |
2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 30 dBm (SRRC) |
| Max Takeoff Altitude |
3500 m |
| Max Flight Time |
52 minutes |
| Typical Flight Time |
37 minutes |
| Max Flight Distance |
32 km |
| Capacity |
4680 mAh |
| Weight |
Approx. 118 g |
| Nominal Voltage |
7.16 V |
| Max Charging Voltage |
8.6 V |
| Battery Type |
Li-ion |
| Chemical System |
LiNiMnCoO2 |
| Energy |
33.51 Wh |
| Charging Temperature |
5° to 40° C (41° to 104° F) |
| Charging Time |
DJI Lito Series Intelligent Flight Battery Plus: 1 battery can be fully charged in approx. 102 minutes by charging through the drone using the DJI 65W Portable Charger. 1 battery can be fully charged in approx. 56 minutes using the Charging Hub and DJI 65W Portable Charger. 3 batteries can be fully charged in approx. 130 minutes using the Charging Hub and DJI 65W Portable Charger. |
