DJI O4 Air Unit Pro combines an FPV camera, onboard recording, and the live transmission link in a compact system for custom aircraft. The larger 1/1.3-inch sensor records up to 4K/120fps and supports 10-bit D-Log M.For Australian builds, choose the goggles and controller pairing that fits your setup, confirm the available radio settings, and leave enough airflow around the module. D1 Store can help match the core hardware before installation.DJI O4 Air Unit Pro is intended for integration into a compatible custom FPV aircraft. Confirm the actual frame dimensions, controller protocol, cable routing, camera isolation, and airflow before fixing the hardware in place. Dual-antenna DJI O4 transmission 4K/120fps recording from a 1/1.3-inch sensor 10-bit D-Log M colour mode RockSteady and supported Gyroflow workflow Canvas Mode and Betaflight OSD 4 GB built-in storage with microSD expansion Compatibility: DJI Goggles 3, DJI Goggles N3, DJI Goggles 2, DJI Goggles Integra, DJI Avata 2 ND Filter Set.
A 1/1.3-inch FPV camera and dual-antenna DJI O4 transmission system for 3-inch and larger custom builds.
DJI O4 Air Unit Pro combines an FPV camera, onboard recording, and the live transmission link in a compact system for custom aircraft. The larger 1/1.3-inch sensor records up to 4K/120fps and supports 10-bit D-Log M.
For Australian builds, choose the goggles and controller pairing that fits your setup, confirm the available radio settings, and leave enough airflow around the module. D1 Store can help match the core hardware before installation.
The Pro camera, transmission module, display options, and OSD support can be combined around the way you prefer to fly.
Arrange supported flight-controller data on the goggles display so the information you use most stays visible.
Build with the matched Pro camera and dual-antenna transmission module.
Use the compatible ND8/16/32 set to manage bright conditions and retain the shutter settings your shot needs.
Record to the built-in storage or add a compatible microSD card when the flight calls for more capacity.

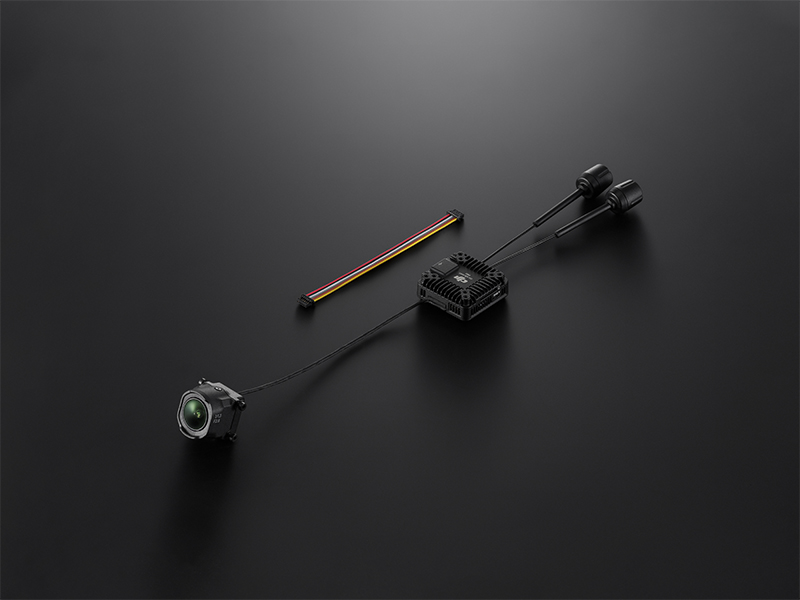

The 32g system uses a 33.5 × 33.5 × 13 mm air unit and a separate 25.6 × 20 × 23.3 mm camera module.
Choose Goggles 3, Goggles N3, Goggles 2, or Goggles Integra with the controller setup that suits the build.
DJI O4 uses H.265 encoding and a dual-antenna Pro design to return a high-frame-rate pilot view while the camera records separately at up to 4K/120fps.
DJI’s 15 km figure is an FCC laboratory maximum measured outdoors without obstruction or interference. Actual performance is shaped by the selected region, goggles, channel settings, interference, and aircraft installation.
With DJI Goggles 3, DJI measured latency as low as 15 ms in Racing Mode. The mode sets recording and transmission to 1080p/100fps and switches channel selection to Manual.
Racing Mode supports up to eight aircraft, while channel and frequency options vary by country and region. Choose the available settings for the location and nearby pilots.
Use the maximum view with Ultra Wide selected, EIS off, and a frame rate of 60fps or below.
155° Ultra-Wide FOV
Use the maximum view with Ultra Wide selected, EIS off, and a frame rate of 60fps or below.
DJI O4 Air Unit Pro is intended for integration into a compatible custom FPV aircraft. Confirm the actual frame dimensions, controller protocol, cable routing, camera isolation, and airflow before fixing the hardware in place.
| Sensor | 1/1.3-inch CMOS |
|---|---|
| Video Recording | Up to 4K/120fps |
| Colour Mode | 10-bit D-Log M |
| Maximum FOV | 155° with Ultra Wide, EIS off, and 60fps or below |
| Stabilisation | RockSteady; supported offline Gyroflow workflow |
| Video Transmission | DJI O4 with dual-antenna design |
| Live View | Up to 1080p/100fps using H.265 encoding |
| Lowest Stated Latency | 15 ms with DJI Goggles 3 in Racing Mode |
| Maximum Stated Range | 15 km under FCC test conditions |
| Maximum Transmission Bitrate | 60Mbps with Racing Mode off |
| Racing Mode | Supports up to eight aircraft; regional availability varies |
| System Weight | Approx. 32 g including the camera module |
| Built-in Storage | 4 GB |
| Storage Expansion | Supports microSD cards; no capacity limit is stated on this source page |
| Camera Module Dimensions | 25.6 × 20 × 23.3 mm |
| Air Unit Dimensions | 33.5 × 33.5 × 13 mm |
| Recommended Frame Size | 3 inches and above; verify actual frame dimensions |
| OSD | Canvas Mode and Betaflight OSD support |
| Camera Filter Compatibility | DJI Avata 2 ND8/16/32 Filter Set |
DJI recommends 3-inch and larger frames. The recommendation is a starting point, so confirm the actual frame layout, clearances, cooling, and mounting dimensions before installation.
Up to 4K/120fps, with a 1/1.3-inch sensor and 10-bit D-Log M for a more flexible grading workflow.
With Camera FOV set to Ultra Wide, electronic stabilisation off, and the recording frame rate at 60fps or below.
Yes. DJI says to turn off EIS in the goggles and set Camera FOV to Wide before recording for supported Gyroflow stabilisation.
15 ms, measured with DJI Goggles 3 in Racing Mode. Actual latency depends on the selected hardware, mode, and operating environment.
Availability and channel choices vary by country and region. With supported goggles, Racing Mode uses 1080p/100fps, manual channel selection, and 20 MHz or 40 MHz bandwidth options.
Give the module clear airflow and do not block its ventilation. High-resolution, high-frame-rate recording can pause if the unit becomes too warm, so allow it to cool before continuing.
Yes. Canvas Mode and Betaflight OSD can show configurable flight-controller data in the goggles when the connected flight controller supports the required setup.
Use DJI Goggles 3 or Goggles N3 with DJI FPV Remote Controller 3, or DJI Goggles 2 or Goggles Integra with DJI FPV Remote Controller 2.
Yes. The DJI O4 Air Unit Pro Camera Module supports the DJI Avata 2 ND8/16/32 Filter Set, sold separately.
It is DJI’s maximum FCC test result in an unobstructed, interference-free outdoor environment. Day-to-day performance varies with local settings, hardware, interference, and the build.
No. The official product FAQ describes the O4 Air Unit Series as video-only.
DJI O4 Air Unit Pro includes 4 GB of built-in storage and supports microSD card expansion. Choose a suitable card separately.
