A 1/1.3-inch FPV camera and dual-antenna DJI O4 transmission system for 3-inch and larger custom builds.
DJI O4 Air Unit Pro combines an FPV camera, onboard recording, and the live transmission link in a compact system for custom aircraft. The larger 1/1.3-inch sensor records up to 4K/120fps and supports 10-bit D-Log M.
For Australian builds, choose the goggles and controller pairing that fits your setup, confirm the available radio settings, and leave enough airflow around the module. D1 Store can help match the core hardware before installation.
The Pro camera, transmission module, display options, and OSD support can be combined around the way you prefer to fly.
Arrange supported flight-controller data on the goggles display so the information you use most stays visible.

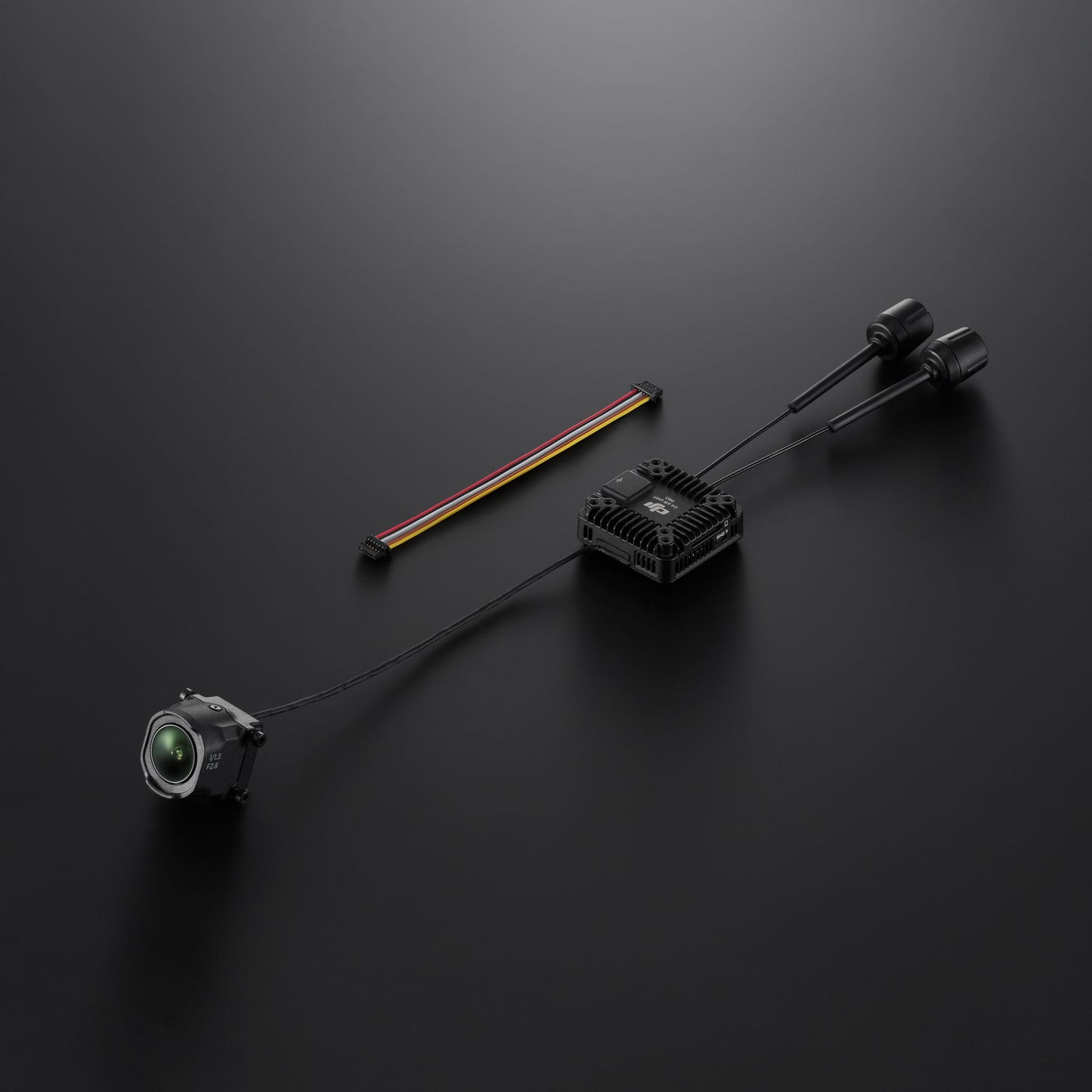

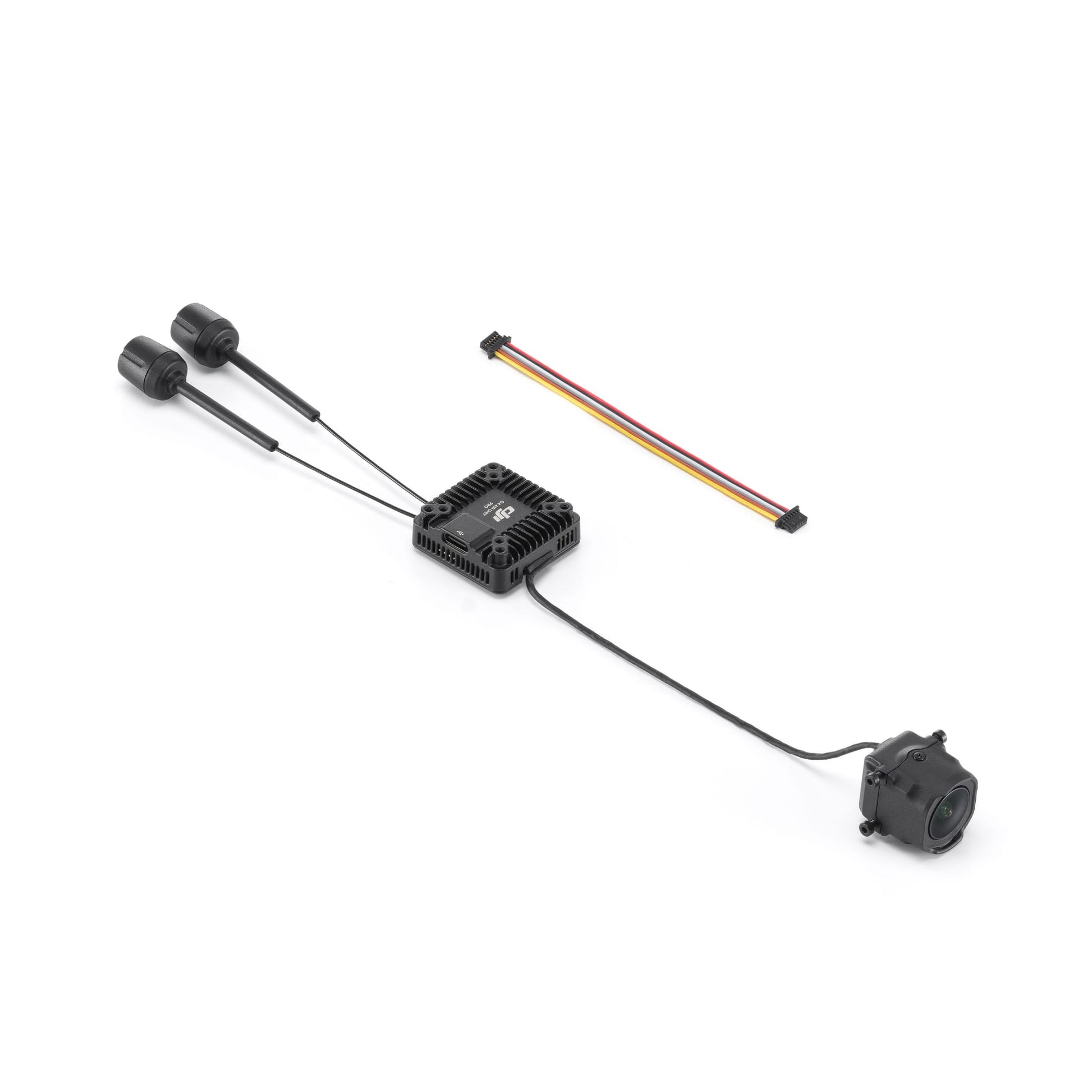

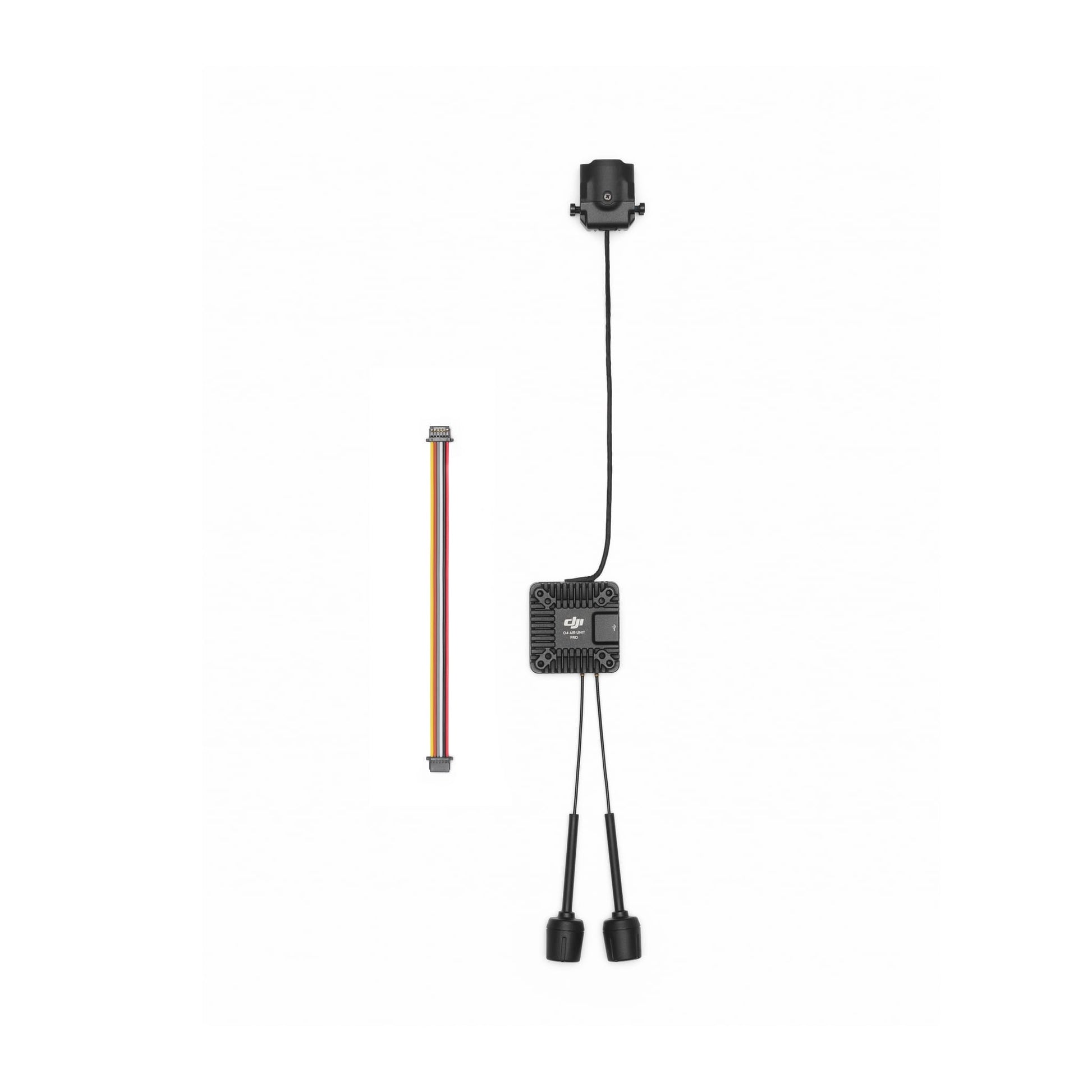

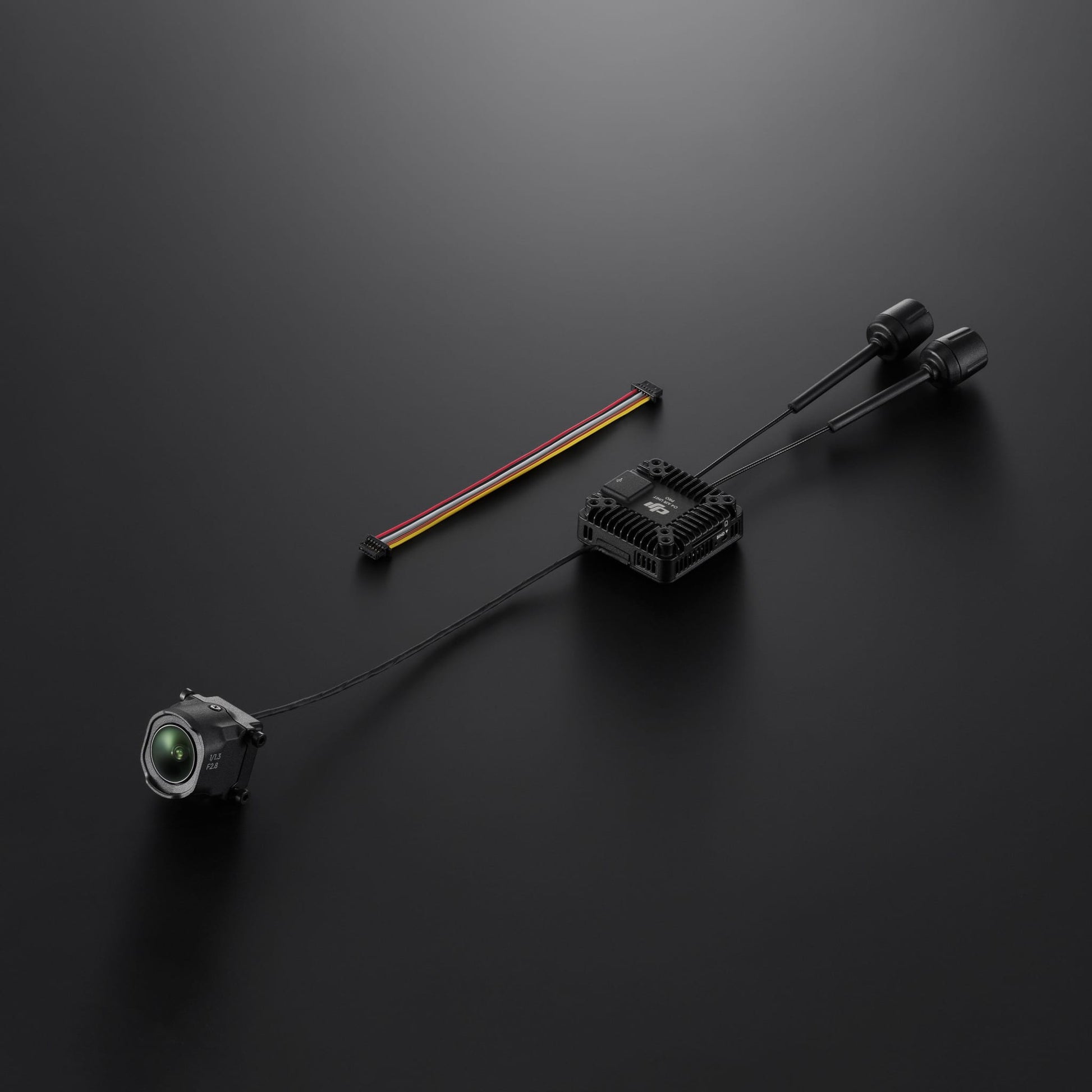

Build with the matched Pro camera and dual-antenna transmission module.
Use the compatible ND8/16/32 set to manage bright conditions and retain the shutter settings your shot needs.
Record to the built-in storage or add a compatible microSD card when the flight calls for more capacity.

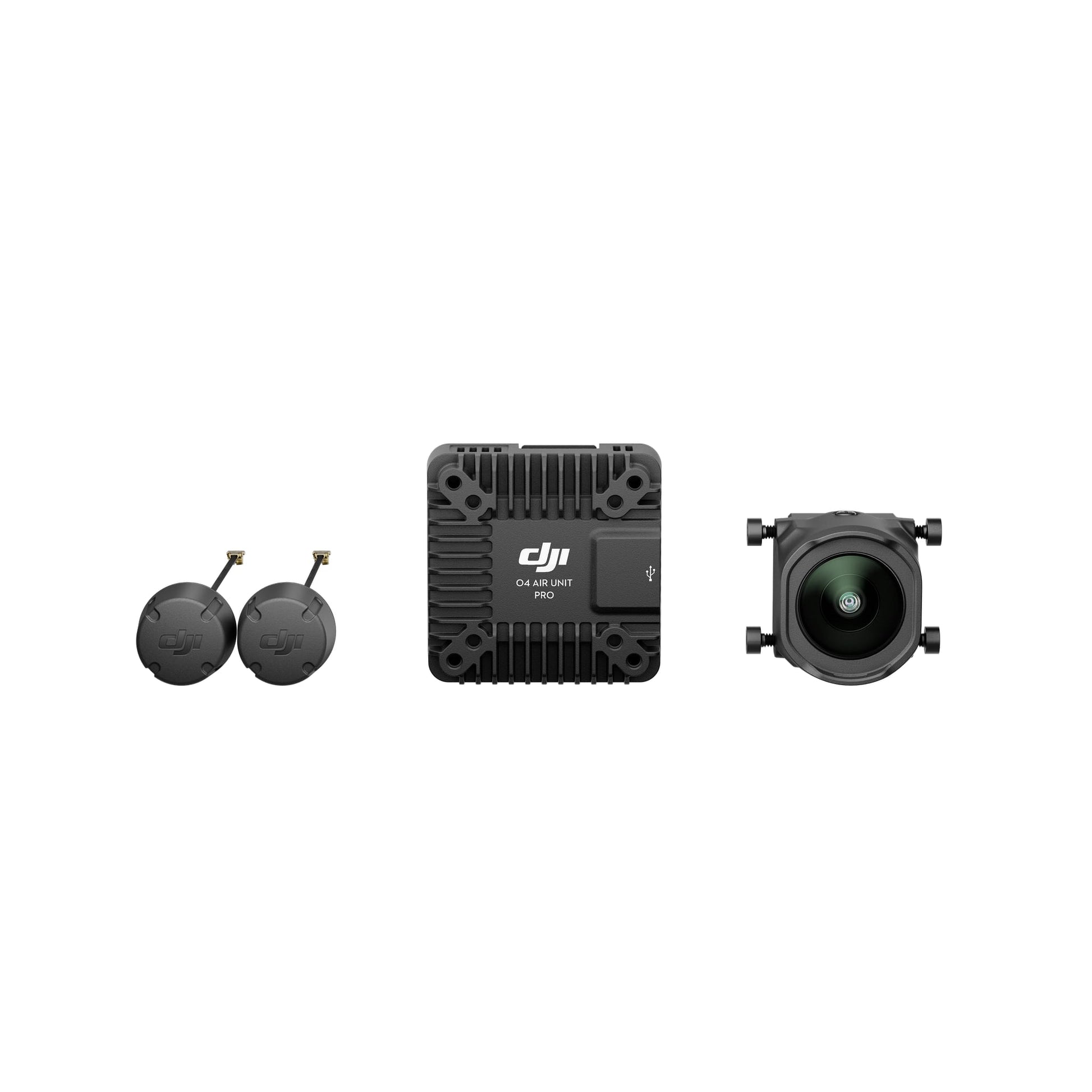

The 32g system uses a 33.5 × 33.5 × 13 mm air unit and a separate 25.6 × 20 × 23.3 mm camera module.
Choose Goggles 3, Goggles N3, Goggles 2, or Goggles Integra with the controller setup that suits the build.
DJI O4 uses H.265 encoding and a dual-antenna Pro design to return a high-frame-rate pilot view while the camera records separately at up to 4K/120fps.
DJI’s 15 km figure is an FCC laboratory maximum measured outdoors without obstruction or interference. Actual performance is shaped by the selected region, goggles, channel settings, interference, and aircraft installation.
With DJI Goggles 3, DJI measured latency as low as 15 ms in Racing Mode. The mode sets recording and transmission to 1080p/100fps and switches channel selection to Manual.
Racing Mode supports up to eight aircraft, while channel and frequency options vary by country and region. Choose the available settings for the location and nearby pilots.
Use the maximum view with Ultra Wide selected, EIS off, and a frame rate of 60fps or below.
155° Ultra-Wide FOV
Use the maximum view with Ultra Wide selected, EIS off, and a frame rate of 60fps or below.

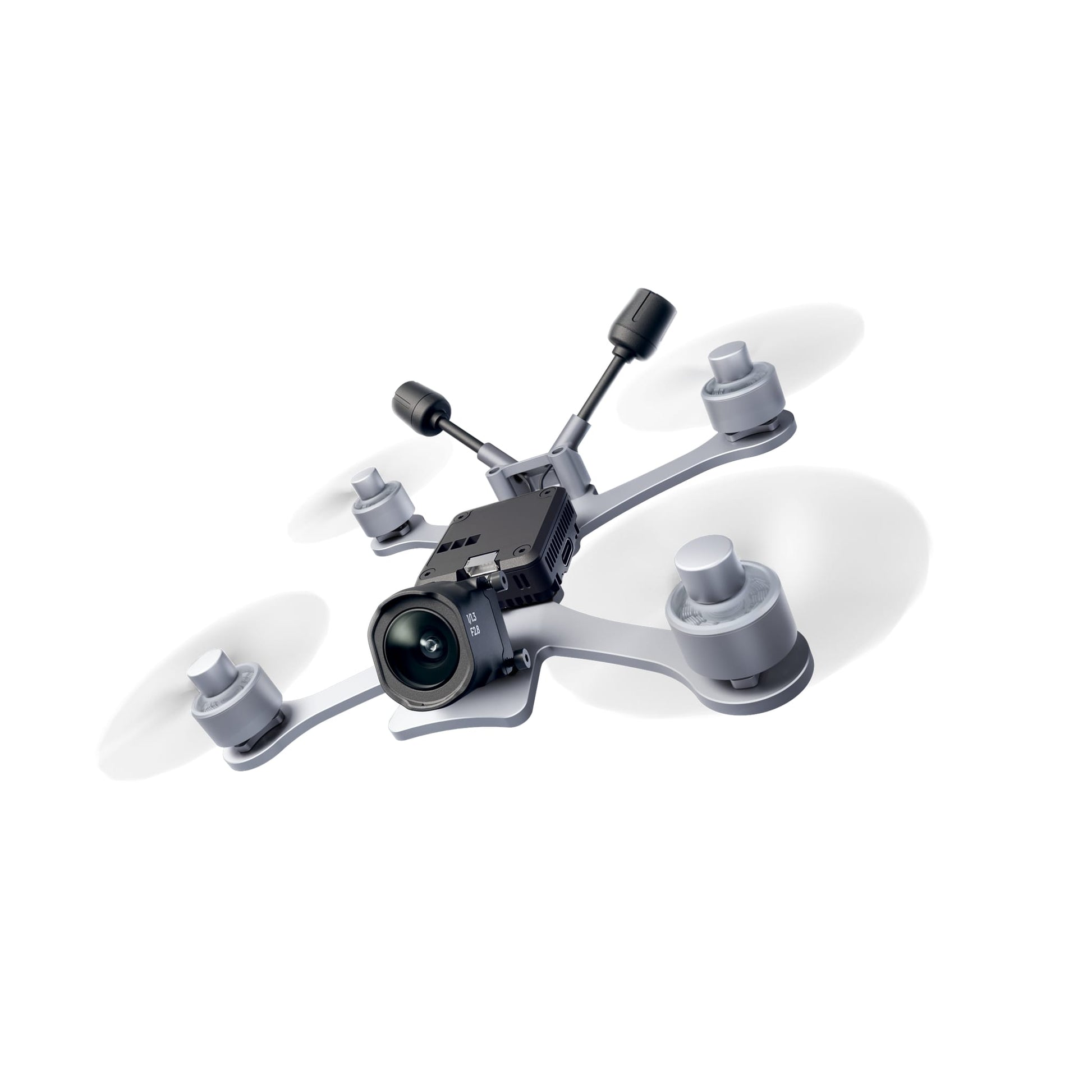

DJI O4 Air Unit Pro is intended for integration into a compatible custom FPV aircraft. Confirm the actual frame dimensions, controller protocol, cable routing, camera isolation, and airflow before fixing the hardware in place.
