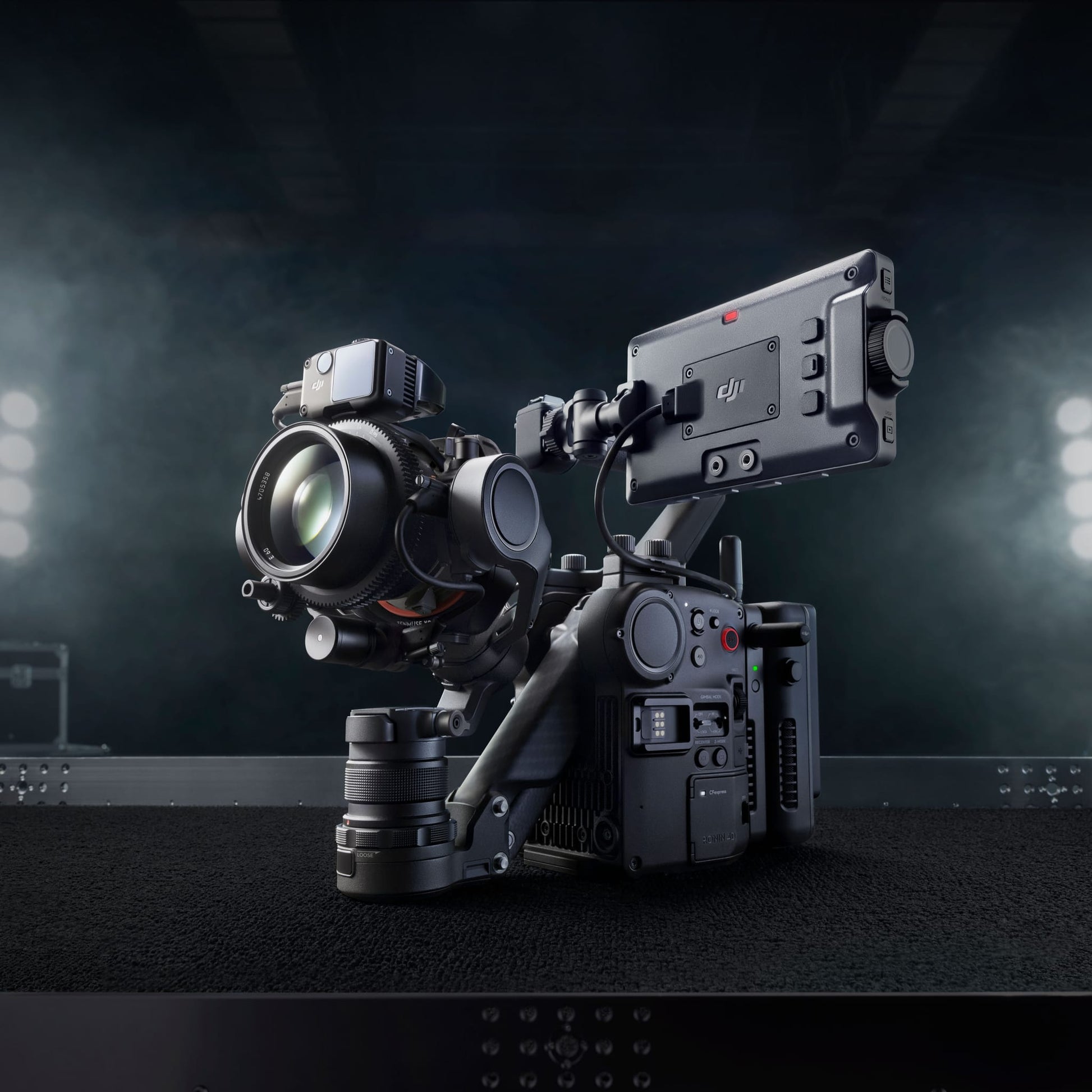

Ronin 4D 6K Combo

Item Code: RONIN4D-6KC

Free Shipping - Reserve Yours Now
Arrives Late November

Full-Frame Gimbal Camera
6K/60fps 4K/120fps Internal RAW Recording
4-Axis Active Stabilization
LiDAR Focusing

Your Purchase Includes:
Free Priority Shipping
Australian Product Lifetime Support
2nd Year Extended Warranty (Excluding Batteries)
Best Quote Guaranteed

AUD $10,699.00

Overview.

The DJI Ronin 4D 6K is a culmination of DJI's most advanced technologies, both hardware and software, that enables not only solo cinematographers but a whole team to film efficiently and at the highest quality. The new Zenmuse X9-6K has an impressive 14+ stops of dynamic range, shoots RAW 6K at 60fps & 4K at 120fps and has internal calibrated ND Filters to quickly adjust exposure on the fly. This new system is designed around efficiency, integrations and performance.

What's part of the combo?

Besides the main body and the X9-6K full-frame gimbal camera, the 6K Combo includes the LiDAR Range Finder, High-Bright Main Monitor, Hand Grips, a TB50 battery and the Top Handle, all ready to be used right out of the box.


What's the deal?

Highly integrated modular design crafted from carbon fibre and aluminium magnesium.

Full-Frame Gimbal Camera with CineCore 3.0.

6K/60fps & 4K/120fps Internal RAW Recording

4-Axis Active Stabilization with ToF sensors, built-in IMU, barometer with forward and downward dual-visual sensors.

LiDAR Focusing with 43,200 ranging points.

Wireless Transmission and Control System with DJI O3 Pro Video Transmission*.

See the introduction.

Features.

The Complete Package.


DJI Ronin 4D integrates cinematic imaging, a 4-axis gimbal, LiDAR focusing, and wireless video transmission and control, [1] making it incredibly convenient for you to start shooting quickly.




Full Frame Power.


The full-frame X9 gimbal camera can internally record in 6K/60 fps or 4K/120fps RAW, and supports 14+ stops of dynamic range, dual native ISO, built-in 9-stop ND filters, and interchangeable lens mounts to put cinematic imagery within your reach.


LiDAR.


Autofocus is fast, accurate, and reliable even in low-lit environments, and is now available on manual lenses. LiDAR Waveform makes manual focusing more intuitive and convenient. Automated Manual Focus delivers an unrivaled focusing experience.


4-Axis Stabilisation.


The Z-Axis effectively eliminates vertical camera shake and works with visual sensors and ActiveTrack Pro to let you create smooth, stable footage effortlessly.


Wireless Operation.


O3 Pro Video Transmission Technology adds DFS frequency bands and enables 1080p/60fps video transmission. It supports one transmitter with multiple receivers and can remotely control gimbal, focusing, and camera settings.

*Requires 4D Video Transmitter and High-Bright Remote Monitor.

Coming Soon


Get in quick

Explore Ronin 4D
Accessories

Coming Soon >

Which Ronin is
right for you?

Coming Soon >

Shop with Confidence.

Australia's First & Only Authorised DJI Retail Store

Our team are dedicated to providing you with the best service and price on all your DJI products from Consumer to Enterprise. With our conveniently located stores around Australia, our product specialists will guide you through which drone will be perfect for you and provide all the tips and tricks needed for a safe and enjoyable flight. Take advantage of our additional services including Rental, Trade-In, New Pilot Experience and Repairs.




General
Dimensions Main body: 235 × 115 × 160 mm
Overall: 309 × 290 × 277 mm
Weight Gimbal: 1.04 kg
Main body: 1.45 kg
Overall: 4.67 kg
Operating Temperature -10° to 40° C
Storage Temperature -20° to 60° C



Camera
Sensor 35mm full-frame CMOS sensor
Base Lens Mount DX Mount
Supported Lens Mounts DL, M and E Mounts
Dynamic Range 14+ stops
Gamma D-Log, Rec.709, HLG
EI Range X9-6K: EI 200-12800, Dual Native ISO 800/5000
ND 9 stops of built-in ND
ND: 2, 4, 8, 16, 32, 64, 128, 256, 512
Max Bit Rate
6008×3168, 48fps
RAW 3.4Gbps
Recording Formats
Apple ProRes RAW HQ
Apple ProRes 422 HQ
H.264 (4:2:0 10-bit)

View the full list
Storage Media
DJI PROSSD 1TB
CFexpress 2.0 Type B
USB-C SSD
Audio Format
LPCM 2-ch, 24-bit 48kHz



Gimbal
Mechanical Range Pan: ±330°
Tilt: -75° to 175°
Roll: -90° to 230°
Z-Axis Range: 130mm
Controllable Range Pan: ±285°
Tilt: -55° to +155°
Roll: ±35°
Max Z-Axis Payload  960 g



Battery
Capacity 4280 mAh
Max Operating Time
150 minutes
Max Charging Voltage 26.1 V
Max Charging Power 180 W
Charging Time
1.5 hours (with 86 W power adapter)



Video Transmission
Transmission System O3
2.4 GHz/5.8 GHz Auto-Switching
Max Transmission Distance 6 km (FCC)
Max Resolution
1080p at 60fps
Max Bitrate
50 Mpbs



Main Monitor
Screen Size 5.5"
Resolution 1920 x 1080
Refresh Rate 60 Hz
Max Brightness
1000 cd/m²



Interface
Main Body 3.5mm TRS Stereo Input Jack × 1 (supports mic, plug-in power mic, and line inputs)
3.5mm Stereo Output Jack × 1
USB3.1 Type-C Data Port × 1
6-pin 1B DC-IN (DC 12-30 V) × 1
Battery Mount Power Port (female) × 1
4D Expansion Plate Data Port (female) × 1
High-Bright Main Monitor Port × 1
Hand Grips Port × 2
Top Handle Port × 1
HDMI Type-A Video Output Port × 1
TB50 Battery Mount
Battery Mount Power Port (male) × 1
TB50 Battery Port × 1
Video Transmitter 4D Expansion Plate Data Port (male) × 1
SMA Antenna Connector × 4
USB 3.1 Type-C Data Port × 1
Battery Mount Power Port (female) × 1
Battery Mount Power Port (male) × 1
Remote Monitor
3.5mm Stereo Jack × 1
microSD Card Slot × 1
HDMI Type-A Video Input Port × 1
Remote Monitor Expansion Plate High-Speed Port (female) × 1
Remote Monitor Accessory Expansion Port × 1
USB 3.1 Type-C Data Port × 1
