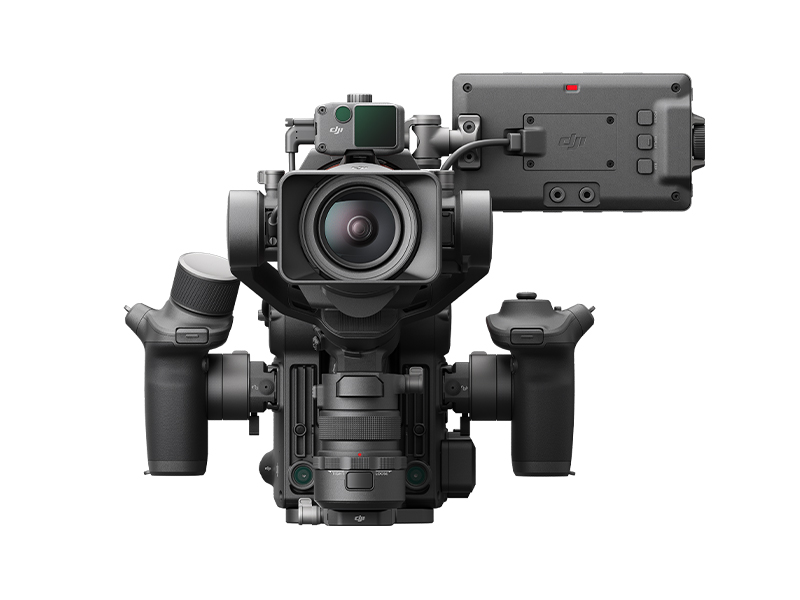

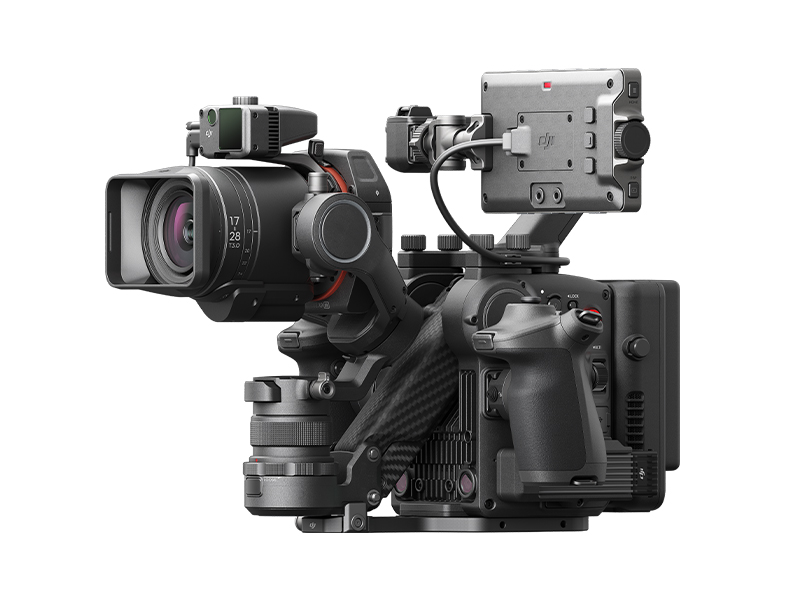

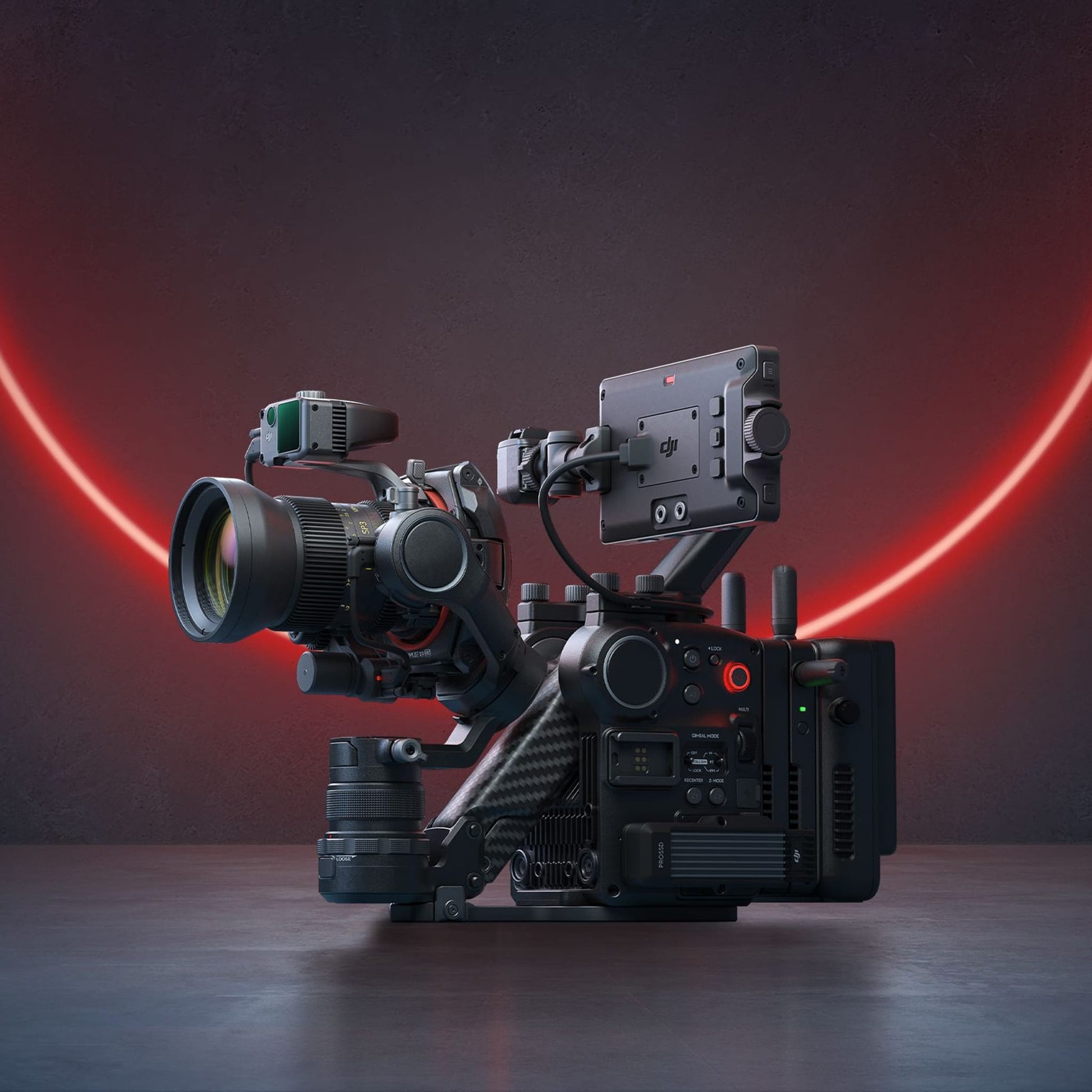

Ronin 4D 8K Combo

Item Code: RONIN4D-8KC

Free Shipping - Reserve Yours Now
Arrives Late November

Full-Frame Gimbal Camera
8K/ 75fps Internal RAW Recording
4-Axis Active Stabilization
LiDAR Focusing

Your Purchase Includes:
Free Priority Shipping
Australian Product Lifetime Support
2nd Year Extended Warranty (Excluding Batteries)
Best Quote Guaranteed

AUD $16,399.00

Overview.

DJI Ronin 4D 8K in the all in on solution that integrates DJI's most advanced technologies into one cutting-edge and comprehensive all in one cinematography solution. New possibilities have been created with ground breaking flexibility for solo cinematographers and unlimited possibilities for coordinated shooting. DJI haven't cut corners with the Ronin 4D with a Full-Frame Zenmuse X9 camera with CineCore 3.0 that is capable of 8K/75 fps internal recording with 14+ stops of dynamic range all attached to a 4-Axis gimbal with advanced stabilisation algorithms.

What's part of the combo?

Besides the main body and the X9-8K full-frame gimbal camera, the 6K Combo includes the LiDAR Range Finder, High-Bright Main Monitor,  Hand Grips, a TB50 battery and the Top Handle, all ready to be used right out of the box.

What's the deal?

All in one solution.

Highly integrated modular design crafted from carbon fibre and aluminium magnesium.

Full-Frame Gimbal Camera with CineCore 3.0.

8K/75fps Internal RAW Recording with 14+ stops of Dynamic Range.

4-Axis Active Stabilization with ToF sensors, built-in IMU, barometer with forward and downward dual-visual sensors.

LiDAR Waveform with 43,200 ranging points.

Wireless Transmission and Control System with DJI O3 Pro Video Transmission.*

See the introduction.

Features.

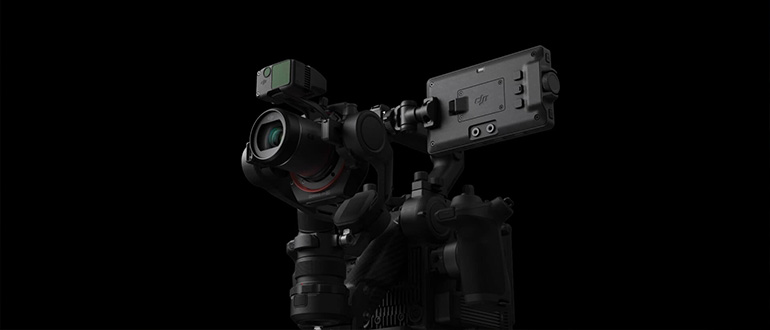

Integration.


DJI Ronin 4D is all about integration from internal components to external common third party accessories.

The main body integrates cinematic imaging through the new Zenmuse X9, a 4-axis gimbal, LiDAR focusing, wireless video transmission and control, making it incredibly convenient for you to start shooting quickly.

Enjoy a High-Brightness 5.5" 1,000 nit adjustable monitor to see everything in real-time along with different overlays to assist with your film-making.

Full Frame.


The full-frame Zenmuse X9 gimbal camera can internally record in 8K/75fps RAW, and supports 14+ stops of dynamic range, dual native ISO, built-in 9-stop ND filters, and interchangeable lenses ( DL, M and E Mount) to put cinematic imagery within your reach.

Store your creativity easily to either the DJI PROSSD, CFexpress 2.0 Type B or even to an external SSD via USB-C.

Recording codecs include; ProRes Raw (DJI PROSSD only), ProRes 422HQ and H.264.

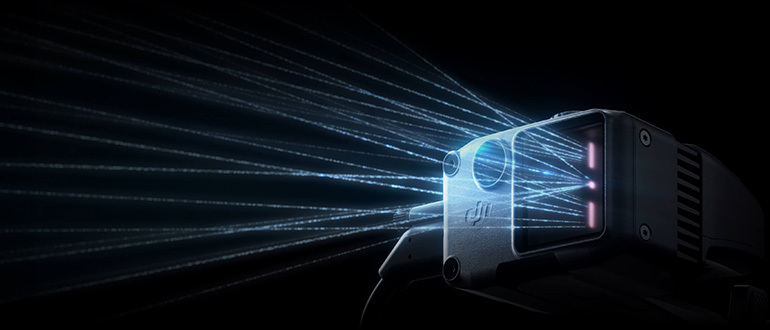

LiDAR Focusing System.


Focusing has never been easier with the DJI Ronin 4D thanks to with visual focus assistance technology that displays the ranging points for focus adjustments via LiDAR Waveform.

With the Zenmuse X9, autofocus is fast, accurate, and reliable even in low-lit environments, and is now available on manual lenses.

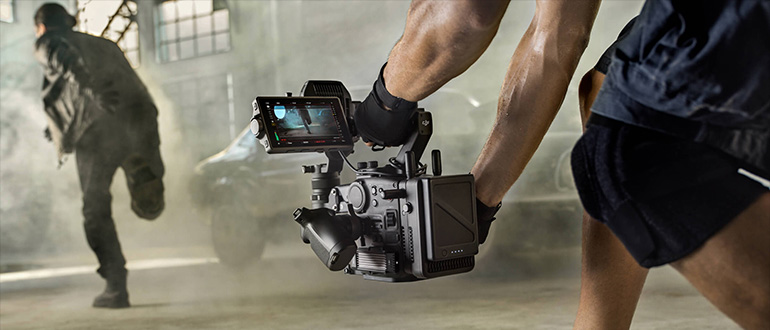

Cinematic 4-Axis Stabilisation.


DJI have perfect 3-Axis gimbals through their traditional Ronin gimbal line-up and previous Zenmuse lenses. Now the Z-axis has officially been integrated into a handheld system.

Working with the ToF sensor, forward & downward dual visual sensors, IMU and barometer; the Z-Axis effectively eliminates vertical camera shake and works with ActiveTrack Pro to let you create smooth, stable footage effortlessly.

Wireless Video Transmission.


O3 Pro Video Transmission Technology adds DFS frequency bands and enables 1080p/60fps video transmission. This AES 256-bit encrypted output supports multiple feeds to remote monitors simultaneously.

The High-Bright Remote Monitor can connect to the Hand Grips of Ronin 4D, DJI Master Wheels, DJI Force Pro or the new DJI Three-Channel Follow Focus. This enables different monitors to remote control focus, gimbal movements, camera settings and start/stop recording.

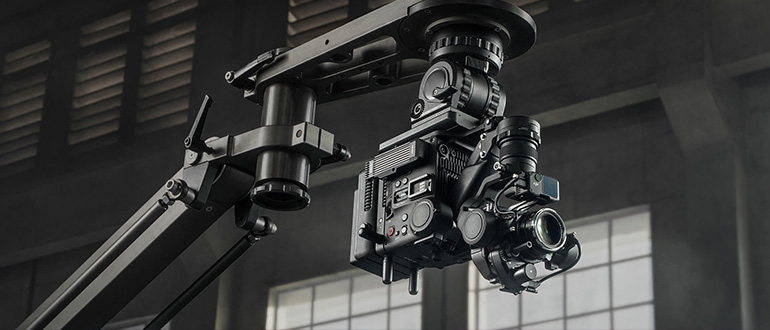

This is perfect for when the DJI Ronin 4D is attached to expansive platforms such as a Jib, Cable Cam or Vehicle Mount.

*Requires 4D Video Transmitter and High-Bright Remote Monitor.

Intelligent Features.


ActiveTrack has been upgraded to ActiveTrack Pro, which combines deep learning technology and the robust computing power of CineCore 3.0. This allows for subjects to be tracked from longer distance AND composition adjustment with continuous autofocusing.

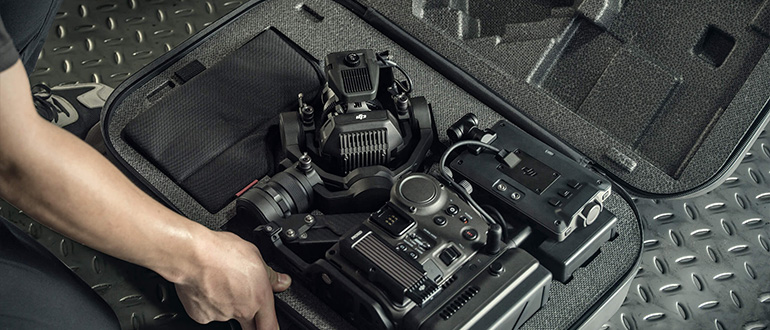

After the shoot is over, you can easily fit the entire system into a carrying case ready for the next location.

Explore Ronin 4D
Accessories

Coming Soon >

Which Ronin is
right for you?

Coming Soon >

Shop with Confidence.

Australia's First & Only Authorised DJI Retail Store

Our team are dedicated to providing you with the best service and price on all your DJI products from Consumer to Enterprise. With our conveniently located stores around Australia, our product specialists will guide you through which drone will be perfect for you and provide all the tips and tricks needed for a safe and enjoyable flight. Take advantage of our additional services including Rental, Trade-In, New Pilot Experience and Repairs.


General
Dimensions Main body: 235 × 115 × 160 mm
Overall: 309 × 290 × 277 mm
Weight Gimbal: 1.04 kg
Main body: 1.45 kg
Overall: 4.67 kg
Operating Temperature -10° to 40° C
Storage Temperature -20° to 60° C



Camera
Sensor 35mm full-frame CMOS sensor
Base Lens Mount DX Mount
Supported Lens Mounts DL, M and E Mounts
Dynamic Range 14+ stops
Gamma D-Log, Rec.709, HLG
EI Range EI 200-12800, Dual Native ISO 800/4000
ND 9 stops of built-in ND
ND: 2, 4, 8, 16, 32, 64, 128, 256, 512
Max Bit Rate
8192×4320, 60fps
RAW 3.95Gbps
Recording Formats
Apple ProRes RAW HQ
Apple ProRes 422 HQ
H.264 (4:2:0 10-bit)

View the full list
Storage Media
DJI PROSSD 1TB
CFexpress 2.0 Type B
USB-C SSD
Audio Format
LPCM 2-ch, 24-bit 48kHz



Gimbal
Mechanical Range Pan: ±330°
Tilt: -75° to 175°
Roll: -90° to 230°
Z-Axis Range: 130mm
Controllable Range Pan: ±285°
Tilt: -55° to +155°
Roll: ±35°
Max Z-Axis Payload  960 g



Battery
Capacity 4280 mAh
Max Operating Time
150 minutes
Max Charging Voltage 26.1 V
Max Charging Power 180 W
Charging Time
1.5 hours (with 86 W power adapter)



Video Transmission
Transmission System O3
2.4 GHz/5.8 GHz Auto-Switching
Max Transmission Distance 6 km (FCC)
Max Resolution
1080p at 60fps
Max Bitrate
50 Mpbs



Main Monitor
Screen Size 5.5"
Resolution 1920 x 1080
Refresh Rate 60 Hz
Max Brightness
1000 cd/m²



Interface
Main Body 3.5mm TRS Stereo Input Jack × 1 (supports mic, plug-in power mic, and line inputs)
3.5mm Stereo Output Jack × 1
USB3.1 Type-C Data Port × 1
6-pin 1B DC-IN (DC 12-30 V) × 1
Battery Mount Power Port (female) × 1
4D Expansion Plate Data Port (female) × 1
High-Bright Main Monitor Port × 1
Hand Grips Port × 2
Top Handle Port × 1
HDMI Type-A Video Output Port × 1
TB50 Battery Mount
Battery Mount Power Port (male) × 1
TB50 Battery Port × 1
Video Transmitter 4D Expansion Plate Data Port (male) × 1
SMA Antenna Connector × 4
USB 3.1 Type-C Data Port × 1
Battery Mount Power Port (female) × 1
Battery Mount Power Port (male) × 1
Remote Monitor
3.5mm Stereo Jack × 1
microSD Card Slot × 1
HDMI Type-A Video Input Port × 1
Remote Monitor Expansion Plate High-Speed Port (female) × 1
Remote Monitor Accessory Expansion Port × 1
USB 3.1 Type-C Data Port × 1
