RoboMaster S1

Item Code: RM-S1

AUD $899.00

Enter your email address and we'll send you a reminder when the stock becomes available.

ROBOMASTER S1

Learn To Win

The RoboMaster S1 is a game-changing educational robot built to unlock the potential in every learner. Inspired by DJI's annual RoboMaster robotics competition, the S1 provides users with an in-depth understanding of science, math, physics, programming and more through captivating gameplay modes and intelligent features.

Destined and Designed to Win

The S1's design language is a striking example of machine efficiency. The powerful configurations allow the S1 to create, conquer and also pushes your limits as far as you're ready to go.

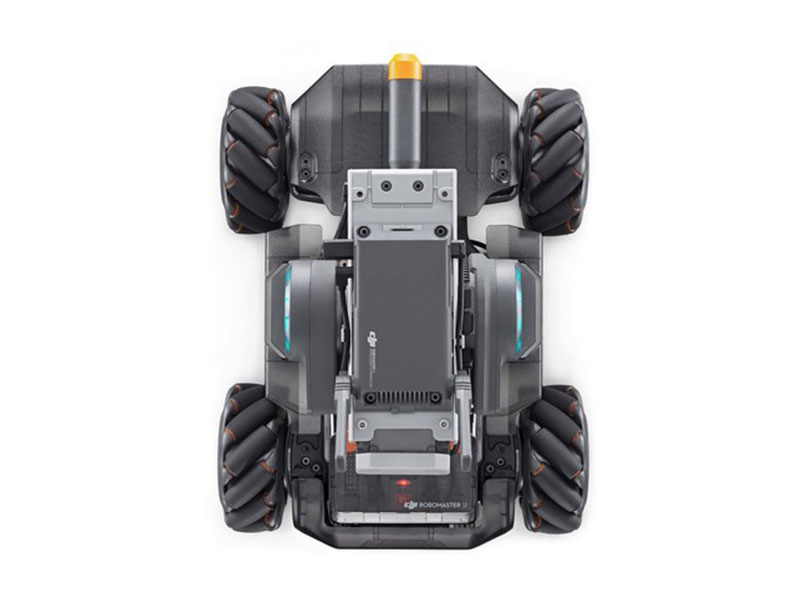

D1 Store RoboMaster Design

Intelligent Controller

Using a powerful CPU, the Intelligent Controller can simultaneously support functions such as low-latency high-definition image transmission, AI computing, and programming development. It also coordinates transmission seamlessly to execute command signals.

Blaster

The S1 Blaster uses LED lights to outline launch trajectories for its gel beads and infrared beams. Vivid sound effects and recoil action add to the experience for an immersive battle simulation. For added safety, the Blaster uses non-toxic gel bead projectiles and even features limitations on launching rate and angle.

2-Axis Mechanical Gimbal

The gimbal’s yaw/pitch rotation range is 540° × 65°, offering an expansive field of view for the FPV camera. The built-in direct drive brushless motor works together with the IMU and advanced algorithms to allow gimbal movements with a vibration control accuracy [1] within ±0.02°, delivering smooth image transmission and a precision control experience.

Mecanum Wheels

The S1 comes with four Mecanum wheels, each with 12 rollers that allow omnidirectional movement and precision control. Front axes suspension allows for added versatility during operation.

High-Performance Motor

The S1 comes with a customized M3508I motor that features an integrated FOC ESC with an output torque of up to 250 mN•m. Linear Hall-effect sensors with advanced algorithms allow closed-loop control for added precision. Additional safety mechanisms deliver outstanding stability.

Intelligent Sensing Armor

Six intelligent armor panels cover the S1 to detect gel bead or infrared beam strikes. The referee system can analyze and communicate hit data, incorporating it into gameplay in real time.

Robomaster Family D1store

Learn by Doing

The RoboMaster S1 bridges the digital world with the real one, bringing abstract theories to life through practical operations. The S1 supports Scratch and Python programming languages, allowing users to experience math, physics, and AI technology in a cutting-edge and inspiring way.

Scratch & Python Programming

The S1 supports the Scratch and Python programming languages. This allows you to take your abilities to the next level, whether you are new to coding or are already on your way to becoming an expert.

 Scratch 3.0

 Classic visual programming language used in primary and secondary schools worldwide.

 Python

 Widely used in the field of artificial intelligence.

 Powerful programming blocks enable you to explore a series of new functions with your S1. For example, new Scratch blocks for line follow allow the S1 to make turns at T-junctions and intersecting roads. Additionally, with new Scratch and Python interfaces for the speaker module, you can add musical notes to the action or even write a song for your S1 to play[2].


DJI robomaster expansion D1 Store

Endless Possibilities

Up to 46 customizable components[3] give you unlimited space for innovation, enabling you to grow and learn in an exciting way that expands the capabilities of your S1, and yourself. Six PWM ports[4] and one SBus port support customized accessories, granting further options. Operate your S1 with a remote controller that supports SBUS protocol, or program complex codes with an external development board to explore the unlimited possibilities of the S1 and the magic of the robotic world.

*Accessories shown in this image are not official accessories and are for illustrative purposes only

Experience AI Technology

AI technology lets the S1 recognize gestures, sounds, and even other S1 robots. Playing with the RoboMaster S1 opens the doorway to AI learning, giving you a practical introduction to the technologies of tomorrow.

 Line Recognition

 The S1 can be programmed to automatically follow a line on the ground. The more math and physics knowledge that is applied, the more adeptly the S1 will be able to complete this task.

  Vision Marker Recognition

 Recognize up to 44 Vision Markers which feature numbers, letters, and special characters that expand the possibilities for coding and combat.

 People Recognition

 Thanks to advanced computer vision technology, the S1 is able to identify and track any individual you select in the S1’s FOV.

  Clapping Recognition

 The S1 is equipped with a built-in clap recognition module, which can be programmed for unique responses.

 Gesture Recognition

 The S1 can recognize various physical gestures and can be programmed for self-defined responses.

 S1 Robot Recognition

 The S1 can recognize

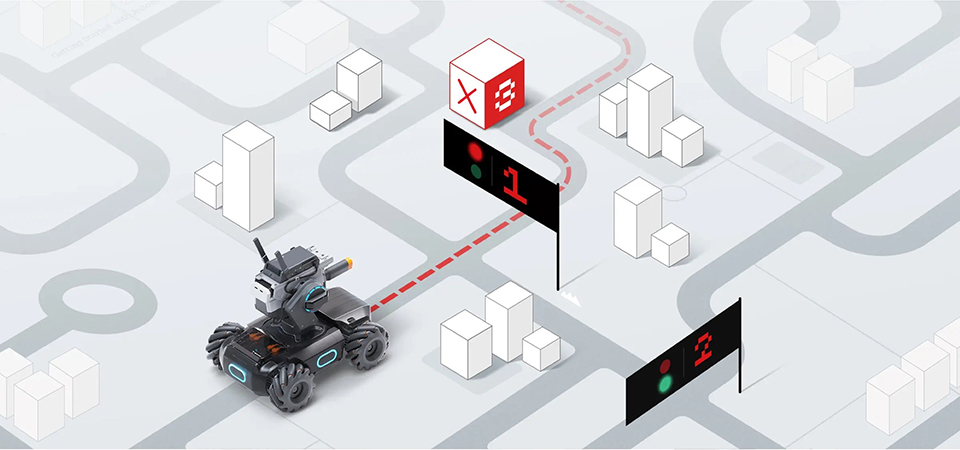

Get Started with Automatic Driving

By utilizing Vision Markers to create "traffic lights" and other obstacles, users can write their own programs that allow the S1 to drive automatically and execute complex tasks. Explore mathematical principles involving robotic control and motion mechanics through the S1's six programmable artificial intelligence modules. Get an in-depth understanding of AI as you develop these skills and many more

Robomaster, the world is yours to create

The World is Your Arena

Build your own competition arena anywhere, anytime and enjoy a variety of gameplay modes with an immersive FPV experience unlike any other. You can even record and share all the action with the touch of a button.

See the Action

Enjoy a unique and immersive driving experience with the S1's exhilarating FPV perspective.

 Race

Compete against opponents on your own custom track. Unlock special skills like extreme speed by recognizing specific Vision Markers, or unleash weapons like dizziness against competitors to gain an edge and win the race.

Free-For-All

There can only be one winner in this competition of wits and speed. Use custom skills to get an edge and defeat opponents in this thrilling melee that utilizes the S1's unique referee system and intelligent sensing armor.

 Conquest

Build your own competition arena and divide players into two teams. Set up your team strongholds, and the first team to occupy all of their opponent strongholds wins.

 Develop Custom Skills

In any competition, wisdom is equally as important as power. The S1 enables users to apply their classroom knowledge to compile custom coding, unlocking unique functions that will surprise onlookers and defeat competitors. With its new education concept, the S1 helps users embrace the joy of learning in new and exciting ways.

 Intercom

The new Intercom feature lets you to enjoy voice interactions with friends nearby. You can also pre-record audio files in the RoboMaster app on your mobile device and play them on the S1, unlocking an array of exciting new possibilities.


SPECS

RoboMaster S1

Camera

  • FOV

  • 120°
  • Max Still Photo Resolution

  • 2560×1440
  • Max Video Resolution

  • FHD: 1080/30fps
    HD: 720/30fps
  • Max Video Bitrate

  • 16 Mbps
  • Photo Format

  • JPEG
  • Video Format

  • MP4
  • Sensor

  • CMOS 1/4″; Effective pixels: 5 MP
  • Operating Temperature Range

  • -10 to 40 °C (14 to 104 °F)

Narrow Infrared Units

  • Effective Range [1]

  • 6 m (in indoor lighting conditions)
  • Effective Area

  • Varies from 10° to 40°
    Effective area decreases as distance from the target increases.

Wide Infrared Units

  • Effective Range [1]

  • 3 m (in indoor lighting conditions)
  • Effective Width

  • 360° (in indoor lighting conditions)

Hit Detector

  • Detection Requirements

  • For the Hit Detector to be activated, the following conditions must be met: Gel bead diameter ≥ 6mm, launching speed ≥20m/s, and the angle between the hit direction and hit detector plane is no less than 45°.
  • Maximum Detection Frequency

  • 15 Hz

S1

  • Weight

  • Approx. 3.3 kg
  • Dimensions

  • 320×240×270 mm (length × width × height)
  • Chassis Speed Range

  • 0-3.5 m/s (forward)
    0-2.5 m/s (backward)
    0-2.8 m/s (sideways)
  • Max Chassis Rotational Speed

  • 600°/s

M3508I Brushless Motor

  • Max Rotational Speed

  • 1000 rpm
  • Max Torque

  • 0.25N·m
  • Max Output Power

  • 19 W
  • Operating Temperature Range

  • -10 to 40 °C (14 to 104 °F)
  • Driver

  • FOC
  • Control Method

  • Closed-loop speed control
  • Protection

  • Overvoltage protection
    Overtemperature protection
    Soft-start
    Short-circuit protection
    Chip and sensor anomaly detection

Blaster

  • Controllable Launching Frequency

  • 1-8/s
  • Max Launching Frequency

  • 10/s
  • Initial Launching Speed

  • Approx. 26 m/s
  • Average Load

  • Approx. 430

Gimbal

  • Controllable Range

  • Pitch: -20° to +35°
    Yaw: ±250°
  • Mechanical Range

  • Pitch: -24° to +41°
    Yaw: ±270°
  • Max Rotational Speed

  • 540°/s
  • Vibration Control Precision (on the flat surface and with the Blaster idle)
