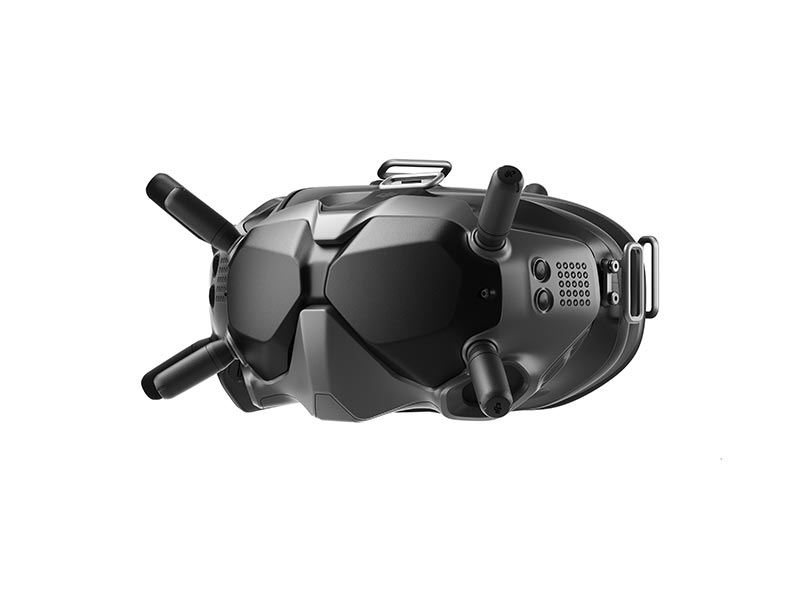

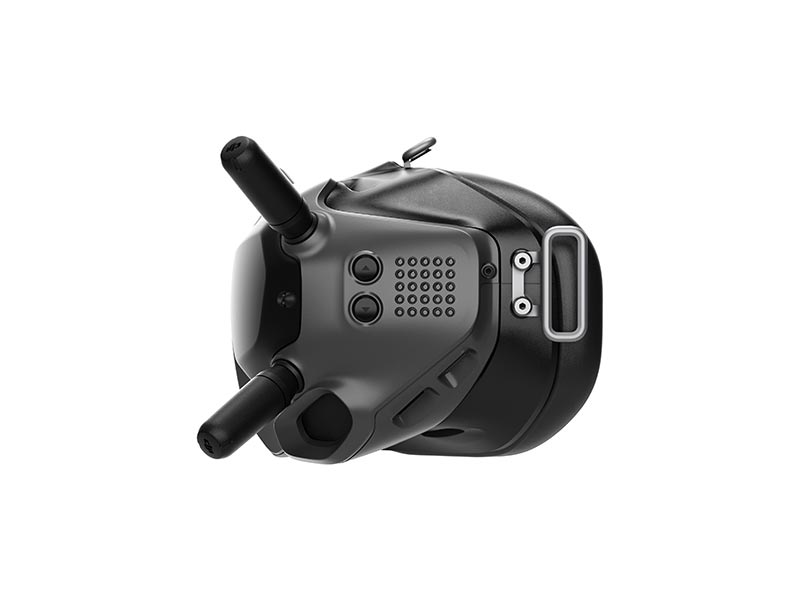

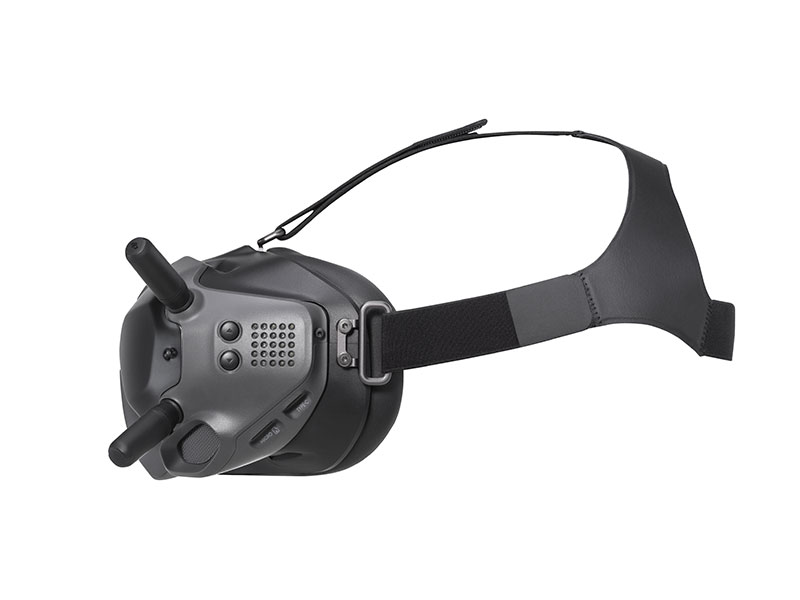

DJI FPV Goggles V2

Item Code: GOGGLESFPVV2

In-Stock!
High Definition, low latency, long-distance transmission and long battery life supporting up to 110 minutes of flight time when fully charged.

AUD $999.00

Enter your email address and we'll send you a reminder when the stock becomes available.

Up to 3 months INTEREST FREE

Visit - Know Your Drone - for a safe and responsible flight

DJI FPV Goggles V2

Overview

High Definition, low latency, long-distance transmission and long battery life supporting up to 110 minutes of flight time when fully charged.

Tips

To get the best experience, avoid exposing the inside of the goggles to direct sunlight.

Specifications

Weight: Approx. 420 g (headband and antennas included)
Dimensions: 202×126×110 mm (antennas included), 184×122×110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen): 1440 × 810
Screen Renew Rate: 144 Hz
Communication Frequency: 2.400 - 2.4835 GHz*; 5.725-5.850 GHz
*Only supports 5.8Ghz when used with DJI FPV Air Unit
Transmitter Power (EIRP): 2.400 - 2.4835 GHz
FCC/MIC: ≤28.5 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm
5.725-5.850 GHz
FCC/MIC: ≤31.5 dBm; CE: ≤14 dBm; SRRC: ≤19 dBm
Live View Mode: Low-Latency Mode (810p 120fps); High-Quality Mode (810p 60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillar Distance Range: 58 -70 mm
Supported Storage Card: microSD cards with storage capacities of up to 256GB.

DJI FPV Goggles Battery
Capacity: 1800 mAh
Voltage: 9 V (Max.)
Type: LiPo 2S
Charging Temperature: 0℃ to 45℃
Energy: 18 Wh
Max Charging Power: 10 W
Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)

*Only supports 5.8Ghz when used with DJI FPV Air Unit

Compatibility

DJI FPV Air Unit
DJI FPV Drone
DJI FPV Remote Controller



FPV Goggles V2
Weight 420 g (including headband and antennas)
Dimensions 184×122×110 mm (antennas excluded)
202×126×110 mm (antennas included)
Screen Size 2-inches (×2)
Screen Refresh Rate 31 minutes
FOV
30° to 54°
Communication Bandwidth 40 MHz
Video Playback Formats
MP4, MOV, MKV



Video Transmission
Transmission System O3
2.4 GHz/5.8 GHz Auto-Switching
Max Transmission Distance 10 km (FCC), 6 km (CE)
6 km (SRRC), 6 km (MIC)
Max Video Bitrate
50 Mbps



Battery
Capacity  1800 mAh
Max Charging Power
10 W
Operating Time 110 minutes
