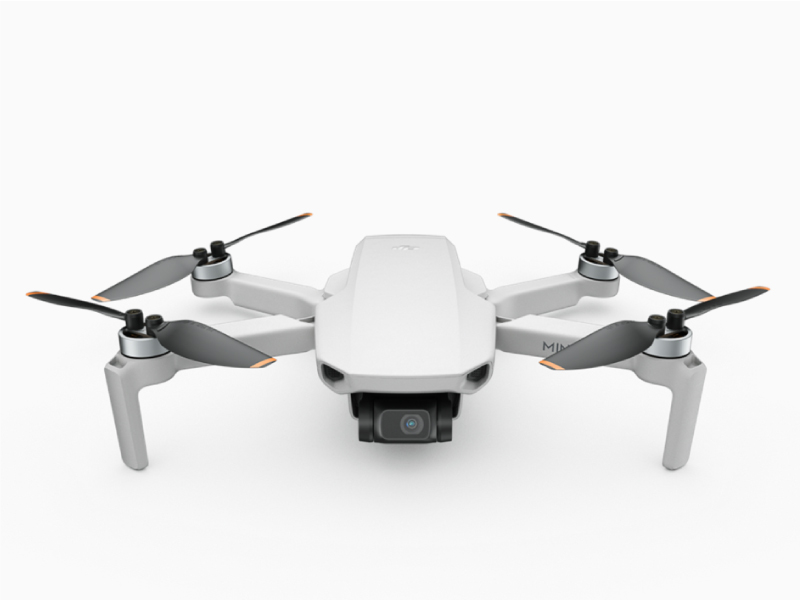

Aircraft

• Takeoff Weight [1]

• 249 g

• Dimensions

• Folded: 140×82×57 mm (L×W×H)
  Unfolded: 160×202×55 mm (L×W×H)
  Unfolded (with propellers): 245×290×55 mm (L×W×H)

• Diagonal Distance

• 213 mm

• Max Ascent Speed

• 4 m/s (S Mode)
  2 m/s (P Mode)
  1.5 m/s (C Mode)

• Max Descent Speed

• 3 m/s (S Mode)
  1.8 m/s (P Mode)
  1 m/s (C Mode)

• Max Speed (near sea level, no wind)

• 13 m/s (S Mode)
  8 m/s (P Mode)
  4 m/s (C Mode)

• Max Service Ceiling Above Sea Level

• 3000 m

• Max Flight Time

• 30 minutes (measured while flying at 14 kph in windless conditions)

• Max Wind Speed Resistance

• 8 m/s (Scale 4)

• Max Tilt Angle

• 30° (S Mode)
  20° (P Mode)
  20° (C Mode)

• Max Angular Velocity

• 150°/s (S Mode)
  130°/s (P Mode)
  30°/s (C Mode)

• Operating Temperature Range

• 0° to 40°C (32° to 104°F)

• Operating Frequency

• Model MT1SS5: 5.725-5.850 GHz
  Model MT1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz

• Transmission Power (EIRP)

• Model MT1SS5
  5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
  Model MT1SD25
  2.4 GHz: <19 dBm (MIC/CE)
  5.8 GHz: <14 dBm (CE)

• GNSS

• GPS+GLONASS

• Hovering Accuracy Range

• Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)
  Horizontal: ±0.1 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal

• Mechanical Range

• Tilt: -110° to 35°
  Roll: -35° to 35°
  Pan: -20° to 20°

• Controllable Range

• Tilt: -90° to 0° (default setting) -90° to +20° (extended)

• Stabilization

• 3-axis (tilt, roll, pan)

• Max Control Speed (tilt)

• 120°/s

• Angular Vibration Range

• ±0.01°

Sensing System

• Downward

• Operating Range: 0.5-10 m

• Operating Environment

• Non-reflective, discernable surfaces
  Diffuse reflectivity (>20%)
  Adequate lighting (lux>15)

Camera

• Sensor

• 1/2.3” CMOS
  Effective Pixels: 12 MP

• Lens

• FOV: 83°
  35 mm Format Equivalent: 24 mm
  Aperture: f/2.8
  Shooting Range: 1 m to ∞

• ISO Range

• Video:
  100-3200 (Auto)
  Photo:
  100-1600 (Auto)
  100-3200 (Manual)

• Shutter Speed

• Electronic Shutter: 4-1/8000s

• Still Image Size

• 4:3: 4000×3000
  16:9: 4000×2250

• Still Photography Modes

• Single shot
  Interval: 2/3/5/7/10/15/20/30/60 s

• Video Resolution

• 2.7 K: 2720×1530 25/30 p
  FHD: 1920×1080 25/30/50/60 p

• Max Video Bitrate

• 40 Mbps

• Supported File System

• FAT32（≤32 GB）
  exFAT（>32 GB）

• Photo Format

• JPEG

• Video Format

•
