| Dimensions |
Unfolded: 288×107×96 mm (L×W×H)
Folded: 190×95×46 mm (L×W×H) |
| Weight |
Approx. 370 g
(Gimbal + Built-in Tripod + Magnetic Phone Clamp + Multifunctional Module)
Data was collected in a controlled environment. Actual experience may vary. |

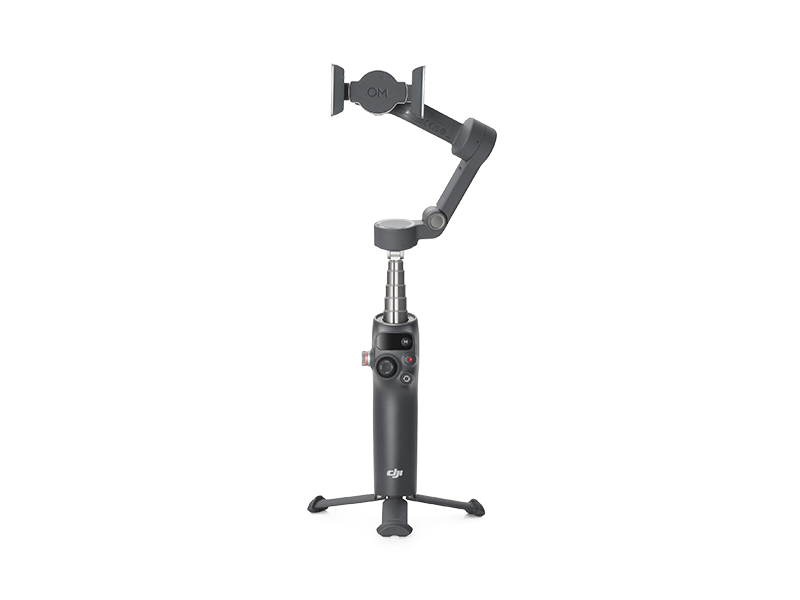

| Extension Rod |
Built-in Extension Rod
Max Extension Length: 215 mm |
| Compatible Phone Weight |
170-300 g |
| Compatible Phone Thickness |
6.9-10 mm |
| Compatible Phone Width |
67-84 mm |
| Bottom Port |
1/4"-20 UNC port |
| Type |
Li-Po 1S |
| Capacity |
3350 mAh |
| Energy |
12.06 Wh |
| Charging Temperature |
5° to 40° C |
| Operating Temperature |
0° to 40° C |
| Operating Time |
Approx. 10 hours
(Measured with the gimbal balanced in a level and stationary state without additional accessories)
With the Multifunctional Module's intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours. Using the gimbal to charge your smartphone will shorten the gimbal's operating time. |
| Charging Time |
Approx. 2.5 hours
(Measured with a 10W USB-C charger) |
| Gimbal Charging Port |
USB-C |
| Phone Charging |
Supported |
| Controllable Range |
Pan: 360° (unlimited rotation)
Roll: -67° to 245°
Tilt: -20° to 40° |
| Mechanical Range |
Pan: 360° (unlimited rotation)
Roll: -77° to 255°
Tilt: -224° to 100° |
| Max Control Speed |
120°/s |
| Dimensions |
Built-in Tripod
Length: 67 mm |
| GFSK |
2 Mbps |
| GFSK Transmitter Power (EIRP) |
<16 dBm |
| GFSK Operating Frequency |
2.4000-2.4835 GHz |
| Bluetooth Protocol |
Bluetooth 5.3 |
| Bluetooth Transmitter Power (EIRP) |
<16 dBm |
| Bluetooth Operating Frequency |
2.4000-2.4835 GHz |
| Fill Light Illuminance |
40 lux
This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only. |
| Fill Light Color Temperature |
2500-6000 K |
