Radar Systems Zond Aero 500 GPR
`

Radar Systems Zond Aero 500 GPR

Item Code: RADSYS-ZA-500

Versatile Ground Penetrating Radar System

Real-Time Radargram
Wi-Fi Transmission


Contact enterprise@d1store.com.au for Pricing & Availability

Radar Systems Zond Aero 500 GPR

Overview

A portable ground penetrating radar solution, the Zond Aero 500 delivers accurate real-time radar readings with a scan rate of 56. The Zond Aero 500 GPR can be operated independently or while attached to a DJI Matrice series drone solution.

Highlights

▪ Built-in 500A antenna supports single channel operation

▪ Supports up to 12 hours of operation off a single full charge

▪ Can be operated with waterproof protective case

In the Box

1 x Radar Systems Zond Aero 500 GPR

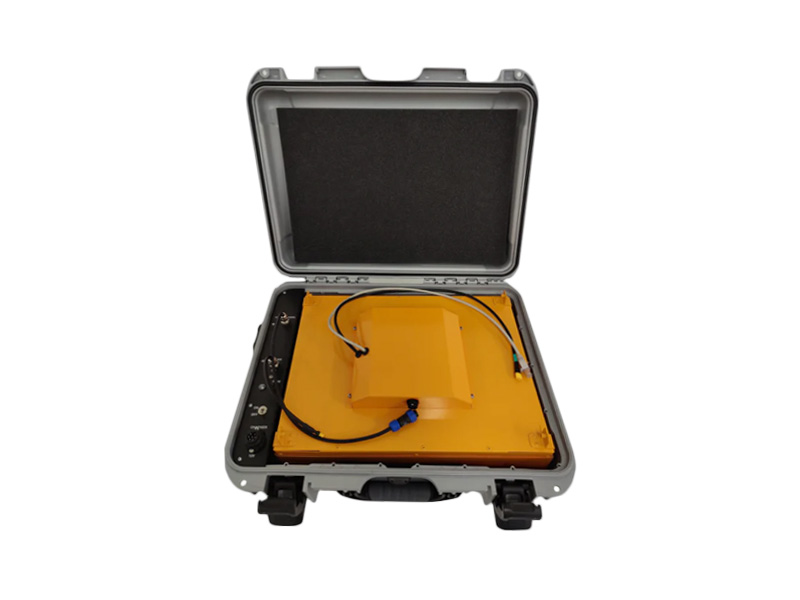

1 x Protective case

Specifications

Number of channels: 1
Frequency: 500 MHz
Performance: Single-unit GPR with built-in 500A antenna
The time range: 50-500 ns
Frequency of pulse repetition of transmitter: 113 KHz
Scan rate: 56
Samples per scan: 512
Filters: High pass Digital filter
Data transmission: through Ethernet or WiFi (in protective case) to PC
Dimension: 40x30x14.5 cm or 49x41x21 cm in protective case
Weight: 1.9 kg or 6.4 kg in protective case
Receiver sensitivity: 120 mcV
Receiver gain: 10 dB
Transmitter output: 150 V
Resolution and depth: 0.4 x 5-7 m*

Compatibility

DJI M300
DJI M600
