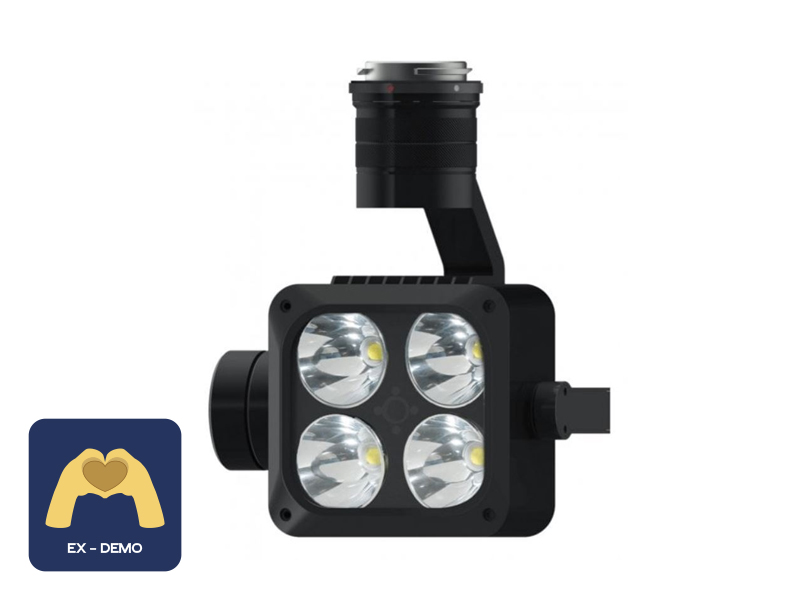

Wingsland Z15 Gimbal Spotlight

Item Code: DJI-WL-Z15

The Wingsland Z15 is a bright, 3-axis stabilized gimbal spotlight with high power beads. Powered by DJI SkyPort, it has an operating range of up to 150 m and can be easily integrated onto DJI Matrice 200 Series V1 and V2 drones, lighting the space at night or in lowlight conditions for users in firefighting, emergency response, law enforcement and beyond.

  • Supports Dual Intelligent Protection
  • Downward Gimbals
  • 150 m Max Range
  • Max Power 48 W

  • Switch between
    Always on, Flashing, and SOS modes for different environments and applications.


    Air Cooling System
    The built-in air-cooling system prevents the spotlight from overheating by constantly dissipating heat.


    Intelligent Protection
    The Wingsland Z15 is protected against overheating. The system will automatically adjust when the internal temperature exceeds 90℃.


    Supports Dual Downward Gimbals
    The Wingsland Z15 can be used with DJI Zenmuse payloads on DJI aircraft that include a dual-downward gimbal, helping to illuminate operations.





    General Specifications

    Product Name WINGSLAND Z15 Gimbal Spotlight

    Port Type DJI SkyPort

    Dimensions 100 x 110 x 150 mm

    Weight 500 g

    Rated Power 48 W


    LED Light Beads

    Voltage 6 V

    Power 40 W Luminous Flux 10200 lm

    FOV 15°

    Operating Range 150 m

    Area Coverage 1863 m² @ 120 m; 323 m² @ 50 m

    Illuminance 4 lux @120m; 11 lux @ 60 m; 47 lux@30 m


    Gimbal

    Angular Vibration Range ±0.02°

    Mount Detachable

    Controllable Range Pitch: -90° to +90°, Yaw: ±170°

    Max Control Speed Pitch: 60°/s, Yaw: 60°/s


    Temperature Parameters

    Operating Temperature -10 ℃ to 50 ℃

    Storage Temperature -20 ℃ to 60 ℃


    COMPATIBLE PRODUCTS
    DJI Matrice 200 Series, Matrice 200 Series V2
