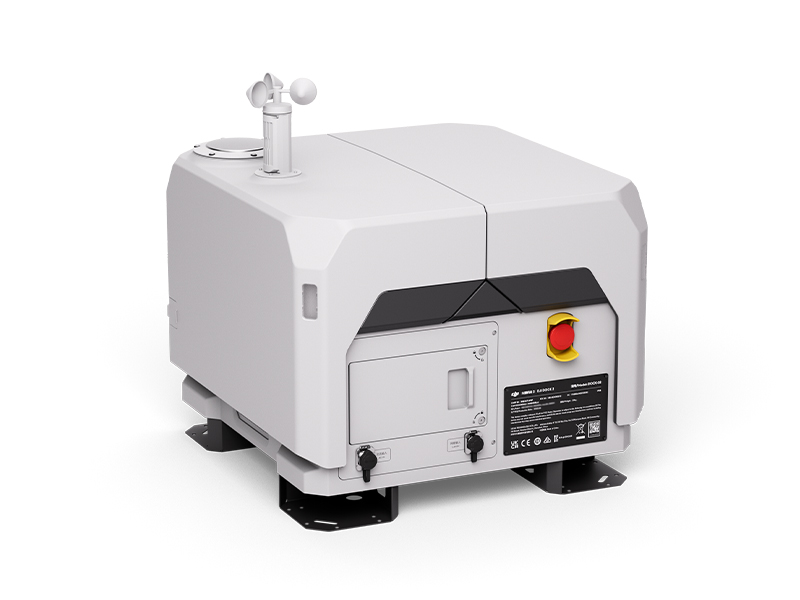

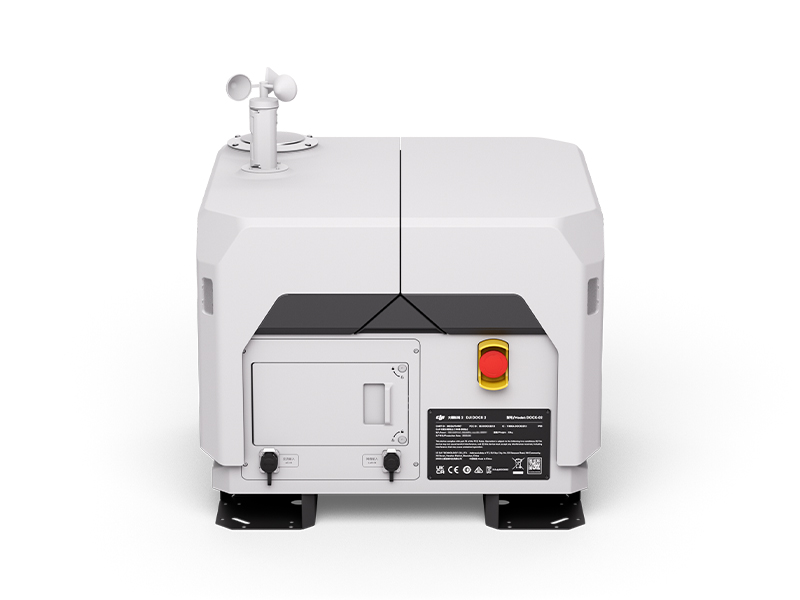

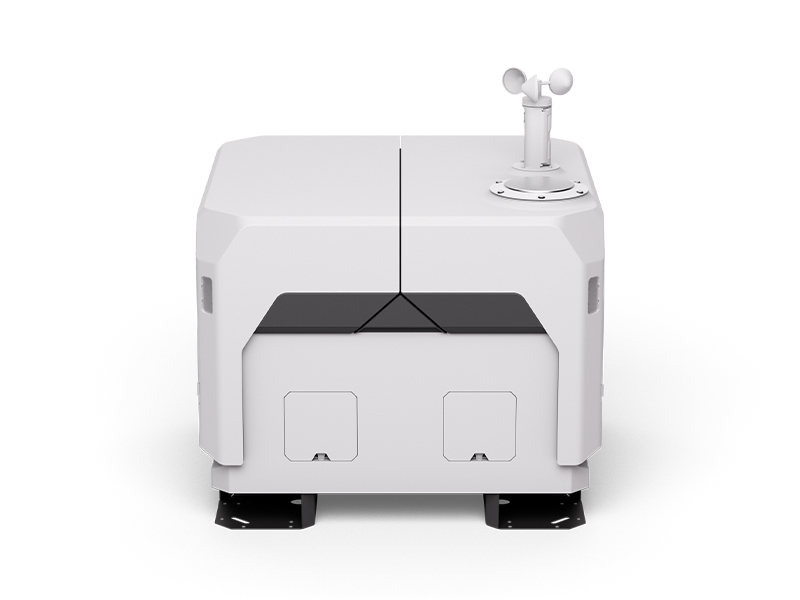

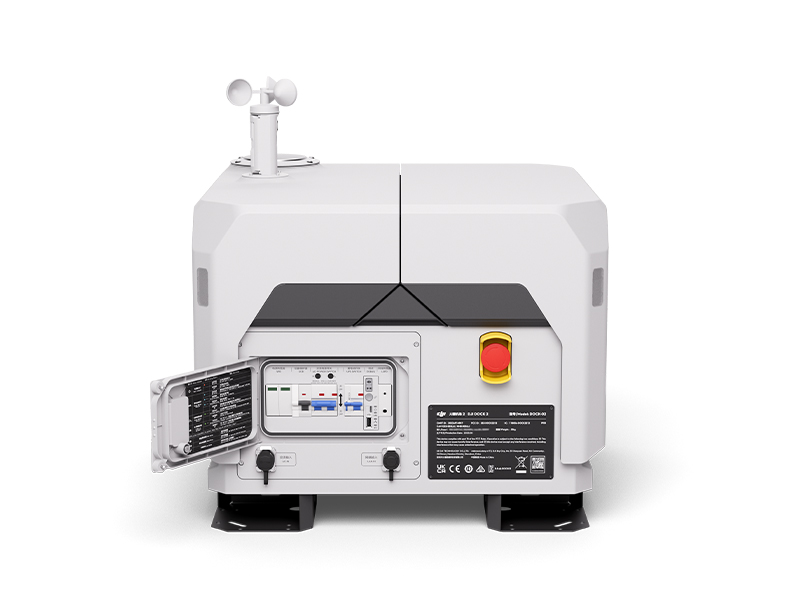

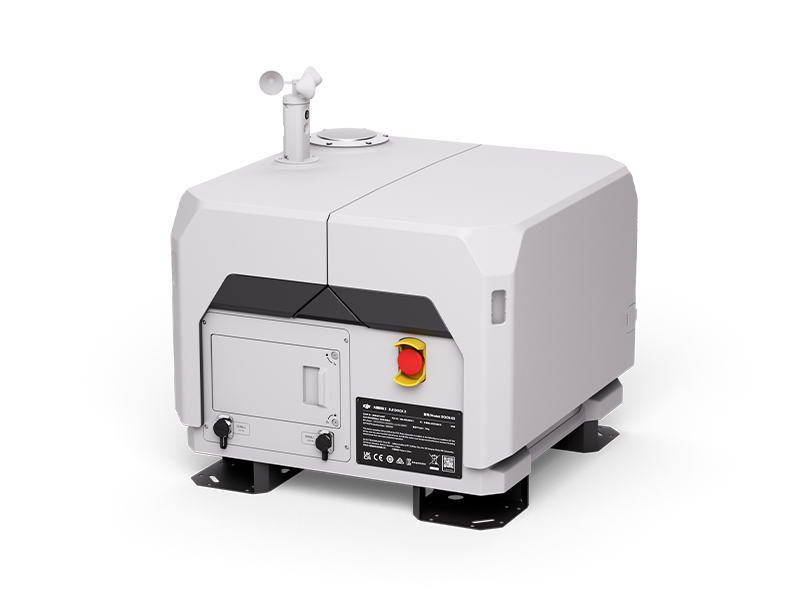

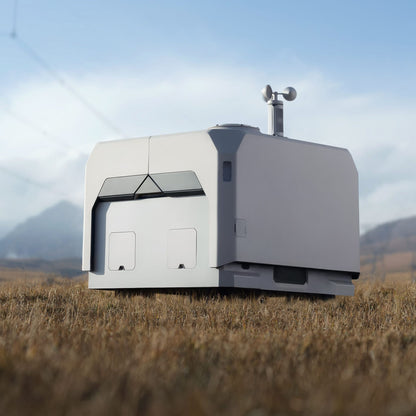

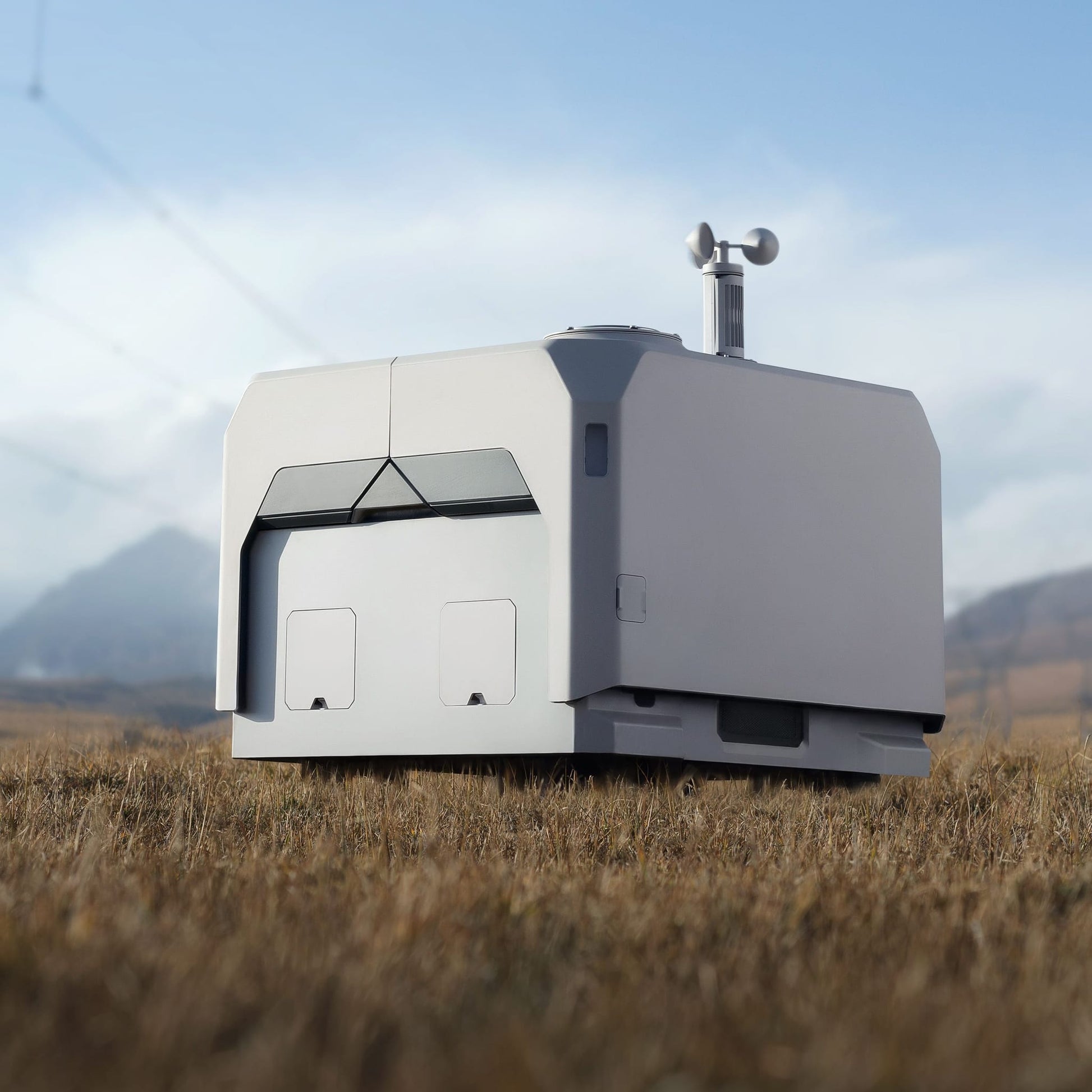

DJI Dock 2
`

DJI Dock 2

Item Code: DJIDOCK2

Easy Deployment, Ready to Go

Key Features:
• Lightweight + Easy to Deploy
• Matrice 3D Series Drone Integration
• Task Automation

Overview

Take your RPAS operations to the next level with DJI Dock 2. This revolutionary drone in a box solution completely eliminates the requirement of an on site drone operator for seamless automated operations. With its compact design, the Dock 2 boasts reduced footprint with a 35 kg unit size while providing extensive coverage with a 10km flight radius, greatly increasing operational efficiency and versatility.

Paired with Matrice 3D series, specifically engineered for DJI Dock 2, and DJI FlightHub 2 software, Dock 2 supports high precision surveying, mapping, security, inspection missions and many more.

Key Features

Compact design optimised for easy Dock deployment

▪ Seamless integration with DJI Matrice 3D Series

▪ Improved environmental monitoring and advanced intelligent safety

IP55 waterproof and dustproof rating

▪ Automated flights and mission execution with FlyTo tasks

▪ Seamless integration with advanced Matrice 3D Series drone solutions

Cloud-based intelligent functions

▪ Extended third-party payload and software support

Watch the Reveal

Product Details

  • Matrice 350 RTK - Mission Ready | Best Price Guarantee at D1 Store Australia

Ready to Deploy

Designed based on the feedback of first-generation DJI Dock users, DJI Dock 2 presents a new drone-in-box solution in a previously unimaginable form factor.

With a heavily reduced physical footprint of 0.34m2, Dock 2 weighs just 34kg, 68% lighter compared to the original DJI dock and deployable by just two people. Plus, with efficient site evaluations, site selection can be completed in a mere 12 minutes, assisting rapid deployment.

Matrice 3D Series

DJI Dock 2 integrates seamlessly with Matrice 3D Series, with both drone and dock engineered specifically to maximise the capabilities of the other.

Matrice 3D
4/3 CMOS Camera w. Mechanical Shutter • 56X Hybrid Zoom Camera

Matrice 3TD
Infrared Imaging Camera • 1/1.32" 48MP CMOS Camera • 56X Hybrid Zoom Camera

  • Matrice 350 RTK - Built Tough | Best Price Guarantee at D1 Store Australia
  • Matrice 350 RTK - Far Away Flying | Best Price Guarantee at D1 Store Australia

Small Box, Big Potential

With powerful Cloud-based operations at its core, DJI Dock 2 enables a plethora of applications including Cloud Mapping, automated Flight Routes, AI Spot-check and FlyTo Tasks all with remote operation.

On site and need to take over? Manually control operations with the DJI RC Pro Enterprise controller.

Automated Efficiency

DJI Dock 2 is built to support automated operations that improve efficiency, eliminate the need for on-the-ground pilots and ultimately reduce costs.

A take-off time of just 45 seconds, and rapid drone charging to 90% in just 32 minutes allow you to complete multiple automated missions in succession for rapid data gathering and more.

  • Matrice 350 RTK - Versatile Functionality | Best Price Guarantee at D1 Store Australia

Endless Versatility

Dock 2’s drone-in-a-box RPAS solution provides an unprecedented value proposition to users across countless verticals.

Public Safety
Perform security patrols, monitor fire hot-spots, track subjects and more with Matrice 3TD.

Infrastructure Inspection
Dock 2 can be set up to perform routine inspections on solar panels, powerlines, railways, power plants and more.

Mapping and Modelling
Collect accurate, up-to-date data with M3D’s mechanical shutter and built-in RTK module.

Ecosystem Expansion

Extend the capabilities of DJI Dock 2 with seamless third-party payload integration for increased functionality to suit your specific needs.

Software
With DJI FlightHub 2, support for DJI TerraAPI and Cloud API, DJI Dock 2 can operate the way you want to achieve your mission goals.

  • Matrice 350 RTK - Power Your Mission | Best Price Guarantee at D1 Store Australia

Explore Matrice 3D Series

Shop Now >

Find the Right Enterprise Solution for You

Learn More >

Shop with Confidence

Australia's Leading Enterprise Dealer

Our Enterprise team are dedicated to providing you with the best service and price on all your DJI enterprise needs from RPAS to Payloads to Software. With our conveniently located enterprise hubs around Australia, our product specialists will be with you and your company every step of the way from finding the right drone to maintenance. Enjoy exclusive services with D1 Enterprise such as Rentals, Repairs, Training and Maintenance.

General
Total Weight 34 kg (without aircraft)

The actual product weight may vary due to differences in batch materials and external factors.
Dimensions Dock Cover Opened: 1228×583×412 mm (L×W×H)
Dock Cover Closed: 570×583×465 mm (L×W×H)

The above data does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm).
Input Voltage 100-240 V (AC), 50/60 Hz
Input Power
Max 1000W
Operating Temperature -25° to 45° C (-13° to 113° F)

When the ambient temperature is below -20° C (-4° F), the dock is in standby status, and the aircraft cannot perform flight tasks.
Ingress Protection Rating IP55
Number of Drones Accommodated 1
Max Allowable Landing Wind Speed 8 m/s
Max Operating Altitude 4000 m
Receiving Frequency of RTK Base Station Satellite Simultaneously receive:
GPS: L1 C/A, L2
BeiDou2: B1l, B2l, B3l
BeiDou3: B1l, B3l
GLONASS: L1, L2
Galileo: E1, E5B"
Positioning Accuracy of RTK Base Station Horizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)"


Charging Performance
Output Voltage 28 V DC
Charging Time 32 minutes

The data was measured when charging the aircraft (when powered off) from 20% to 90% in a 25° C (77° F) environment.
Video Transmission System 5 V, 3 A
9 V, 2 A
12 V, 2 A
Max output power per channel: 24 W


Video Transmission
Video Transmission System O3 Enterprise
Operating Frequency 2.4000-2.4835 GHz
5.725-5.850 GHz
Antenna Built-in 4 antennas, 2T4R, supports intelligent switching
Transmitter Power (EIRP) 2.4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC)
5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC)"


Air Conditioning System
Operating Voltage 28 V DC
Air Conditioning Type TEC Air Conditioning

Backup Battery
Battery Capacity 12 Ah
Output Voltage 12 V
Battery Type Lead-acid battery
Battery Life >5 hours

Measured with a fully charged backup battery in a 25° C (77° F) environment. ‌After a power outage, the dock does not support functions like aircraft charging, air conditioning, dock cover heating, and wind speed gauge heating. Always check malfunctions promptly.


Network Access
Ethernet Access 10/100/1000Mbps adaptive Ethernet port


Sensor
Wind Speed Sensor Supported
Rainfall Sensor Supported
Ambient Temperature Sensor
Supported
Water Immersion Sensor
Supported
In-Cabin Temperature Sensor
Supported
In-Cabin Humidity Sensor
Supported


Security Camera (External)
Resolution 1920×1080
Field of View (FOV) 151°
Auxiliary Light Auxiliary White Light


Security Camera (Internal)
Resolution 1920×1080
Field of View (FOV) 151°
Auxiliary Light Auxiliary White Light


Lightning Protection
AC Power Port 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements
Ethernet Port 10 kA, meets EN/IEC 61643-21 Category C protection level requirements


Supported Software
Applications DJI Pilot 2 (connects to DJI Dock 2 via DJI RC Pro Enterprise for deployment and commissioning)
Cloud Platform DJI FlightHub 2 (supported by default)
Third-party cloud platforms (accessed through DJI Cloud API)"


Expansion Capability
Open Protocol DJI Cloud API
Edge Computing Supports data communication with external switches
