DJI Transmission (High-Bright Monitor Combo)
`

DJI Transmission (High-Bright Monitor Combo)

Item Code: DJIRS3PROP5

Professional Video Transmission Solution

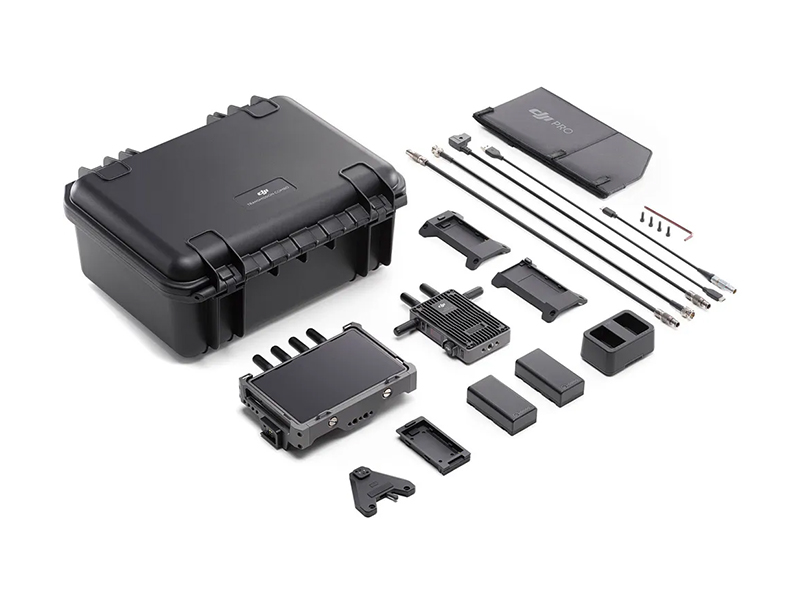

High-Bright Monitor Combo Includes:
• DJI Video Transmitter
• DJI High-Bright Remote Monitor
• Safety Case + Accessories

Your Purchase Includes:
Free Shipping Within Australia
Local Lifetime Support

AUD $3,149.00

Overview

The product of years of industry knowledge, research and development, the innovative new DJI Transmission video transmission system is designed to bring new levels of creative autonomy to film and broadcast professions.

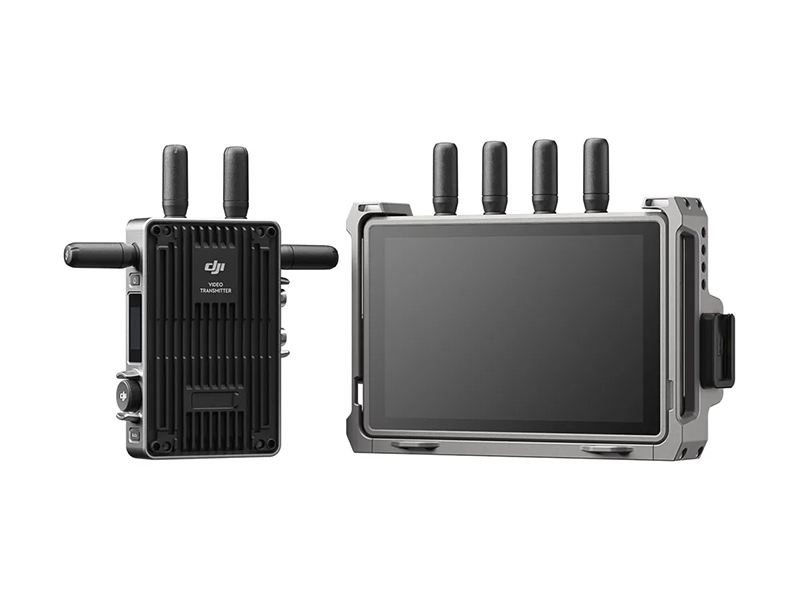

The High-Bright Monitor Combo is made up of two innovative components; the DJI Video Transmitter and the DJI High-Bright Remote Controller. Combined, these two components provide an unparalleled video transmission solution that can be applied to a wide variety of professional filming and broadcasting scenarios.

What devices are compatible with DJI Transmission? Will it work with my camera?

DJI Transmission is compatible with a virtually endless number of cameras and devices. With support for both SDI and full-size HDMI inputs, the DJI Video Transmitter can be mounted and used with practically all modern DSLRs, mirrorless and cinema cameras. Compatibility ranges from smaller solutions like the BlackMagic Pocket Cinema series all the way to large-scale cinema solutions including the ARRI Alexa and DJI Inspire 3.

What's new?

▪ Strong, secure video transmission at 1080p/60fps

▪ Incredible maximum video transmission distance of up to 6 KM

▪ Extensive support for DJI Pro accessories including DJI Ronin 2, RS3 Pro and so many more!

Highly accessible wireless camera controls via the included DJI High-Bright Remote Monitor

Light and compact for easy mounting onto professional equipment including sliders, jibs, car mounts and DJI Ronin gimbals

▪ Easy viewing with up to 1500 nits of brightness on the DJI High-Bright Remote Monitor

Watch the Reveal

Features

  • DJI Transmission - Next-Level Video Transmission | Best Price Guarantee at D1 Store

Next-Level Video Transmission


Experience high-quality, low-latency video transmission like never before with the new DJI Transmission video transmission system. Powered by DJI’s groundbreaking O3 Pro transmission technology, DJI Transmission delivers 1080p/60fps video at a stellar transmission range of up to 6KM!

Reliable Transmission, Everytime


O3 Pro features automatic frequency hopping, allowing the transmitter to jump between 2.4 GHz, 5.8 GHz and DFS channels for reliable transmission regardless of environment.

Plus with the power of DJI O3 Pro, a single DJI Video Transmitter can be used with multiple receivers simultaneously, opening up new possibilities on large film sets.
  • DJI Transmission - Reliable Transmission, Everytime | Best Price Guarantee at D1 Store
  • DJI Transmission - Industry-Leading Remote Monitor | Best Price Guarantee at D1 Store

Industry-Leading Remote Monitor


DJI Transmission features the incredible DJI High-Bright Remote Monitor, first introduced alongside the DJI Ronin 4D. This all-in-one remote monitor not only receives and displays HD footage via its ultra-bright 1500 nit touchscreen display, but can also be used to capture footage, playback and more!

Wireless Controls


The DJI High-Bright Remote Monitor provides so much more than a standard video reference monitor. With access to camera controls and settings via Mirror Control Mode, intuitive camera controls via Motion control, plus custom LUT support, the High-Bright Remote Monitor is also an all-in-one reference monitor and creative solution.
  • DJI Transmission - Wireless Controls | Best Price Guarantee at D1 Store
  • DJI RS3 - Intelligent Shooting | Best Price Guarantee at D1 Store

Part of the Family


As the latest member of the DJI Ronin family, DJI Transmission integrates seamlessly with professional creative tools including the DJI Ronin 2, DJI RS3, DJI Master Wheels and more for a seamless filming experience.

Pair DJI Transmission with a Ronin series gimbal for newfound stability and creative control and use DJI Master Wheels or Ronin 4D Hand Grips for precise movement and setting controls.

Power Your Creativity

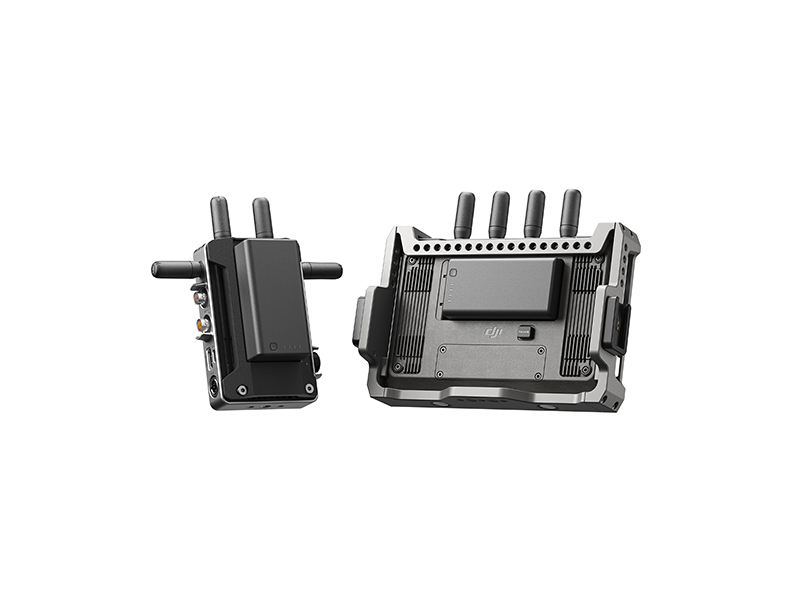

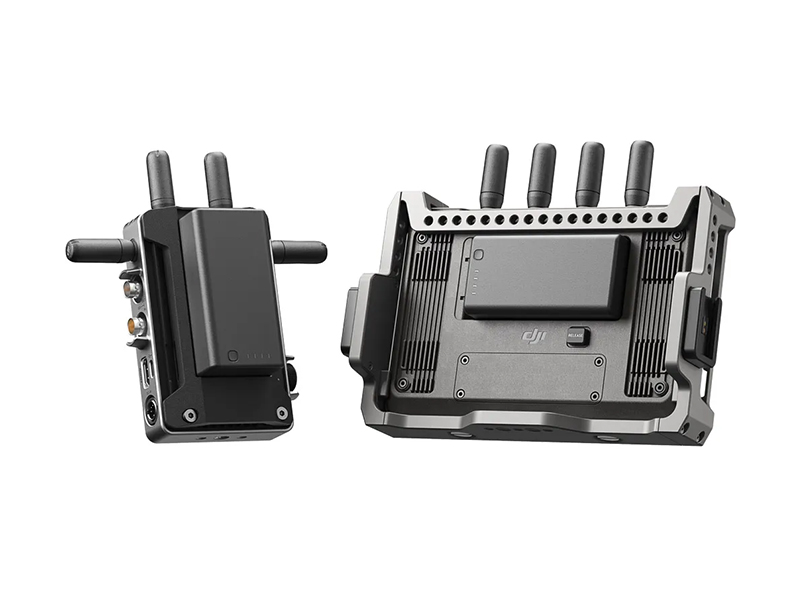

With support for multiple power solutions, the DJI Video Transmitter can be powered your way via independent power sources or your pre-existing solutions.

The transmitter natively supports DJI WB37 batteries and can be adapted to support NP-F batteries, larger V-mount batteries and direct DC-IN.

  • DJI Transmission - Power Your Creativity | Best Price Guarantee at D1 Store
  • DJI Ronin 4D | Best Price Guarantee at D1 Store
  • DJI Ronin 4D
  • From $10,149

Check out the DJI Ronin 4D


Experience the power of DJI Transmission natively with the DJI Ronin 4D, a game-changing new all-in-one cinema solution. Combining DJI’s popular Ronin stabilisation technology with a full-frame Zenmuse sensor, LiDAR autofocus, wireless video transmission and so much more, Ronin 4D does it all!

Explore DJI RS3 Pro
Accessories

Shop Now >

Explore Ronin 4D Accessories

Shop Now >

Shop with Confidence.

Australia's First & Only Authorised DJI Retail Store

Our team are dedicated to providing you with the best service and price on all your DJI products from Consumer to Enterprise. With our conveniently located stores around Australia, our product specialists will guide you through which drone will be perfect for you and provide all the tips and tricks needed for a safe and enjoyable flight. Take advantage of our additional services including Rental, Trade-In, New Pilot Experience and Repairs.

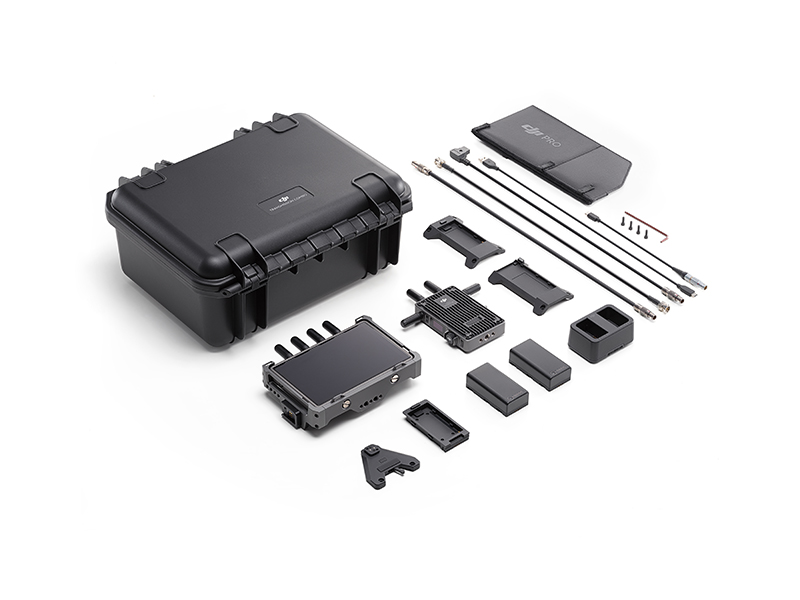

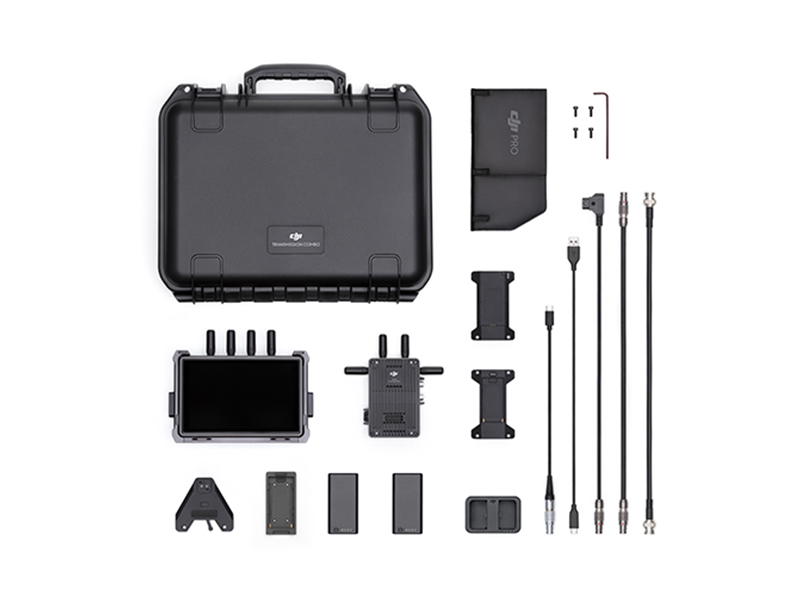

Product Grid
Video Transmitter

Video Transmitter

x 1

High-Bright Remote Monitor

High-Bright Remote Monitor

x 1

Remote Monitor Hood

Remote Monitor Hood

x 1

WB37 Battery Adapter (TX)

WB37 Battery Adapter (TX)

WB37 Intelligent Battery

WB37 Intelligent Battery

x 2

WB37 Battery Charging Hub (USB-C)

WB37 Battery Charging Hub (USB-C)

x 1

NP-F Battery Adapter (TX)

NP-F Battery Adapter (TX)

x 1

NP-F Battery Adapter (RX)

NP-F Battery Adapter (RX)

x 1

USB-C to LEMO Power Cable

USB-C to LEMO Power Cable

x 1

RS Gimbal Mounting Plate

RS Gimbal Mounting Plate

x 1

USB-C Cable

USB-C Cable

x 1

SDI Cable

SDI Cable

x 1

DC Power Cable

DC Power Cable

x 1

DC to P-TAP Power Cable

DC to P-TAP Power Cable

x 1

Installation Toolkit

Installation Toolkit

x 1

Protector Case

Protector Case

x 1

Ronin Video Transmission Antenna

Ronin Video Transmission Antenna

x 2

DJI Transmission
Weight Video Transmitter Weight: Approx 350 g / 0.77 lbs (excluding antennas)
High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas)
Dimensions
Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)
Operating Frequency Non DFS Frequency Band:
2.400-2.484 GHz
5.150-5.250 GHz
5.725-5.850 GHz

DFS Frequency Band:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
Transmitter Power (EIRP) 2.400-2.484 GHz:
<33 dBm (FCC)
<20 dBm (SRRC/CE/MIC)

5.150-5.250 GHz:
<23 dBm (FCC/SRRC/MIC)

5.250-5.350 GHz:
<30 dBm (FCC)
<23 dBm (SRRC/MIC)

5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC)
<23 dBm (CE/MIC)

5.725-5.850 GHz:
<33 dBm (FCC/SRRC)
<14 dBm (CE)
Max Bandwidth 40 MHz
Max Bitrate 50 Mbps
Power Consumption 11 W
Power Supply Voltage 6 to 18 V
Output Voltage Power output port: 6 to 18 V
Operating Time Video Transmitter: 3 hours 40 minutes[1]
High-Bright Remote Monitor: 2 hours[1]
Input Video Format 3G SDI: YCbCr 4:2:2 10-bit
HDMI RGB 4:4:4
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/59.94/60fps
720p: 50/59.94/60fps
Output Video Format 3G SDI: YCbCr 4:2:2 10-bit
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/59.94/60fps
720p: 50/59.94/60fps
Input Audio Format SDI embedded, HDMI embedded
Output Audio Format PCM
Video Transmission System O3 Pro
Max Video Bitrate 50 Mbps
Video Transmission Latency 68 ms[2]
100 ms[3]
Video Coding Format H.264
Max Transmission Distance 6 km (FCC)[4]
4 km (CE/SRRC/MIC)[4]
Operating Temperature -10° to 45° C (14° to 113° F)
Mirror Control Mode Supported Camera Models ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
Notes
1. Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.
2. Measured when shooting 1080p/60fps video.
3. Measured when shooting 1080p/24fps video.
4. In open environments free of obstructions or interference.
