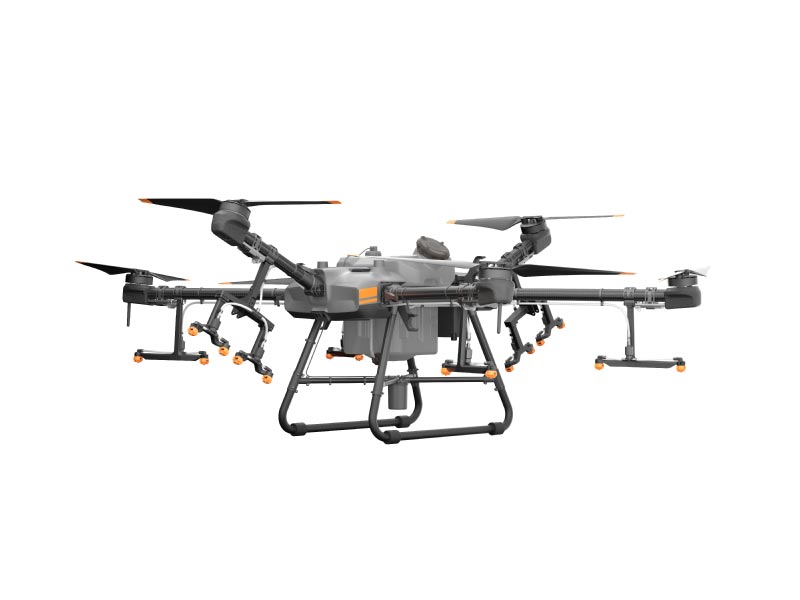

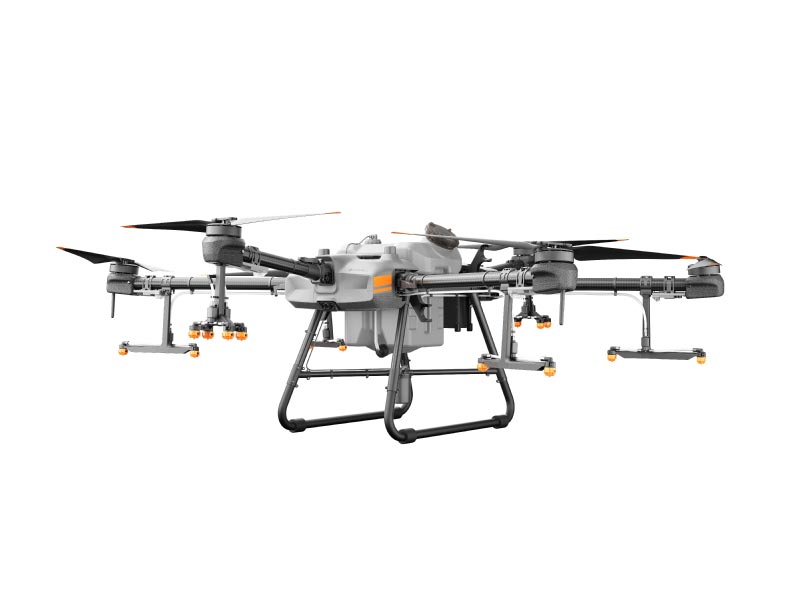

DJI AGRAS T30 Ready To Fly (3 Pcs Batteries)
`

DJI AGRAS T30 Ready To Fly (3 Pcs Batteries)

Item Code: AGRAS-T30-SET1

Contact For Pricing
(03) 9288 7859
enterprise@d1store.com.au

The DJI AGRAS T30 is the new standard for digital agriculture solutions. Equipped with a 30-litre spray tank and able to cover 40 acres per hour, the DJI AGRAS T30 is the ideal solution to your agricultural needs.

Click Below to Get In Touch With An Expert

DJI Agras T30 (Ready To Fly Full Set)

The DJI AGRAS T30 is the new standard for digital agriculture solutions. Equipped with a 30-litre spray tank and able to cover 40 acres per hour, the DJI AGRAS T30 is the ideal solution to your agricultural needs.

D1 Store is an Official DJI Enterprise Distributor who specialises in DJI Enterprise Drones, Gimbals, Payloads, Software, Services and Maintenance. With multiple enterprise hubs located across Australia, D1 proudly serves an extensive range of industries to great success with excellence in pricing, product support, rentals, repairs, and maintenance. Our dedicated enterprise team will be there with your every step of the way to ensure your RPAS fleet is built for success!

Please do not hesitate to contact our team for a free consultation on enterpise@d1store.com.au or call us on (03) 9288 7859.

Efficient and Effective

An Industry Leader

DJI AGRAS T30 is designed for efficient, high-impact operation with a 30-litre spray tank and a high-pressure 16 nozzle design capable of spraying up to eight litres per minute at maximum speed. With an improved maximum spray width of 9 metres, the DJI AGRAS T30 can cover up to 40 acres per hour.

Eliminate Blind Spots

Spherical Radar System

Obstacle avoidance protocols maintain safety during flight, even around obstructions. Omnidirectional sensors pair with adaptive flight controls to ensure safe flying.

Improved Awareness

Dual FPV Cameras

Equipped with front and back FPV cameras allowing for mid-flight status updates, DJI AGRAS T30 keeps you in control. A built-in searchlight supports visibility during nighttime operations.

Durable

IP67 Water Protection

Featuring IP67 water protection, DJI AGRAS T30 is safe from dust and water contaminants within its fully enclosed control module structure.

Improved Batteries

Continuous Operation

The DJI AGRAS T30 features newly improved Intelligent Flight Batteries that fully charge in just 10 mins. Streamline your operation with just two batteries and one charging station. Intelligent Flight batteries are covered by DJI warranty for up to 1,000 charges.

Multi-functional

Spreading System

Featuring a 40L capacity and maximum spread width of 7 meters, the DJI AGRAS T30 spreading system is capable of a 1 ton hourly spreading capacity.


Foldable

Compact Storage

The DJI AGRAS T30 can be folded using a clever snap-locking system, reducing drone size by 80%.

Intelligent

Autonomous Operation

The DJI AGRAS T30 intelligently plans flights, optimising the route for each operation.

General FAQ

What is the DJI AGRAS T30’s flight performance?

Maximum flight altitude: 30 metres

Maximum communication range: 5,000 metres

Maximum flight speed: 10 m/s

Hovering time: 20.5 minutes (at a takeoff weight of 36.5 kg)


What is the operational efficiency of the DJI AGRAS T30?

On average, the DJI AGRAS T30 can spray 16.5 acres per hour with a dosage of 4.8 L/acre, spraying width of 5m, speed of 5m/s, and height of 2.5m.


Can multiple drones be controlled by one DJI AGRAS T30 remote controller?

Up to 3 drones can be controlled by one DJI AGRAS T30 remote controller.


Does the DJI AGRAS T30 require out of the box assembly?

No, only drone activation is required out of the box.


What is the minimum safe distance for personnel during take-off and landing?

10 metres.


Spraying System

What is the pump pressure range of the DJI AGRAS T30?

2-4.5 kg/cm2.


What is the DJI AGRAS T30’s maximum spraying volume per minute?

SX11001VS: 7.2L/min

SX110015VS: 8L/min

TX-VK4:3.6 L/min


Can the DJI AGRAS T30’s nozzles be exchanged with those of the T16 and T20?

The DJI AGRAS T30 supports the following nozzle models:

SX11001VS (Standard)

SX110015VS (Optional)

Fruit Tree mode: TVK04 (Optional)


Radar

What features does DJI AGRAS T30’s spherical omnidirectional obstacle avoidance radar support?

1. It supports omnidirectional obstacle avoidance in the horizontal and overhead directions.

2. It supports automatic obstacle avoidance in the horizontal direction.

3. It supports precise height maintenance in the downward direction for terrain adaptation during flight.


Is the T30's spherical omnidirectional obstacle avoidance radar exchangeable with that of the T20, T16, or T10?

The T30 omnidirectional digital radar is exchangeable with that of the T10, but not the T20 or T16.


What is the obstacle avoidance distance of the T30?

The T30 will start to decelerate when its radar detects an obstacle with a diameter above 1 cm that is 15 meters away. Then, it will start to detour around the obstacle when it is about 6 meters away, or hover with the tip of the blade about 2.5 meters away from the obstacle.


What features does the T30's upward-looking radar support?

The upward-looking radar can detect obstacles above the drone in real-time and hover precisely to avoid obstacles when rising.


What is the detection angle and distance of the T30's upward-looking radar?

Perceivable distance: 1.5 to 10 meters.

FOV:80°.


Does the T30 support obstacle avoidance when flying over complex mountainous terrain?

Yes.


Can users adjust the obstacle avoidance sensitivity and side detection distance of the T30's radar-based on their individual needs?

Yes. Users can set the obstacle avoidance sensitivity in the app based on their actual needs.


Fruit Tree Mode

Does the T30 support fully autonomous operation in Fruit Tree mode?

Yes. After the orthoimage of the operation area is obtained with the Phantom 4 RTK, map the operation area with DJI Terra, which supports the Fruit Tree mode. After the operation area is selected, the AI system will automatically identify the properties of crops and obstacles in the area and automatically generate a 3D operation route with six optional route planning and spraying combinations. After downloading the 3D route, the agricultural drone can carry out the operation.

In which scenarios should Fruit Tree mode be used?

Fruit Tree mode not only allows normal operation in flat orchards, but also applies to the operations in mountainous areas and slopes with large changes in height, such as tea plantations, orange orchards, and peach orchards located in mountainous regions.


What computer configuration is recommended for Fruit Tree mode?

DJI Terra requires Windows 7 or later (64-bit).


How does the T30 perform branch targeting?

The form of the T30 can be changed by adjusting the arms for branch targeting, allowing the sprayed droplets to penetrate fruit trees along their branches.


How does T30's branch targeting technology improve its performance?

The T30's branch targeting technology allows the liquid to flow down along the branches in order to penetrate the fruit tree canopy, thus increasing the application amount on both the front and back of the leaves. In addition, the spraying system adopts a new plunger pump with a maximum flow rate of 8 L/min and TX-VK 04 nozzles for small droplets and high flow.


What operating modes does T30's branch targeting technology support?

You can use branch targeting in all the operation modes of the T30, but we only recommend it for orchard spraying operations in the Fruit Tree mode 3.0.


Can T30 work on the plots planned for the T20, T16, and T10?

Yes. Please check the operating parameters such as safety distance, track spacing, and flight speed before operation.


Battery and Charger

How do you enable and use the branch targeting technology?

To adjust the arms and change the form of the T30, please contact your local dealer.


Is T30's smart flight battery exchangeable with those of T20, T16, and T10?

No.


How long is the service life of the T30's battery?

The T30 smart flight battery is warrantied for 1,000 cycles, with charging/discharging of at least 75% counted as one cycle.


Can the T30 smart charging manager be used to charge the batteries of the T20, T16, and T10?

No.


How long does the T30 smart charge manager need to charge the T30's smart flight battery?

When two AC power lines are connected, it can fully charge a battery in 9-12 minutes.

When one AC power line is connected, it can fully charge a battery in 18-25 minutes.

The smart charge manager dynamically adjusts the charging power based on the environment, so the actual charging time will vary.


Variable-frequency charging station

How long does the D9000i variable-frequency charging station take to charge the T30 smart flight battery?

It can fully charge a battery in 9-12 minutes. The variable-frequency charging station adjusts the charging power dynamically based on the environment, so the actual charging time will vary.


What fuel does the D9000i variable-frequency charging station use?

92# gasoline is recommended.


Does the D9000i variable-frequency charging station support 220V AC output?

It supports 220V AC output with a maximum power of 300W.


Can the D9000i variable-frequency charging station charge the smart flight batteries of the T20, T16, and T10?

No.


Does the D9000i variable-frequency charging station support a one-button startup?

Yes. Connection to the smart flight battery is required.


What is the working fuel consumption of the D9000i variable-frequency charging station?

About 0.6 L per T30 smart battery in of cyclic charging

*Charged from 30% to 95%


Spreading system

What models are supported by the T-Series Spreading System 3.0?

It supports the T30 and T10, which are equipped with 40L and 12L tanks, respectively.


What solid particles can be distributed with the T-Series Spreading System 3.0?

Solid dry particles with a diameter of 0.5-5 mm can be spread.


What are the protective ratings of the T-Series Spreading System 3.0?

The Spreading System 3.0 has IP67 water resistance and improved resistance to corrosion and abrasion.


Does the T-Series Spreading System 3.0 provide an increased flow rate?

Compared to the Spreading System 2.0, the maximum bin opening area of the Spreading System 3.0 has increased by 38% (from 32.3cm² to 44.6cm²).


Has the tank empty detection function of the T-Series Spreading System 3.0 been improved?

In Spreading System 3.0, the structure and algorithm of the tank empty detection device were optimized to improve the detection accuracy and timeliness.


Is it easier to load materials into the T-Series Spreading System 3.0?

The T30's Spreading System 3.0 features a flip-top tank with a larger opening for easier loading.


Remote control

How long is the battery life of the T30's remote control?

The remote control supports both internal and external batteries and can operate for 2 hours with the former and another 2 hours with the latter.


Is the remote control of the T30 exchangeable with those of the T20, T16, or T10?

The remote control of the T30 is exchangeable with that of the T10, but not with those of the T20 and T16.


Is the RTK high-precision positioning module standard for the T30 remote control?

Yes. The external RTK high-precision positioning module provides the remote control with high-precision positioning information precise to the centime meter. This allows accurate work planning and improves operation efficiency and flight safety.


Does the T30 remote control provide upgraded protection?

The T30 remote control has a protective case for the external battery, and the keys are dust-proof for better protection.


Can the front and rear views of the T30's dual-channel real-time image monitoring system be displayed simultaneously?

Yes.


Smart Agricultural Cloud Platform

Can photos taken by the Phantom 4 RTK be reconstructed in the cloud?

Yes. Farm scenarios and the fruit tree scenarios can be reconstructed in the smart agriculture cloud platform. Please go to the official website for news about the launch time.


Can photos taken by the Phantom 4 Multispectrum Edition be reconstructed in the cloud?

Yes. The multispectral photos can be reconstructed in the smart agriculture cloud platform. Please go to the official website for news about the launch time.


With the Smart Agriculture Cloud Platform, is it possible to perform mapping and route planning without high-performance computers?

Yes, route planning can be performed on your mobile phone, tablet, or personal computer.
